Overview

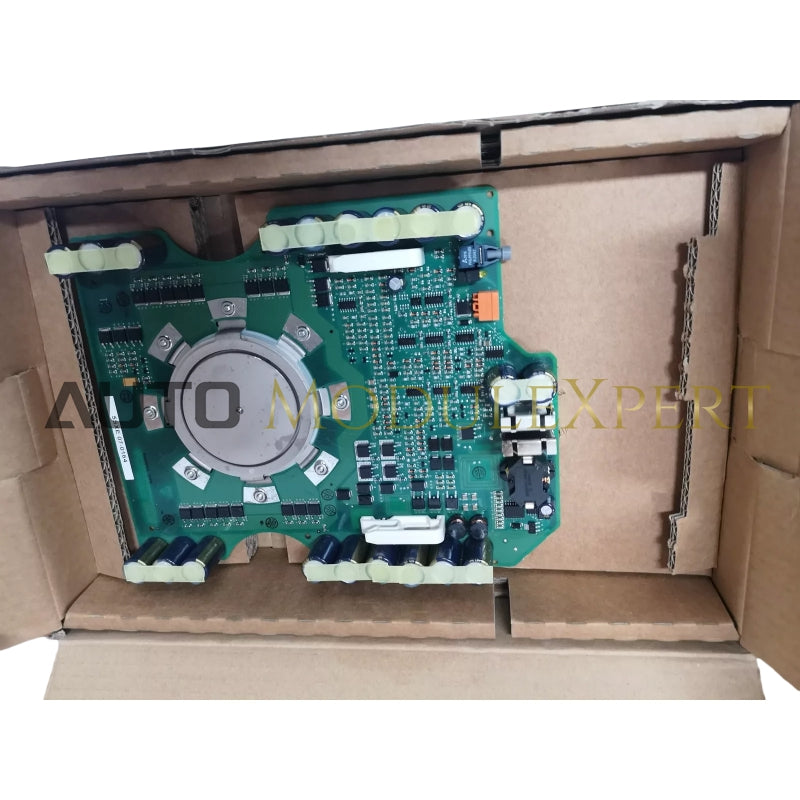

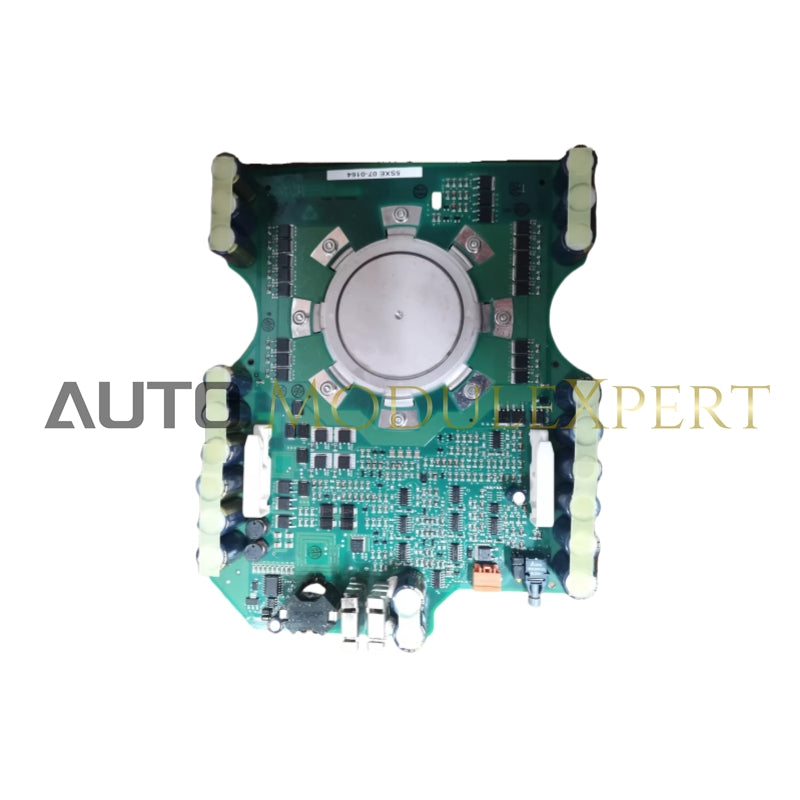

The ABB 5SHX 1060H0003 3BHB020538R0001 is an advanced IGBT (Insulated Gate Bipolar Transistor) module engineered for optimal performance and reliability in a variety of industrial applications. It is commonly used in power transmission, renewable energy systems, industrial automation, and transportation.

Specifications

• Product Type: IGBT Module
• Brand: ABB
• Application:
  • Power transmission and distribution
  • Renewable energy
  • Industrial automation
  • Transportation
• Model Number: 5SHX 1060H0003 3BHB020538R0001

Dimensions and Weight:

• Dimensions: 240mm x 61mm x 199mm
• Weight: 2.11 kg

Electrical Characteristics:

• Input Voltage: 120V AC/DC or 240V AC
• Output Capacity: Up to 6A (dependent on configuration)

Operating Conditions:

• Operating Temperature Range: -40°C to +85°C

Material:

• High-grade silicon and metal alloys for enhanced durability and performance

Certifications:

• CE
• UL
• ISO 9001

Communication Protocols:

• Supports advanced protocols for seamless integration into modern systems
