Description

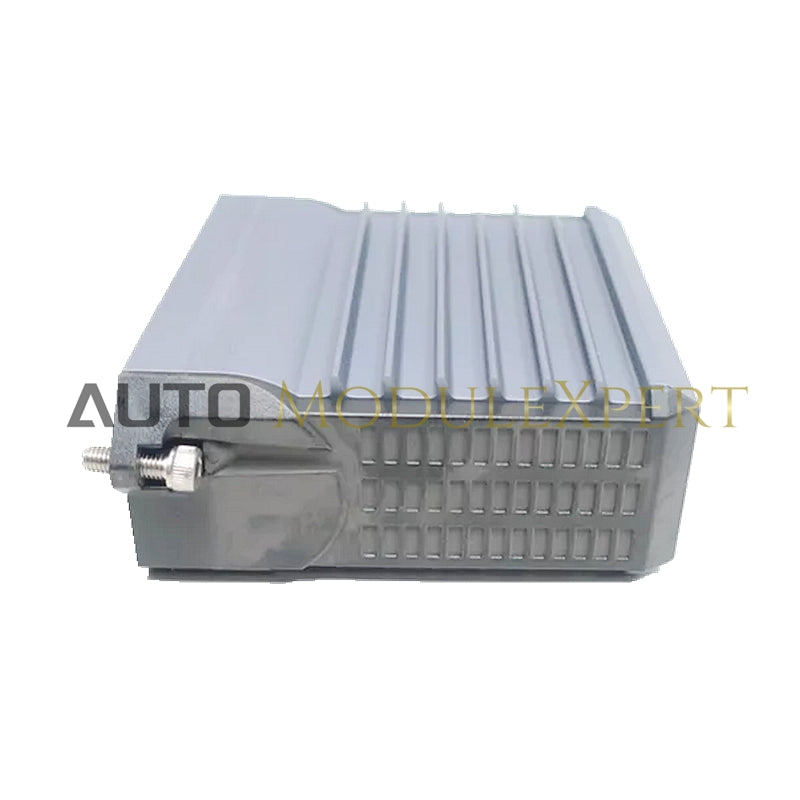

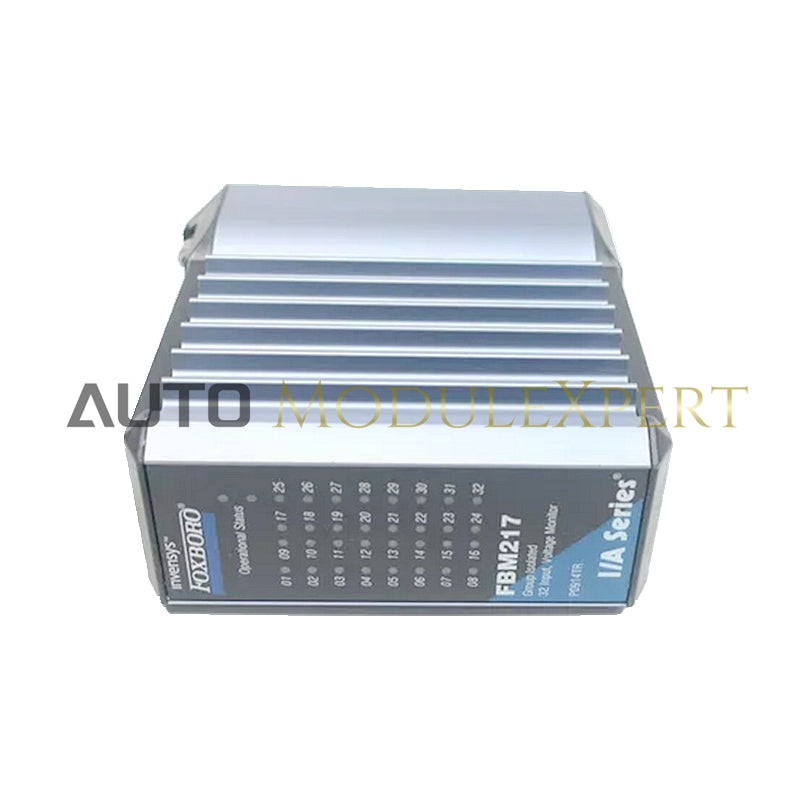

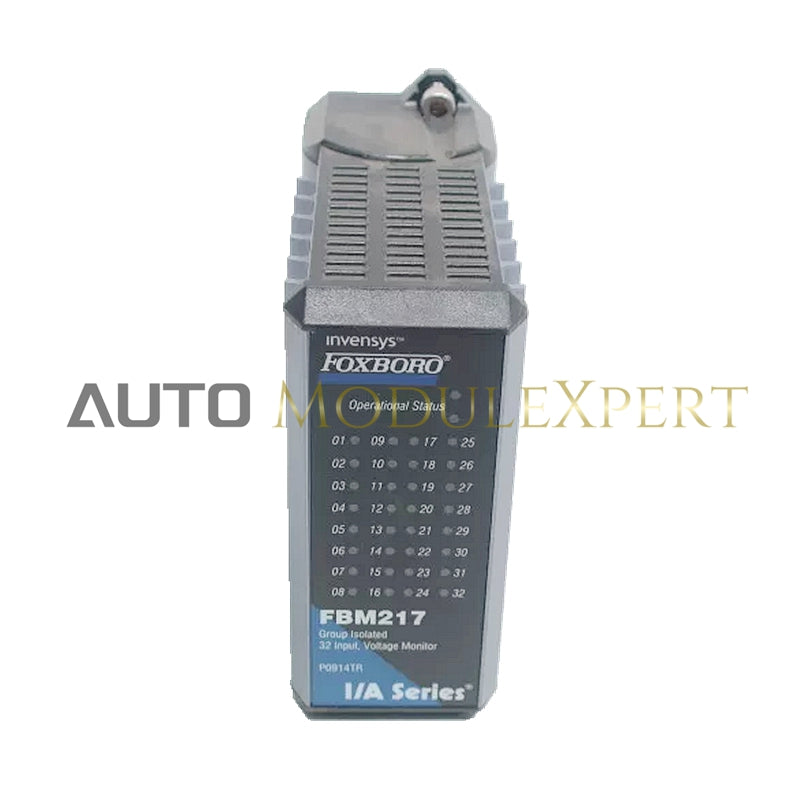

Discrete Input Module FBM217 P0914TR
The Discrete Input Module FBM217 P0914TR is designed for use with discrete field devices. It features 32 group isolated channels and offers configurable filtering options. The module operates with an input voltage range of 15 to 30 V DC.

General Information

• Model: Discrete Input Module FBM217 P0914TR

• Product Type: Discrete Input Module

• Channels: 32 group isolated channels

Specifications

• On-State Voltage: 15 to 30 V DC

• Off-State Voltage: 0 to 5 V DC

• Current: 2.2 mA (typical) at 30 V DC

• Source Resistance Limits:

• On-State: 1 kΩ (maximum) at 15 V DC

• Off-State: 100 kΩ (minimum) at 30 V DC

• Filter/Debounce Time: Configurable (No Filtering, 4, 8, 16, or 32 ms)

• Maximum Pulse Count Rate: 250 Hz
