Description

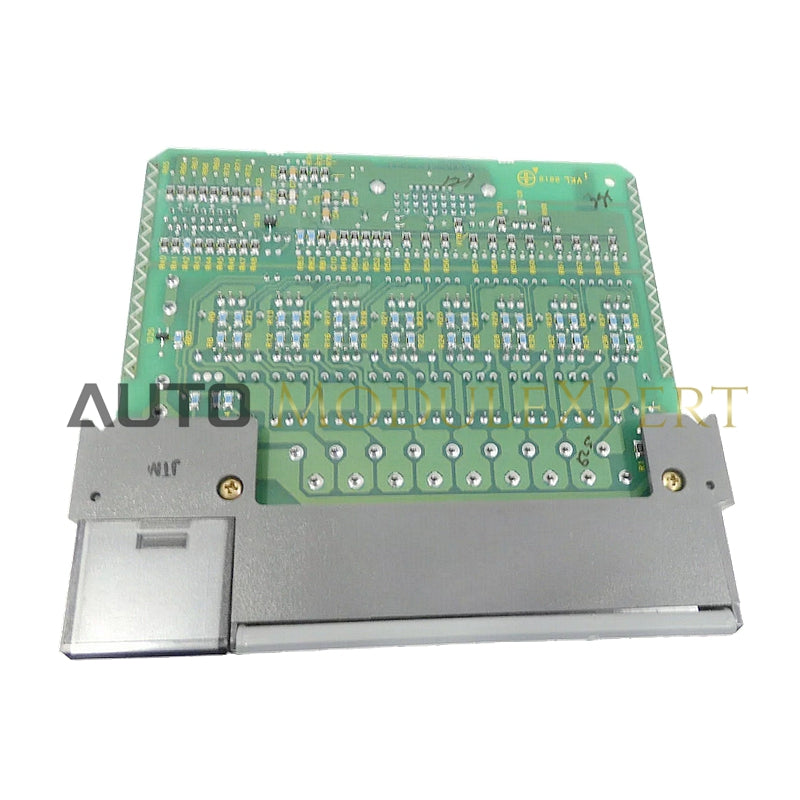

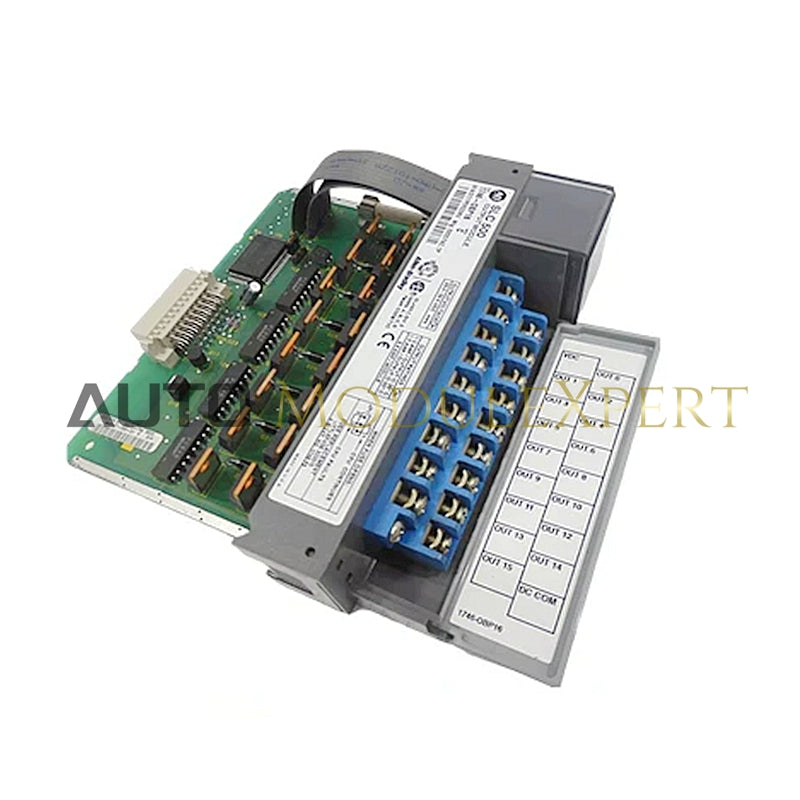

Allen-Bradley 1746-OBP16 is a SLC 500 Digital DC Output Module offering 16 channels for controlling 24V DC outputs. It features built-in fuse protection for short-circuit and overload conditions, making it ideal for high-current applications in fixed or modular SLC 500 hardware.
General Information
- Part Number: 1746-OBP16
- Series: SLC 500
- Module Type: Digital DC Output Module
- Outputs: 16
- Voltage Range: 20.4-26.4 V DC Source
- Current per Output: 1.5 A or 1 A
- Current per Module: 6.4 A
- Backplane Current (5V DC): 250 mA
- Applications: High Current
- Compatible Fuse: Littelfuse #322010, 10A or #332010, 10A
- Fuse Kit Part Number: 1746-F8
Technical Specifications
- Step Response: 60 ms (in), 2.5 ms (out)
- Fuse Protection: Yes, integrated fuse for short-circuit protection
- Fuse Kit: 1746-F8 (contains 5 fuses)
- Recommended Signal Wires: Max 2 mm² (14 AWG)
Features
- Integrated Fuse Protection: Prevents damage from short-circuit and overload conditions
- Automatic Fault Recovery: Allows for channel recovery once the fault is corrected
- High Current Capacity: 1.5 A or 1 A per output channel
- Compact and Reliable: Fits into a single slot of the SLC 500 chassis
- Individually Protected Channels: Other channels continue to operate even if one channel experiences a fault
Environmental Conditions
- Operating Temperature: 0°C to 60°C
- Storage Temperature: -40°C to 85°C
- Operating Humidity: 5% to 95% (non-condensing)
Certifications
- UL-listed
- CSA Certified
