Description

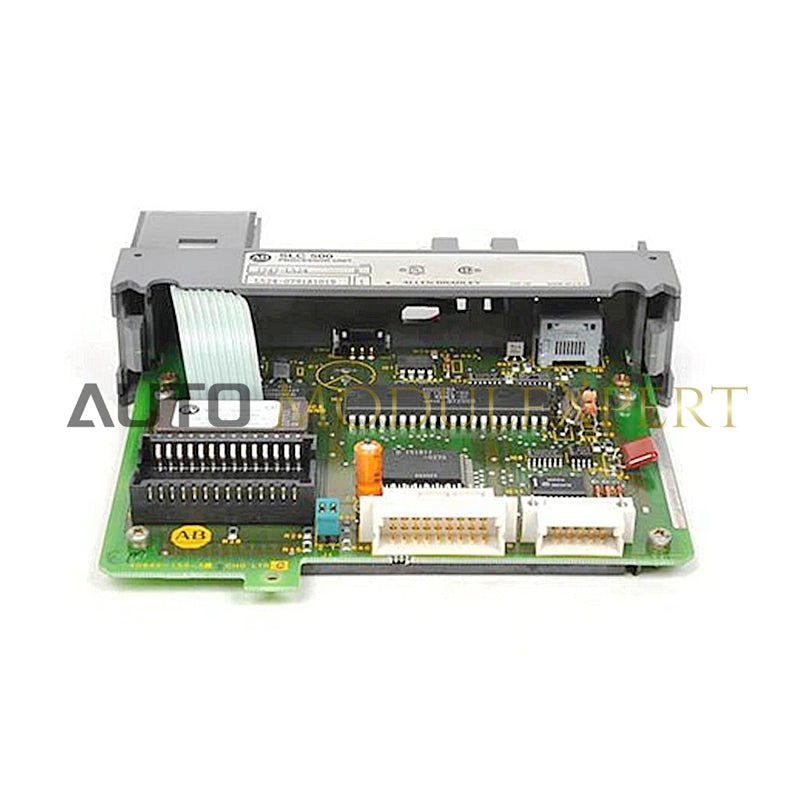

Allen-Bradley 1747-L524 is an SLC 5/02 Processor from the SLC 500 modular family. This processor offers a memory capacity of 4KB, supporting up to 4096 discrete inputs and outputs. It is equipped with a DH485 communication port for data exchange, ideal for various industrial automation applications.
General Information
- Part Number: 1747-L524
- Series: SLC 500
- Module Type: SLC 5/02 Processor
- Memory: 4 KB (Battery Backed-RAM)
- Inputs: 4096
- Outputs: 4096
- Analog I/O: 480
- Chassis/Slots: 3 chassis, 30 slots
- Backplane Current (5V DC): 350 mA
- Backplane Current (24V DC): 105 mA
- Battery: Replaceable, 2-year lifespan
- Dimensions: 145 x 35 x 142 mm
- Operating Temperature: 0°C to 60°C
- Storage Temperature: -40°C to 85°C
- Vibration: 0.015-inch peak-to-peak at 5-57 Hz
- Shock: 30 G
- Humidity: 5% to 95% (non-condensing)
Technical Specifications
- Program Scan Time: 1.6 ms/K
- I/O Scan Time: 1.6 ms
- Bit Execution Time: 2.4 microseconds
- Communication Ports: DH485, RS-232
- Backup Memory: EEPROM
- Power Supply: 5V DC, 350 mA (5V)
- Battery Backup: Yes (requires 1747-BA)
- Power Consumption: 1.75 W (minimum)
- Program Hold-up Time (after power loss): 20 ms to 3 seconds
Features
- Memory Capacity: 4KB RAM for instructions
- Flexible I/O Capacity: Supports 4096 discrete I/O points
- PID Control: Built-in instruction for automatic control applications
- Communication: DH485 for HMI, SCADA, and third-party systems
- Advanced Functionality: Address indexing, process and program interrupts, fault routines
- LED Indicators: CPU status, I/O status, communication, and battery

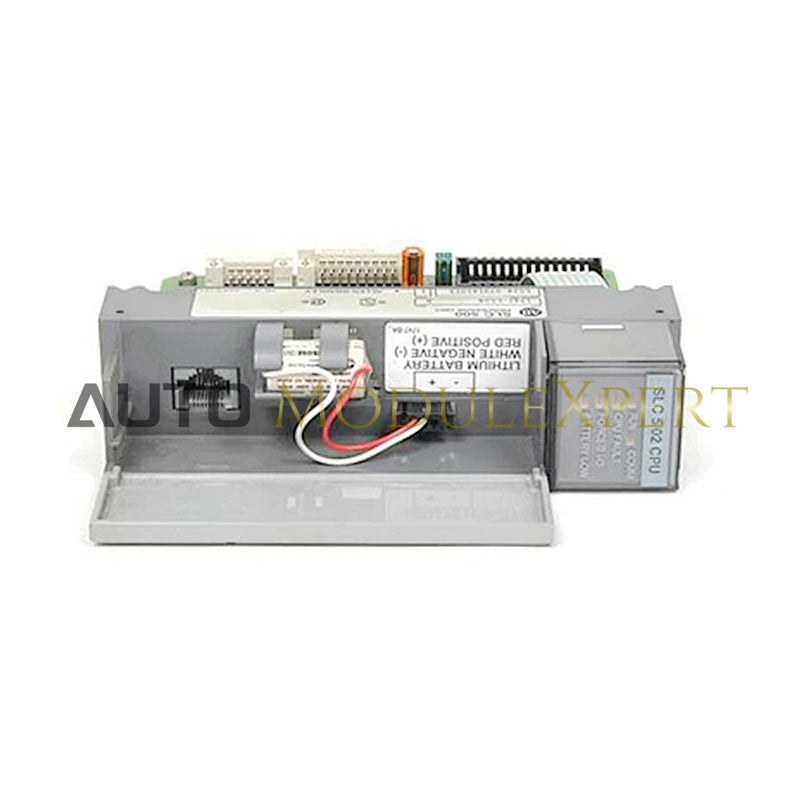

- Replaceable Battery: Easy front-panel battery replacement
Compatibility
- Remote I/O: Supports up to 4096 remote I/O points
- Scanner Modules: DeviceNet, ControlNet, and Universal Remote I/O
- Optional Modules: Compatible with 1747-DTAM for data table access and memory transfer
- Not Compatible: 1746-BLM and 1746-MPM modules
Environmental Conditions
- Operating Temperature: 0°C to 60°C
- Storage Temperature: -40°C to 85°C
- Relative Humidity: 5% to 95% (non-condensing)
Certifications
- UL-listed
- CSA Certified
- CE Compliant
