Overview

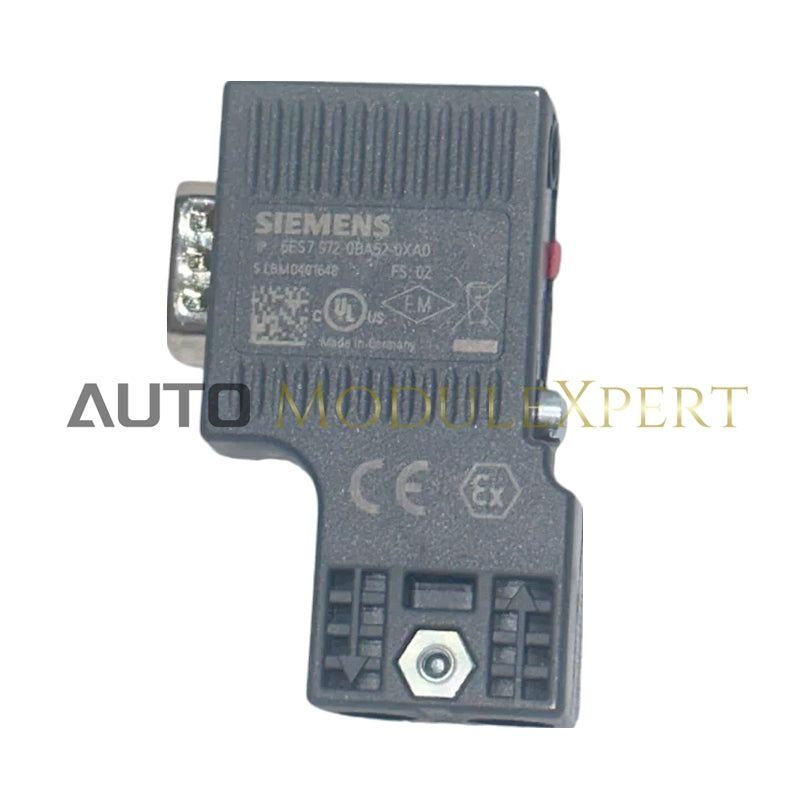

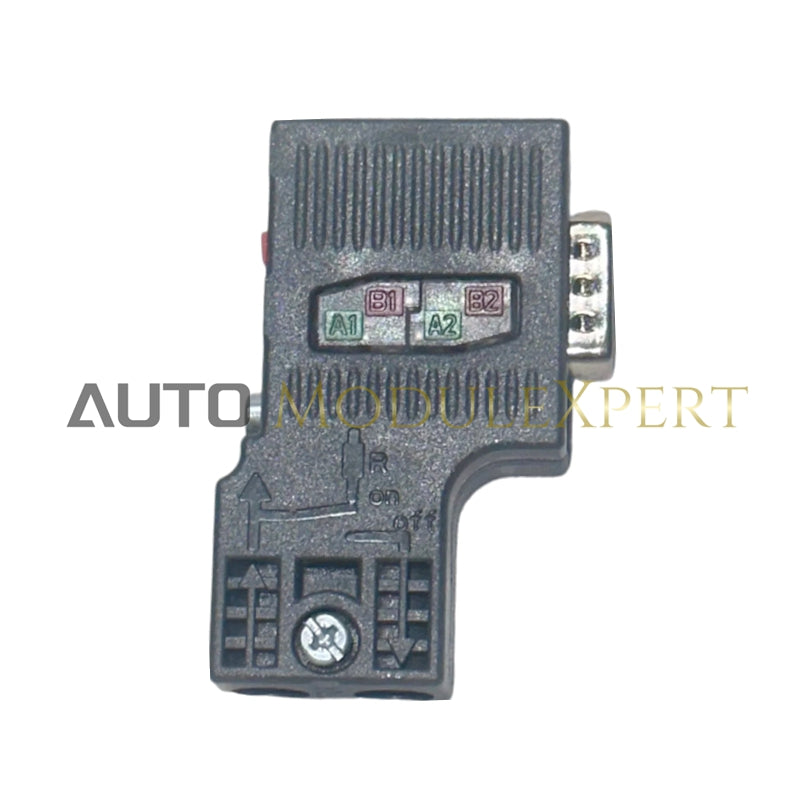

6ES7972-0BA52-0XA0 is a PROFIBUS bus connector designed by Siemens for connecting PROFIBUS stations to the bus cable. It supports transfer rates from 9.6 kbit/s to 12 Mbit/s and features a 90° cable outlet with FastConnect technology.
Specifications
- Product Type: PROFIBUS Connector
- Transfer Rate: 9.6 kbit/s to 12 Mbit/s
-
Electrical Connections:
- PROFIBUS cables: 2
- Network components or terminal equipment: 1
-
Connection Type:
- PROFIBUS cables: Integrated insulation displacement terminals for 2-core PB FC installation cables
- Network components or terminal equipment: 9-pin sub D connector
- FastConnect: Yes
- Terminating Resistor: Integrated resistor combination, connectable via slide switch
- Material: Plastic
- Locking Mechanism: Screwed joint
- Cable Outlet Type: 90° cable outlet
-
Dimensions:
- Width: 15.8 mm
- Height: 59 mm
- Depth: 35.6 mm
- Weight: 36 g
Ambient Conditions
- Operating Temperature: -25°C to +60°C
- Storage Temperature: -40°C to +70°C
- Transport Temperature: -40°C to +70°C
- Protection Class: IP20
Product Features
- Silicon-free: Yes
- Strain Relief: Yes
- PG Connection Socket: No
Certifications and Approvals
- RoHS Conformity: Yes
- UL Approval: Yes
