Overview

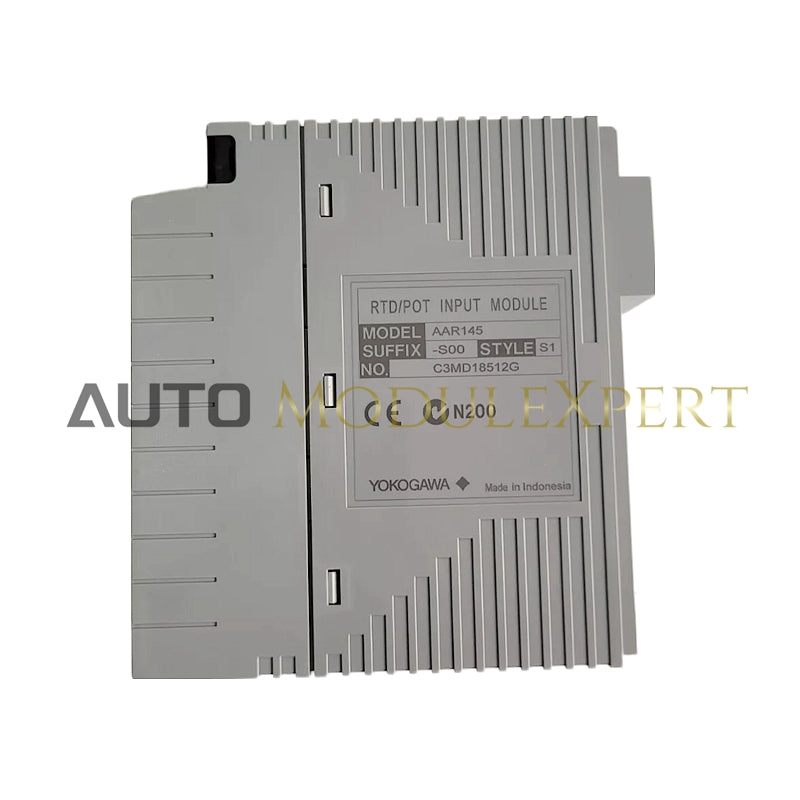

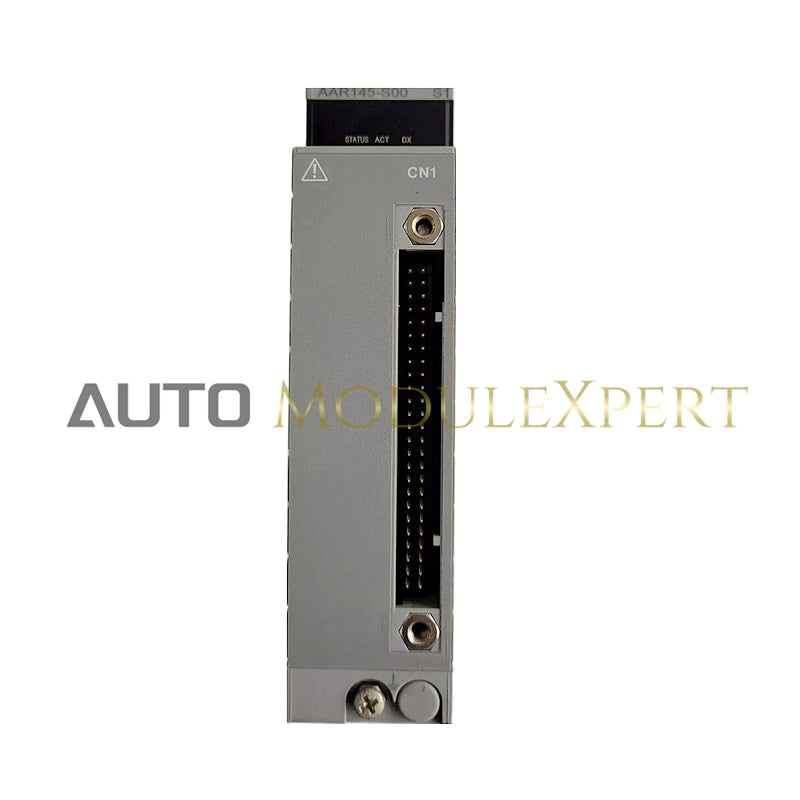

The AAR145-S00 is a 16-channel isolated input module from YOKOGAWA, designed to handle a variety of input signals, including thermocouples (TC), mV, RTD, and POT. It supports high accuracy and offers comprehensive signal isolation.
Electrical Specifications
-
Input Signal:
- TC: JIS C1602:1995, IEC584:1995 (Types J, K, E, B, R, S, T, N)
- mV: -100 to 150 mV, -20 to 80 mV
- RTD: JIS C1604:1997, IEC751:1995 Pt100 (3-wire type)
- POT: Total resistance 100 Ω to 10 kΩ
- Allowable Input Voltage: ±5 V
-
Accuracy:
- ±40 µV for TC/mV
- RTD: ±150 mΩ
- POT: ±0.2 %/FS
- Reference Junction Compensation Accuracy: ±1 °C
- Measurement Current (RTD): 1 mA
Performance Details
- Input Resistance: 1 MΩ or larger (Power ON/OFF)
- Burn-out Detection: Available for all channels with a 60s detection time
-
Temperature Drift:
- ±80 µV/10 °C for TC/mV
- RTD: ±0.3 Ω/10 °C
- POT: ±0.4 %/10 °C
Physical Characteristics
- Weight: 0.3 kg
- External Connection: Dedicated cable (KS8/AKB335)
- Maximum Current Consumption: 350 mA (5 V DC)
Compatibility
- Signal Channel Configurations: TC/mV, RTD/POT can be set individually for each channel (CH1 to CH16).
