Overview

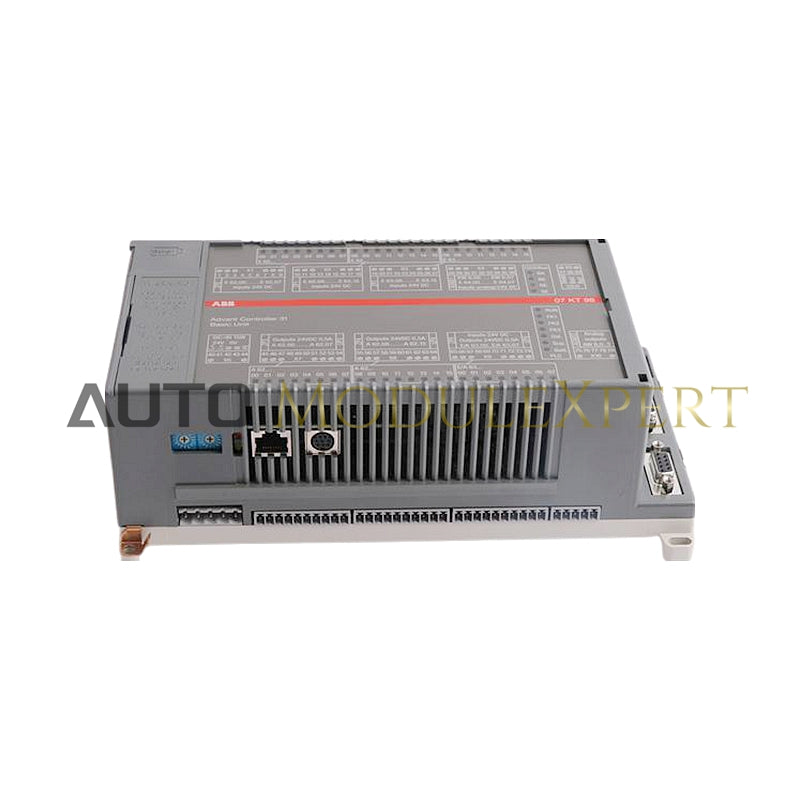

The ABB 07KT98 is a robust programmable logic controller (PLC) module designed for ABB's Advant control system, delivering essential processing and control functions for various automation tasks.
Technical Specifications
-
Input/Output:
- Number of digital inputs: 24
- Number of digital transistor outputs: 16
- Number of digital inputs/outputs: 8
- Number of analog inputs: 8
- Number of analog outputs: 4
- I/O expansion via CS31 system bus: Up to 992 digital I/Os, 224 analog I/O channels
- Maximum remote modules: 31
-
Communication:
- Number of serial interfaces: 2
- Number of parallel interfaces: 1
-
Memory:
- Integrated memory Flash EPROM: 1 MB program + 128 kB user data
- SRAM: 256 kB RETAIN
- DRAM: 1 MB program + 1 MB user data
-
Timers and Counters:
- Integrated real-time clock resolution: 1 second
- High-speed hardware counter modes: 7
- Counting range: -32768 to +32767 (16-bit signed integer)
- Maximum counting frequency: 50 kHz
- Processing time: 0.07 ms/kB program
-
Flags and Step Chains:
- Number of bit flags: 8192
- Number of word flags: 8192
- Number of double word flags: 1024
- Number of step chains: 256
-
Other Features:
- Status and error indication: 60 LEDs
- Wiring method: Removable screw-type terminal blocks
- Power supply: Max. 1 x 2.5 mm² or 2 x 1.5 mm²
- Other terminals: Max. 1 x 1.5 mm²
