General Information

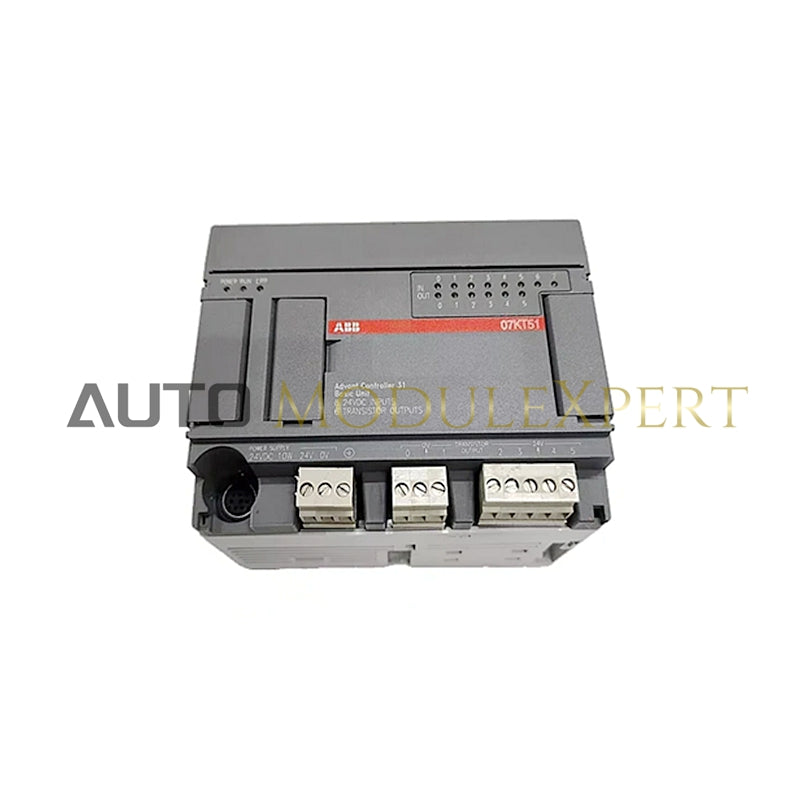

- Product ID: 1SBP260012R1001
- ABB Type Designation: 07KT51
- Catalog Description: 07KT51: AC31, PLC 8DI/6DO-Trans., 34kB, 2
- Long Description: 07KT51: AC31, PLC 8DI/6DO-Trans., 34kB, 24VDC
Additional Information
-
Ambient Air Temperature:
- Operation: 0 ... +55 °C
- Storage: -40 ... +75 °C
- Battery Type: Portable
- Invoice Description: 07KT51: AC31, PLC 8DI/6DO-Trans., 34kB, 2
Key Specifications
- Maximum Hardware Counter Input Frequency: 7 kHz
-
Maximum Number of Analog I/Os:
- 258 AI
- 224 AO
- Maximum Number of Digital I/Os: 1000
- Maximum Operating Altitude Permissible: 2000 m
Memory Specifications
- Memory Size: 34 kB
- Memory Size User Data: 4.4 kB
- Memory Size User Program: 34 kB
- Memory Type User Data: Non-volatile RAM
- Memory Type User Program: Flash EPROM
Mounting and Physical Characteristics
-
Mounting on DIN Rail:
- TH35-15 (35 x 15 mm)
- TH35-7.5 (35 x 7.5 mm)
- Number of Digital Inputs (DC 24V): 8
- Number of Digital Outputs (DC 24V): 6
- Number of Hardware Counters: 2
Electrical Specifications
- Object Classification Code: K
- Order Multiple: 1 piece
- Output Current: 0.5 A
- Output Voltage (Uout): 24 V DC
- Parallel Extension: 1
- Primary Voltage: 24 V DC
Dimensions
- Product Depth: 84 mm
- Product Net Depth/Length: 85 mm
- Product Net Height: 93 mm
- Product Net Weight: 0.8 kg
- Product Net Width: 120 mm
Product Overview
- Product Main Type: 07KT51
- Product Name: Distributed Automation PLCs
- Product Type: PLC-AC31-40/50
- Programming Software: AC31GRAPH, 907AC1131
Performance
- Speed for 1000 Instructions (65% Logic, 35% Word): 1.2 ms
