General Information
- Extended Product Type: AO523
- Product ID: 1SAP250200R0001
- ABB Type Designation: AO523
- EAN: 4016779655965

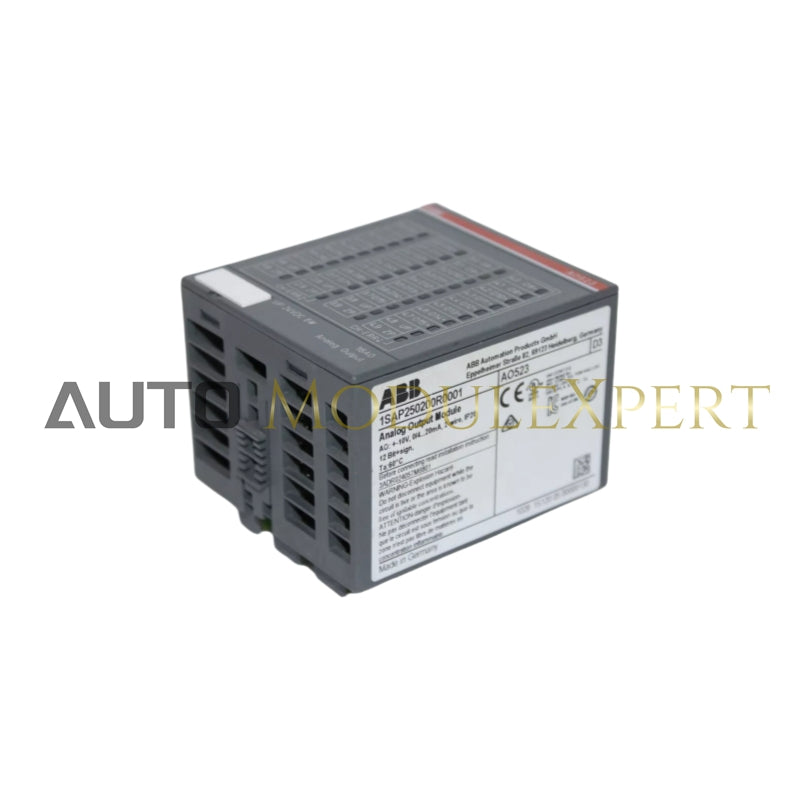

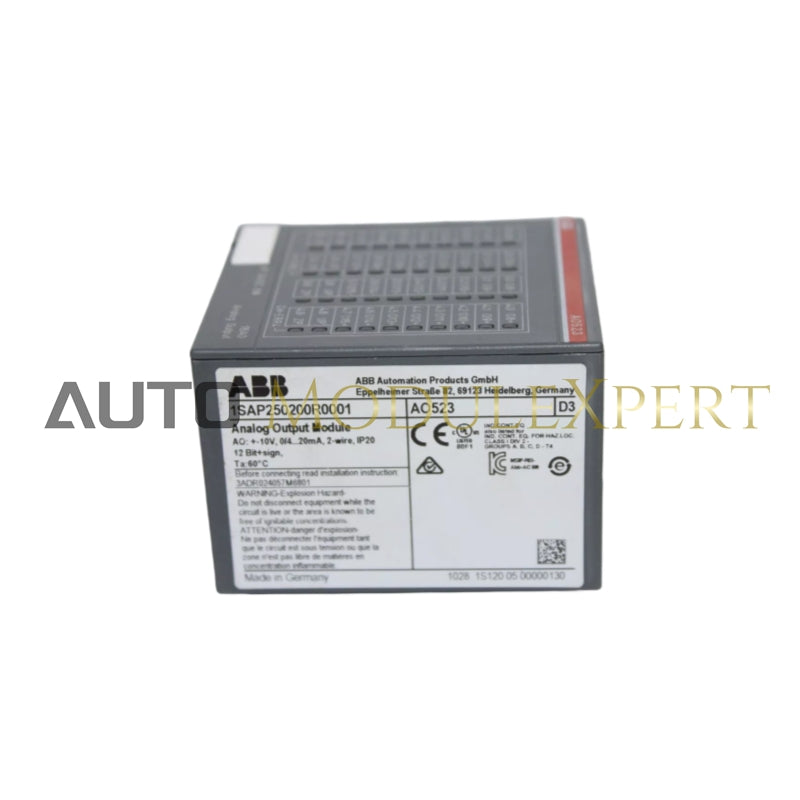

- Catalog Description: Analog output module with 8 analog outputs (AO) for voltage (U) and current (I). Model AO523.
-
Long Description:
- AO523: S500 series analog output module.
- Provides 8 AO for voltage (U) and current (I).
- Single-wire configuration.
Ordering Information
- Customs Tariff Number (CN8): 85389091
- Invoice Description: Analog output module with 8 AO for voltage (U) and current (I), model AO523.
- Made To Order: No
- Minimum Order Quantity: 1 piece
- Order Multiple: 1 piece
- Selling Unit of Measure: Piece
Dimensions
- Product Net Weight: 0.127 kg
- Product Net Depth / Length: 62 mm
- Product Net Height: 76 mm
- Product Net Width: 67.5 mm
- Gross Weight: 0.152 kg
-
Package Level 1 Dimensions:
- Depth / Length: 84 mm
- Height: 72 mm
- Width: 71 mm
- Package Level 1 Units: 1 carton
Technical Specifications
- Function: 8 AO for voltage (U) and current (I), plus 8 AO for voltage (U)
- Number of Analog Configurable I/Os: 0
- Analog Outputs: 16
- Output Signal: 8 AO for voltage (U) and current (I), plus 8 AO for voltage (U)
- Resolution: Analog output, 13-bit
- Degree of Protection: Housing IP20
Additional Information
- Product Main Type: AO523
- Product Name: Distributed Automation I/Os
Classifications
- eClass: 27-24-22-02
- ETIM 8: EC001420 - PLC analogue I/O-module
- UNSPSC: 32151705
Environmental Information
- SCIP Code: 2c933e79-99fe-43cd-8040-9a110a6ecee2 (Germany, DE)
- WEEE (Waste Electrical and Electronic Equipment): Business to Business (B2B)
- WEEE Category: Category 5, Small Equipment (No external dimension more than 50 cm)
