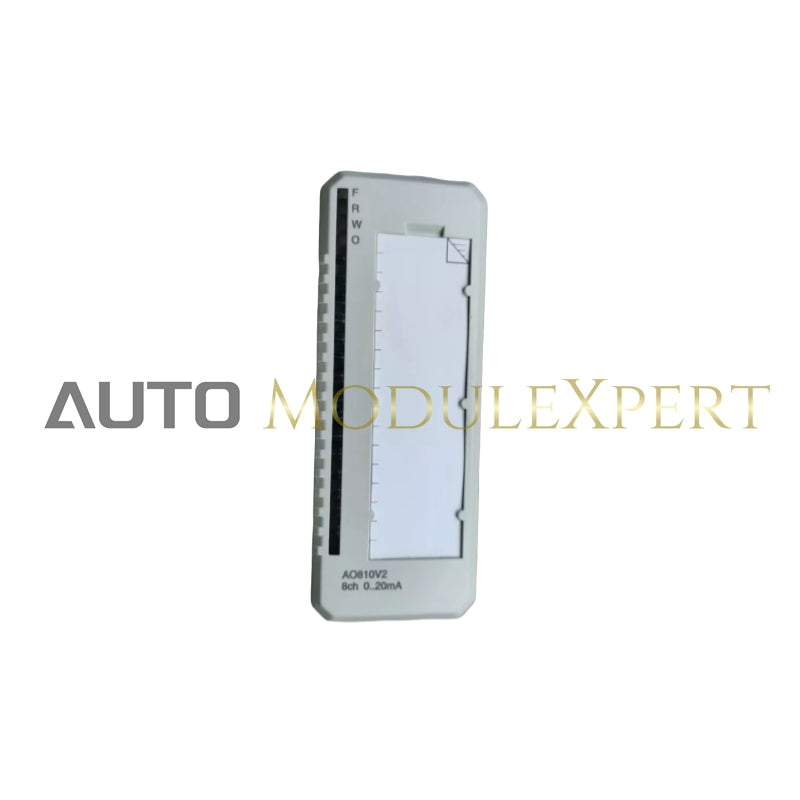

General Information
- Article Number: 3BSE038415R1
- Type: Analog Output
- Signal Specification: 0..20 mA, 4..20 mA
- Number of Channels: 8
- HART: No
- SOE: No
- Redundancy: No
- High Integrity: No
- Intrinsic Safety: No
- Mechanics: S800
Detailed Data
- Resolution: 14-bit
- Isolation: Groupwise isolated from ground
- Under/Over Range: - / +15%
-
Output Load:
- ≤ 500 Ω (supply connected to L1+ only)
- 250 - 850 Ω (supply connected to L2+ only)
- Error: Max. 0.1% at 0 - 500 Ω (current)
-
Temperature Drift:
- Typical: 30 ppm/°C
- Maximum: 60 ppm/°C
- Rise Time: 0.35 ms (PL = 500 Ω)
- Update Cycle Time: ≤ 2 ms
- Current Limiting: Short-circuit proof, current-limited output
- Maximum Field Cable Length: 600 meters (656 yards)
- Rated Insulation Voltage: 50 V
- Dielectric Test Voltage: 500 V a.c.
- Power Dissipation: 2.3 W
-
Current Consumption:
- +5 V Modulebus: Max. 70 mA
- +24 V Modulebus: 0
- +24 V External: 245 mA
Diagnostics
-
Front LEDs:
- F (Fault)
- R (Run)
- W (Warning)
- O (Output State)
-
Supervision:
- Module Error: Output power low
- Channel Error: Open circuit (for current > 1 mA)
-
Status Indication:
- Module Error
- Module Warning
- Channel Error
Environment and Certification
- CE Mark: Yes
- Electrical Safety: EN 61010-1, UL 61010-1, EN 61010-2-201, UL 61010-2-201
-
Hazardous Location:
- C1 Div 2 cULus
- C1 Zone 2 cULus
- ATEX Zone 2
- Marine Certification: ABS, BV, DNV, LR
- Operating Temperature: 0 to +55 °C (+32 to +131 °F)
- Storage Temperature: -40 to +70 °C (-40 to +158 °F)
- Pollution Degree: Degree 2 (IEC 60664-1)
- Corrosion Protection: ISA-S71.04: G3
- Relative Humidity: 5 to 95%, non-condensing
-
Max Ambient Temperature:
- 55 °C (131 °F)
- 40 °C (104 °F) for vertical mounting in compact MTU
- Protection Class: IP20 (IEC 60529)
- Mechanical Operating Conditions: IEC/EN 61131-2
- EMC: EN 61000-6-4, EN 61000-6-2
- Overvoltage Categories: IEC/EN 60664-1, EN 50178
- Equipment Class: Class I (earth protected)
- RoHS Compliance: DIRECTIVE/2011/65/EU (EN 50581:2012)
- WEEE Compliance: DIRECTIVE/2012/19/EU
Compatibility
- Use with MTU: TU810, TU812, TU814, TU830, TU833
- Keying Code: AE

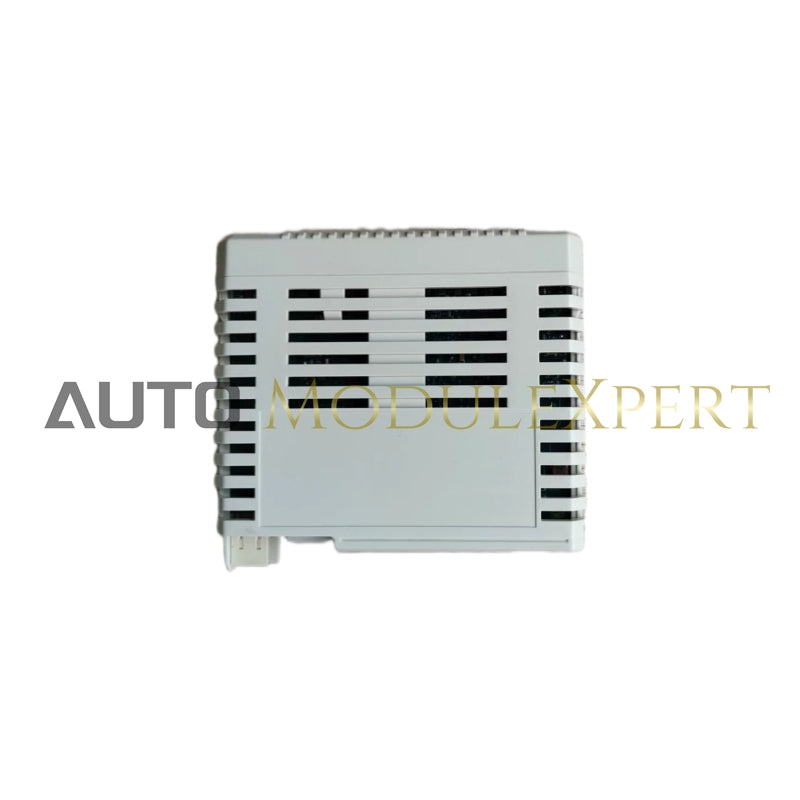

Dimensions
- Width: 45 mm (1.77”)
-
Depth:
- 102 mm (4.01”)
- 111 mm (4.37”) including connector
- Height: 119 mm (4.7”)
- Weight: 0.18 kg (0.4 lbs.)
