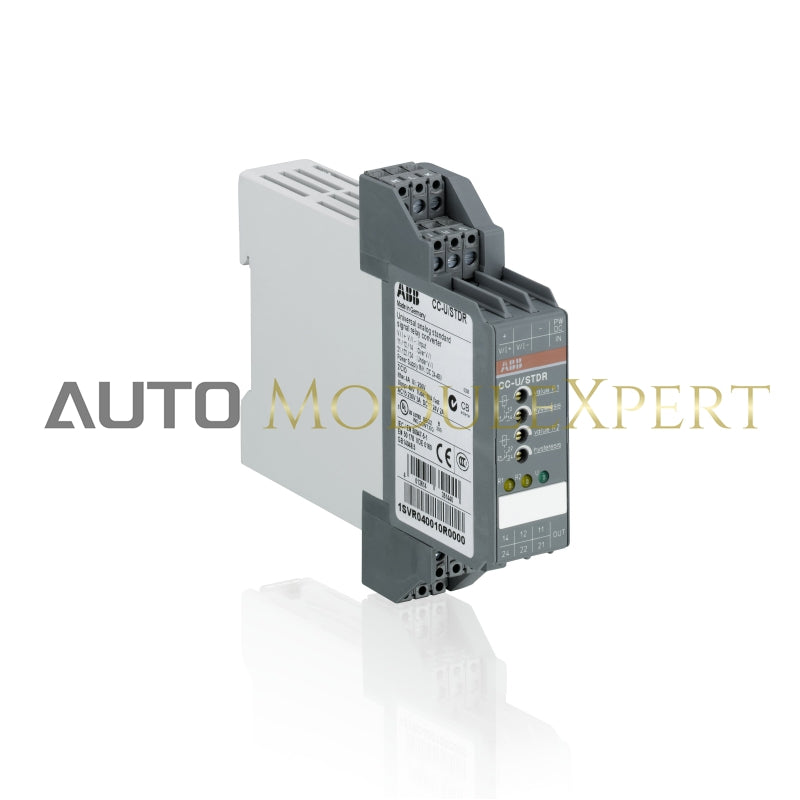

General Information: ABB CC-U/STDR Universal Signal Converter
Extended Product Type:
- Type: CC-U/STDR
- Product ID: 1SVR040011R2500
- EAN: 4013614351457
-
Catalog Description:
Universal signal converter with rated control supply voltage of 110-240 V AC / 100-300 V DC, pluggable connecting terminals, and relay outputs.
Product Overview
Long Description:
The CC-U/STDR is a standard analog signal converter from ABB’s CC-U range. Key features include:
- Control Supply Voltage: 110-240 V AC, 50/60 Hz / 100-300 V DC
- Relay Outputs: 2 threshold relay outputs, each with one c/o (SPDT) contact
- Electrical Isolation: 3-way electrical isolation
- Signal Range: 7 configurable input signal ranges
- Operating Principle: Open- or closed-circuit operation, selectable via DIP switches
-
Adjustments:
- Independent threshold values and hysteresis adjustment via front-face potentiometers
-
LED Indicators:
- Green LED for supply voltage status
- Two yellow LEDs for output relay status
Ordering Information
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85364900
- Product Main Type: CC-U
Dimensions and Weight
- Net Width: 22.5 mm
- Net Depth / Length: 120 mm
- Net Height: 105 mm
- Net Weight: 0.142 kg
Technical Specifications
- Function: Standard signals / Universal
- Output: 2 c/o (SPDT) contacts
- Power Loss: Approximately 2 W
-
Standards Compliance:
- CAN/CSA C22.2 No.14
- EN 50178
- IEC/EN 60947-5-1
- IEC/EN 61000-6-2
- IEC/EN 63000
- UL 508
- Sub-Function: Universal
Material Compliance
- RoHS Status: Compliant with EU Directive 2011/65/EU
- WEEE Compliance: Business to Business (B2B)
- WEEE Category: Category 5 - Small Equipment (No external dimension > 50 cm)
Certificates and Declarations
- CB Certificate: CB_DK-9293
- CCC Certificate: CCC_2006010303193065
- cUL Certificate: cUL Certificate for CC relay output
- Declaration of Conformity - CE: 1SVD981033-0001
- UL Certificate: UL Certificate for CC relay output
Container Information
- Package Type: Carton (1 piece per carton)
-
Package Dimensions:
- Width: 109 mm
- Depth / Length: 26 mm
- Height: 124 mm
- Gross Weight: 0.171 kg
- Package EAN: 4013614351457
External Classifications and Standards
- eClass: V11.0 – 27210120
-
ETIM Classifications:
- ETIM 6: EC002653 - Isolation amplifier
- ETIM 7: EC002653 - Isolation amplifier
- ETIM 8: EC002653 - Isolation amplifier
- ETIM 9: EC002653 - Isolation amplifier
- Object Classification Code: T
