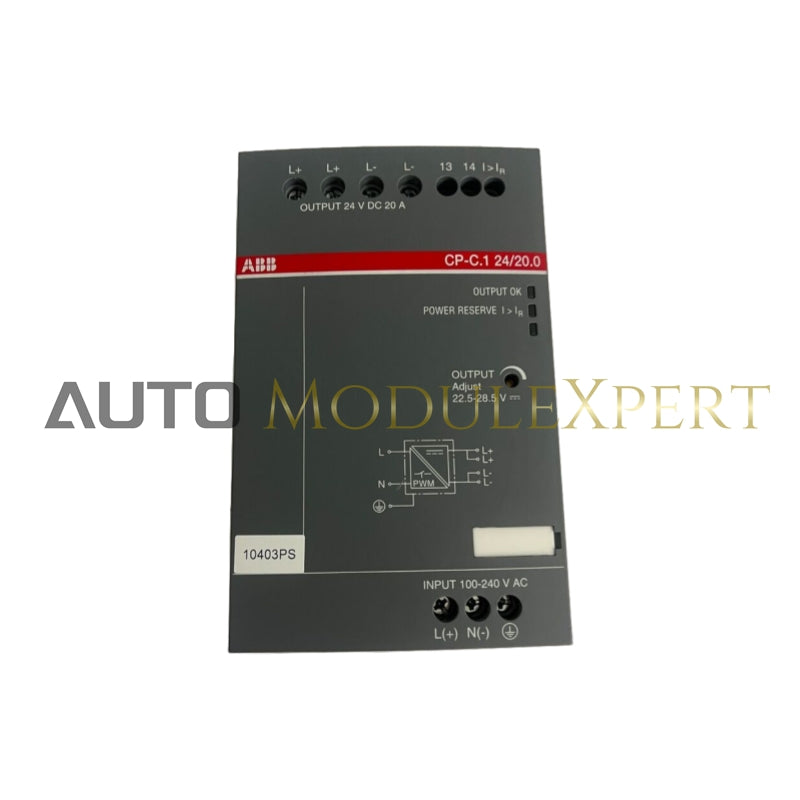

CP-C.1 24/20.0 Power Supply
The CP-C.1 24/20.0 is a switch-mode power supply offering a wide input range and adjustable output voltage, ideal for a variety of industrial applications. It features high efficiency, power factor correction, and support for parallel operation for redundancy and increased capacity.
Key Features:
- Switch-mode power supply for reliable and efficient operation
- Wide input voltage range: 85–264 V AC and 90–300 V DC
- Rated input voltage: 100–240 V AC, 90–300 V DC
- Adjustable output voltage: 22.5 to 28.5 V DC
- Rated output voltage: 24 V DC
- Rated output current: 20 A
- Output power: 480 W
- U/I characteristic curve with up to 30% power reserve
- Redundancy support through parallel operation
- Power factor correction (according to EN 61000-3-2)
- Buffer modules and redundancy units available as accessories
Electrical Specifications:
- Input voltage: 85–264 V AC, 90–300 V DC
-
Rated output current:
- -25°C to +40°C: 26 A
- -25°C to +60°C: 20 A
- Rated output power: 480 W
- Output current maximum: 26 A
- Hold-up time: Min. 40 ms at 230 V AC
-
Typical input current:
- (115 V AC): 4.6 A
- (230 V AC): 2.3 A
- Rated frequency: 50/60 Hz
- Frequency limits: 45–65 Hz
Input/Output Circuit Characteristics:
-
Rated impulse withstand voltage:
- Input Circuit: 4 kV
- Output Circuit: 4 kV
-
Rated insulation voltage:
- Input/output circuit: 300 V
- Input circuit/PE: 300 V
- Output circuit/PE: 50 V
-
Degree of protection:
- Housing: IP20
- Terminals: IP20
- Pollution degree: 2
Mechanical Specifications:
- Mounting type: DIN rail (TH35-15 or TH35-7.5)
- Mounting position: Position 1, 7
-
Minimum mounting distance:
- Electrical conductive board (horizontal/vertical): 25 mm
- Same type device (horizontal/vertical): 25 mm
-
Dimensions:
- Width: 82 mm
- Height: 129.4 mm
- Depth/Length: 136 mm
- Weight: 1.57 kg
Environmental Specifications:
-
Ambient air temperature:
- Operation: -25°C to +70°C
- Storage: -40°C to +85°C
-
Vibration resistance (IEC 60068-2-6):
- 10–58 Hz: ±0.15 mm
- 58–150 Hz: 2g, 10 sweep cycles each axis
- Shock resistance (IEC 60068-2-27): 30g / 3 shocks / 6 ms
- Damp heat resistance (IEC 60068-2-30): Test Db at 55°C, 2 cycles
- RoHS compliance: Follows EU Directive 2011/65/EU
