General Information
- Extended Product Type: CP635
- Product ID: 1SAP535100R0001
- ABB Type Designation: CP635
- EAN: 4016779864909

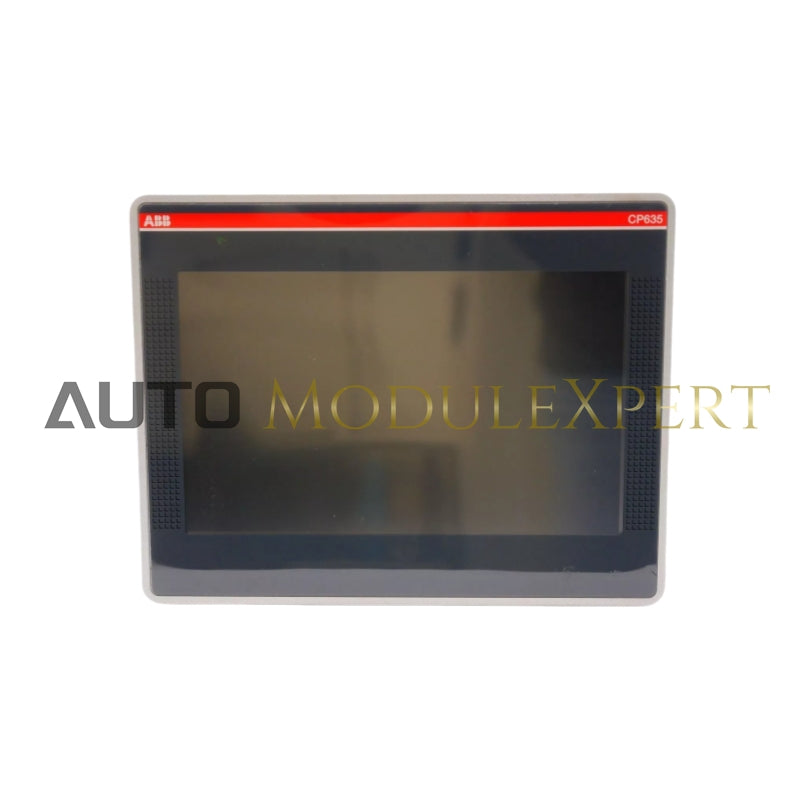

- Catalog Description: CP635 Control Panel 7" TFT touch screen
- Long Description: CP635 Control Panel 7" TFT touch screen, 64K colors, 800 x 480 pixel, PB610 runtime license
Additional Information
- ABB Type Designation: CP635
-
Ambient Air Temperature:
- Operation: 0 ... +50 °C
- Storage: -20 ... +70 °C
- CN8: 85371091
-

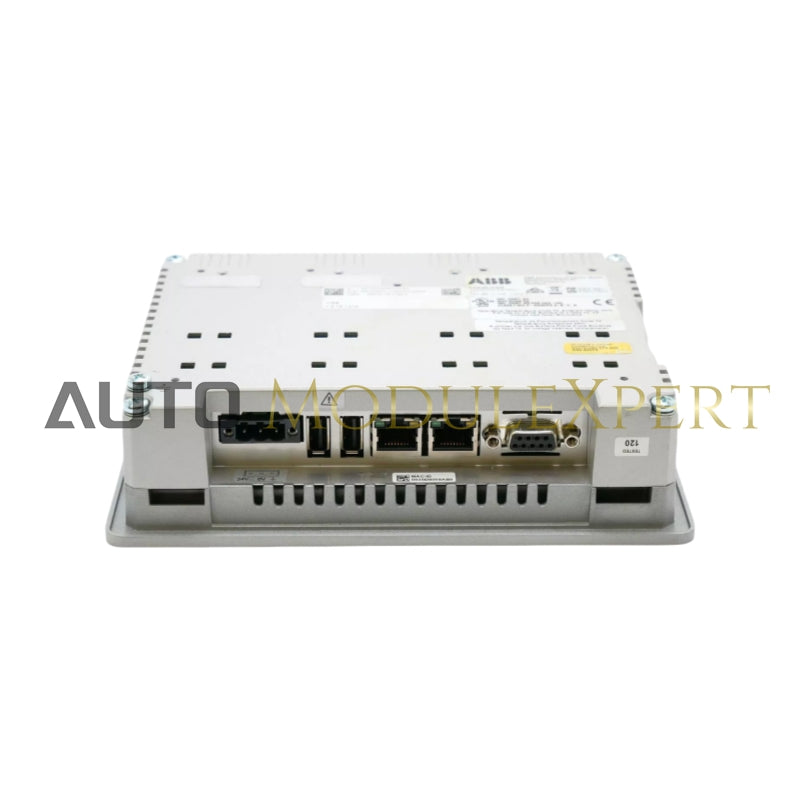

Communication Interface:
- 2x Ethernet 100 MBit
- 1x RS232/422/485
- 2x USB 2.0 Host
- 1x SD card slot
- 2x Expansion slot
- Country of Origin: Italy (IT), Finland (FI)
- Customs Tariff Number: 85371091
-
Declaration of Conformity:
- C-Tick Declaration of Conformity for CP620(-WEB), CP630(-WEB), CP635(-WEB), CP650(-WEB), CP660(-WEB), CP675(-WEB)
- KCC Declaration of Conformity with EMC standards for industrial devices
-
Degree of Protection:
- Front: IP66 (acc. to IEC 60529)
- Housing: IP20 (acc. to IEC 60529)
- EAN: 4016779864909
- Frame Size: Undefined
- Gross Weight: 1.2 kg
-
Housing Material:
- Front side: Zamak
- Reverse side: Aluminium
Technical Specifications
-
Memory Size:
- User Data: 128 MB
- User Program: 256 MB
-
Memory Type:
- User Data: Flash Disk
- User Program: DDR RAM
- Mounting Type: Front face
- Power Consumption (@Pcons): 16.8 W
- Power Supply: 24 (18 ... 30) V DC
- Product Main Type: CP635
-
Product Net Dimensions:
- Depth / Length: 51 mm
- Height: 147 mm
- Width: 187 mm
- Product Net Weight: 0.76 kg
- Product Type: PLC-CP600
- Programming Software: PB610 Panel Builder 600
- Real-time Clock: Hardware clock, battery backup
Screen Specifications
- Screen Size: 7 in, 16:9 wide screen
- Screen Color: 64K colors
- Screen Resolution: 800 x 480 pixel
- Screen Type: TFT color, LED backlight, touch screen
Security and Service Life
- Security: Password protection with 8 user levels
- Service Life: 40,000 hours
Ports
- Serial Port 1 Type: RS232/RS422/RS485
-
USB Ports:
- USB Port 1: Host, version 2.0
- USB Port 2: Host, version 2.0
Packaging
-
Package Dimensions:
- Depth / Length: 280 mm
- Height: 120 mm
- Width: 210 mm
- Package Level 1 Units: 1 carton
Miscellaneous
- Stocked At (Warehouses): Menden (Germany), Hangzhou (China), Bairro Santo Antonio (Brazil)
- UNSPSC: 32151703
- WEEE Category: 5. Small Equipment (No External Dimension More Than 50 cm)
- eClass: 27-33-02-01
