General Information
- Extended Product Type: CP6407
- Product ID: 1SAP540710R0001
- ABB Type Designation: CP6407
- EAN: 4013614553240

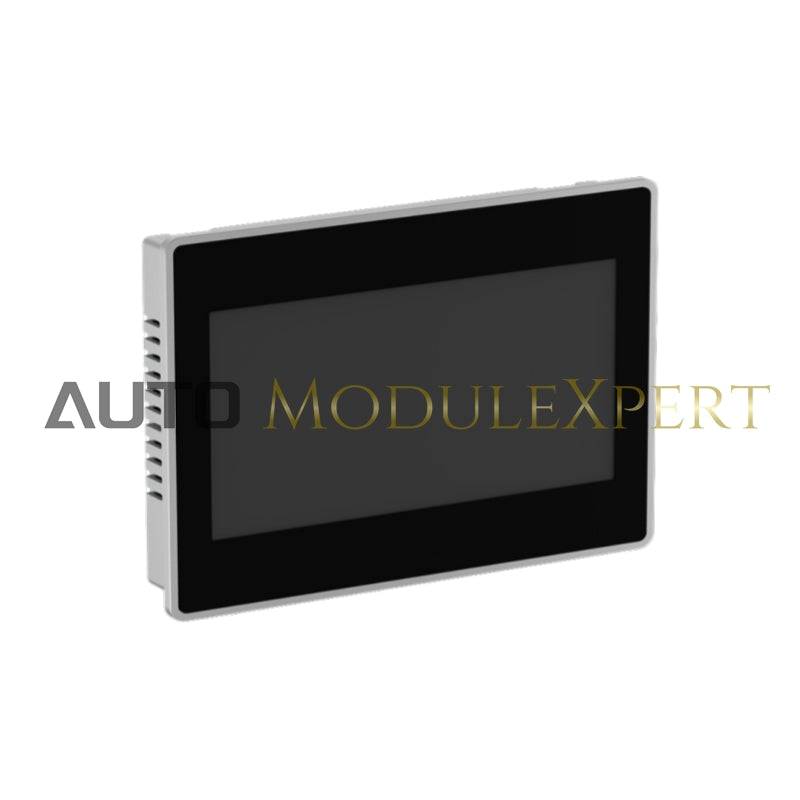

- Catalog Description: Control panel with a 7" TFT touch screen, supporting 64K colors at 800 x 480 pixel resolution, featuring the Chromium Browser for PB610 applications.
Ordering Information
- CN8 Code: 85371091
- Invoice Description: Control panel with 7" TFT touch screen, 64K colors, 800 x 480 pixels, Chromium Browser (CP6407)
- Made To Order: No
- Minimum Order Quantity: 1 piece
- Order Multiple: 1 piece
- Selling Unit of Measure: Piece
Dimensions
- Net Weight: 0.92 kg
- Net Depth/Length: 42 mm
- Net Height: 147 mm
- Net Width: 187 mm
- Gross Weight: 1.425 kg
-
Package Level 1 Dimensions:
- Depth/Length: 280 mm
- Height: 120 mm
- Width: 210 mm
- Units per Package: 1 carton
Technical Specifications
- Function: 7" TFT touch screen, 64K colors, 800 x 480 pixels, Chromium Browser
- Screen Size: 7 inches
- Screen Color: 65536 colors
- Screen Resolution: 800 x 480 pixels
- Display Type: TFT, resistive touch
-
Hardware Interfaces:
- Industrial Ethernet: 2
- USB: 2
- Others: 1
- RS-232, RS-422, RS-485, Serial TTY, Parallel, Wireless, PROFINET: 0
- Memory Size: 150000 kB
- Security Level: 50
- Input Voltage Type: DC
- Degree of Protection: Front IP66
- Supply Voltage: 18–32 V DC
- Built-In Depth (t2): 40 mm
- Ambient Air Temperature (Operation): -20 to +60 °C
Additional Information
- Product Main Type: CP6407
- Product Name: Control Panels
Classifications
- eClass: 27-33-02-01
- ETIM 8: EC001412 - Graphic panel
- UNSPSC: 32151703
Environmental Compliance
- SCIP: c7c823eb-2719-4c07-9f93-6867edb4cb5a (Germany)
-
WEEE Compliance:
- WEEE B2C/B2B: Business To Business
- WEEE Category: 5. Small Equipment (No External Dimension More Than 50 cm)
