General Information
- Extended Product Type: CP6605
- Product ID: 1SAP560510R0001
- ABB Type Designation: CP6605
- EAN: 4013614529610

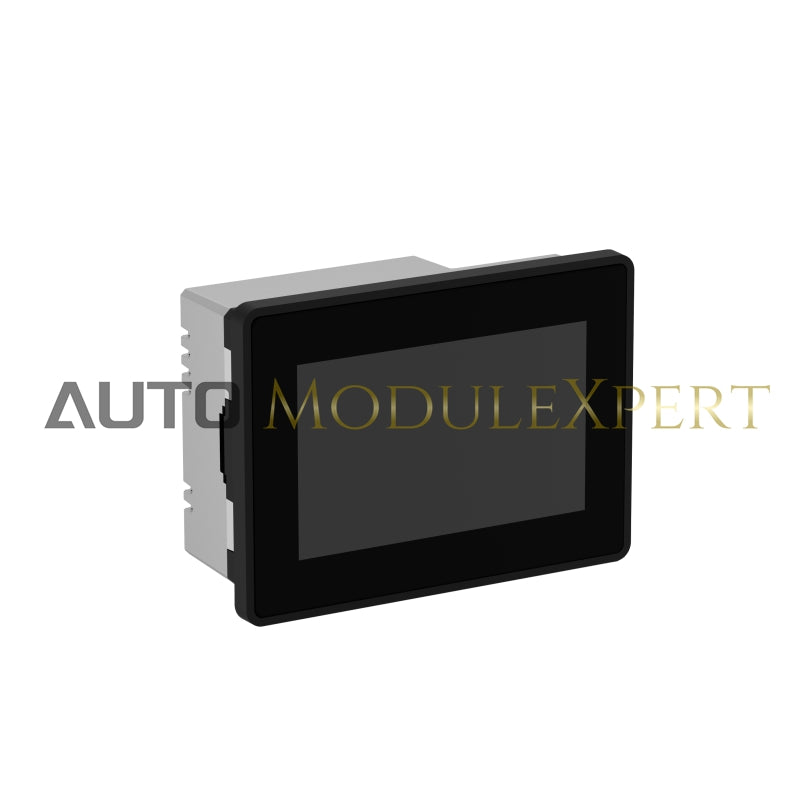

- Catalog Description: Control panel with 5" TFT multi-touch screen, 64K colors, 800 x 480 pixel resolution, Chromium Browser (CP6605)
- Long Description: CP6605, a CP600-Pro Control panel with 5" TFT multi-touch screen, 64K colors, 800 x 480 pixel resolution, Chromium Browser, supporting PB610 applications.
Ordering Information
- CN8: 85371091
- Invoice Description: Control panel with 5" TFT multi-touch screen, 64K colors, 800 x 480 pixels, Chromium Browser (CP6605)
- Made To Order: No
- Minimum Order Quantity: 1 piece
- Order Multiple: 1 piece
- Selling Unit of Measure: piece
Dimensions
- Product Net Weight: 0.74 kg
- Product Net Depth / Length: 64 mm
- Product Net Height: 107 mm
- Product Net Width: 147 mm
- Gross Weight: 1.3 kg
- Package Level 1 Depth / Length: 260 mm
- Package Level 1 Height: 120 mm
- Package Level 1 Width: 190 mm
- Package Level 1 Units: 1 carton
Technical Specifications
- Function: 5" TFT multi-touch screen, 64K colors, 800 x 480 pixels, Chromium Browser
- Screen Size: 5 inches
- Screen Color: 65536 colors
- Screen Resolution: 800 x 480 pixels
- Display Type: TFT, capacitive multitouch
-
Hardware Interfaces:
- Industrial Ethernet: 2
- USB: 1
- Other interfaces: 0
- Memory Size: 60000 kB
- Security: Level 50
- Input Voltage Type: DC
- Degree of Protection: Front IP66
- Supply Voltage: 18 to 32 V DC
- Built-In Depth (t2): 52 mm
- Ambient Air Temperature (Operation): -20°C to +60°C
Additional Information
- Product Main Type: CP6605
- Product Name: Control Panels
Classifications
- eClass: 27-33-02-01
- ETIM 8: EC001412 - Graphic panel
- UNSPSC: 32151703
Environmental Information
- SCIP: 242e2067-5af0-4439-a0e8-2e45f85eba25 (Germany)
- WEEE B2C / B2B: Business to Business
- WEEE Category: 5. Small Equipment (No external dimension more than 50 cm)
