General Information
- Extended Product Type: DX522
- Product ID: 1SAP245200R0001
- ABB Type Designation: DX522
- EAN: 4016779649186
- Catalog Description: Digital input/output module. 8 DI: 24VDC. 8 DO relay: 230VAC 3A (DX522)
-
Long Description:

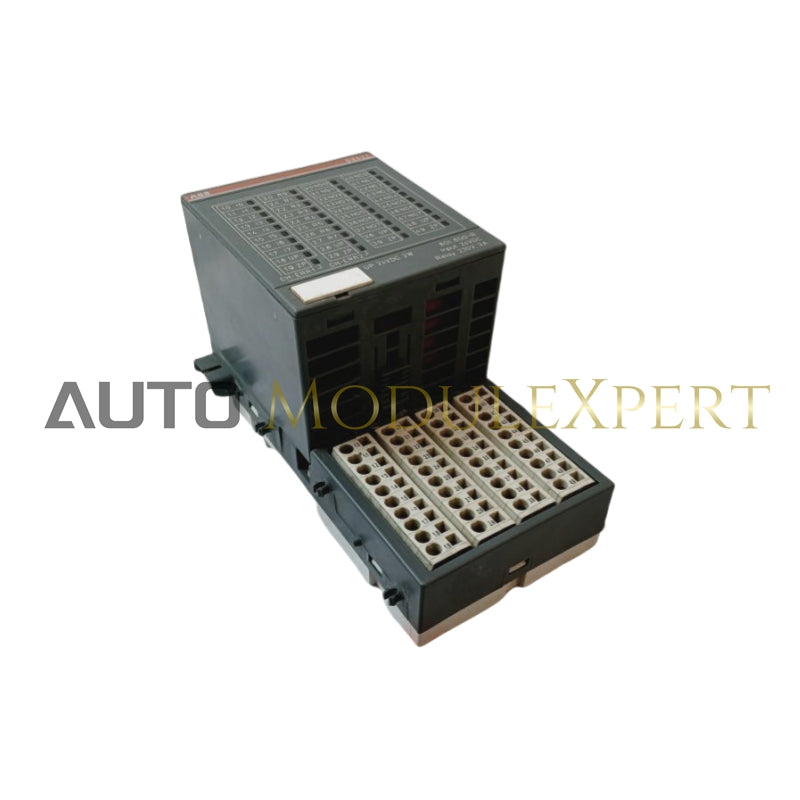

- DX522: S500 Digital input/output module
- 8 DI: 24VDC
- 8 DO relay: 230VAC 3A
- 2..3 wire
Ordering Information
- CN8: 85389091
- Invoice Description: Digital input/output module. 8 DI: 24VDC. 8 DO relay: 230VAC 3A (DX522)
- Made To Order: No
- Minimum Order Quantity: 1 piece
- Order Multiple: 1 piece
- Selling Unit of Measure: piece
Dimensions
- Product Net Weight: 0.177 kg
- Product Net Depth / Length: 62 mm
- Product Net Height: 76 mm
- Product Net Width: 67.5 mm
- Gross Weight: 0.201 kg
- Package Level 1 Depth / Length: 84 mm
- Package Level 1 Height: 72 mm
- Package Level 1 Width: 71 mm
- Package Level 1 Units: 1 carton
Technical Specifications
- Function: 8 DI: 24VDC, 8 DO relay: 230VAC 3A
- Number of Digital Inputs: 8
- Number of Digital Outputs: 8
- Number of Digital Configurable I/Os: 0
- Input Voltage Type: DC
- Input Current: 5 mA
- Maximum Input Voltage: 0 ... 30 V
- Delay Time (τ): 0.1 … 32 ms
- Output: Relay
- Output Voltage Type: AC
- Output Current: 3 A
- Output Voltage Maximum: 195.5 … 276 V
- Degree of Protection: IP20
- Supply Voltage: 20.4 … 28.8 V DC
Additional Information
- Product Main Type: DX522
- Product Name: Distributed Automation I/Os
Classifications
- eClass: 27-24-22-04
- ETIM 8: EC001419 - PLC digital I/O-module
- UNSPSC: 32151705
Environmental Information
- SCIP: 54022755-35db-4bd9-801a-5eba2aedd4e9 (Germany)
- WEEE B2C / B2B: Business To Business
- WEEE Category: 5. Small Equipment (No External Dimension More Than 50 cm)
