Overview

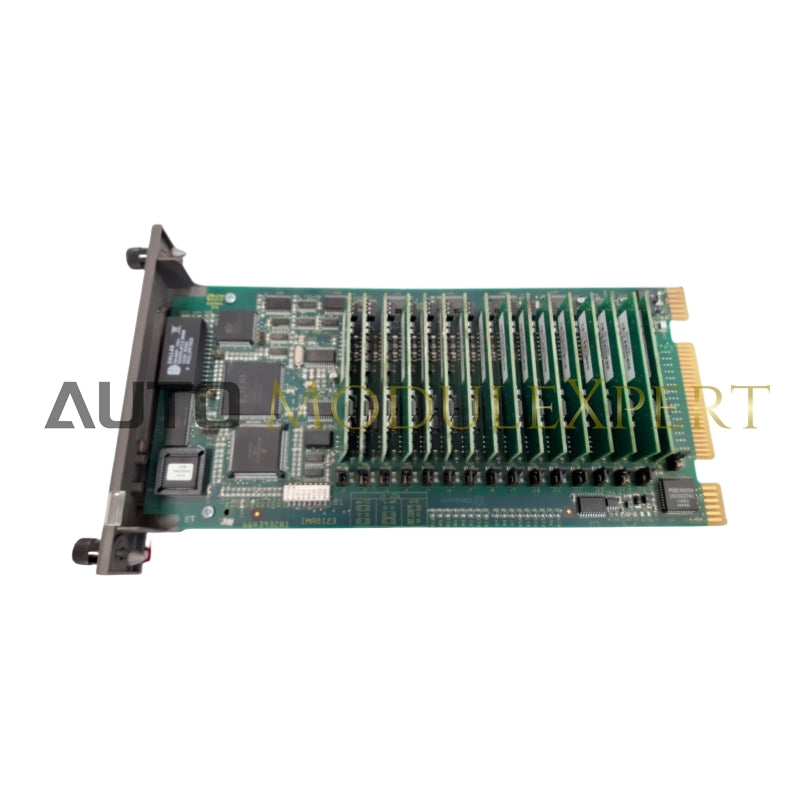

The IMASI23 Analog Input Module is a component of the Harmony rack I/O system, integrated within the Symphony Enterprise Management and Control System. It features 16 analog input channels capable of interfacing with isolated thermocouples, millivolt signals, RTDs, and high-level analog signals. Each channel is equipped with its own 24-bit analog-to-digital converter, allowing for precise data conversion. Channels can be individually configured to accommodate different input types. This module enables a controller to accurately monitor and control processes by converting and processing analog signals.Specifications
Power Requirements:
- Operating Voltage: 5 VDC at 500 mA typical, maximum 750 mA
Overvoltage Category (IEC 61010-1):
- Category I: For circuits above 150V
- Category II: For circuits below 150V
Analog Input Channels:
-
Thermocouples: 16 independently configured channels
- Types: B, E, J, K, L, N (14 AWG), N (28 AWG), R, S, T, U
- Chinese types: E and S
-
3-Wire RTD:
- 100 Ω platinum: U.S. Lab Standard
- 100 Ω platinum: U.S. Industry Standard
- 100 Ω platinum: European Standard
- 120 Ω nickel
- 10 Ω copper
- Chinese 53 Ω copper
- Millivolt: -100 mV to +100 mV, 0 to 100 mV
-
High Level:
- 1 to 5 VDC
- 0 to 5 VDC
- 0 to 10 VDC
- -10 VDC to +10 VDC, or user-specified range within -10 VDC and +10 VDC
- Current: 4 to 20 mA, system or external power
Input Impedance:
- Current: 10 MΩ minimum (mV, TC)
- Voltage: 100 kΩ minimum (V, mA)
A-to-D Resolution:
- 24 bits
Conversion:
- 180 msec for all 16 channels; each channel has a dedicated A/D converter
Cold Junction Reference Accuracy:
- ± 0.5° C
Software Temperature Linearization Accuracy:
- ± 0.1° C
Mounting:
- Occupies a single slot in a standard module mounting unit
Shipping Weight:
- 1.146 kg (2.5 lb)
Container Size:
- 27.94 cm x 35.56 cm x 5.54 cm (11 in. x 14 in. x 3 in.)
