Overview

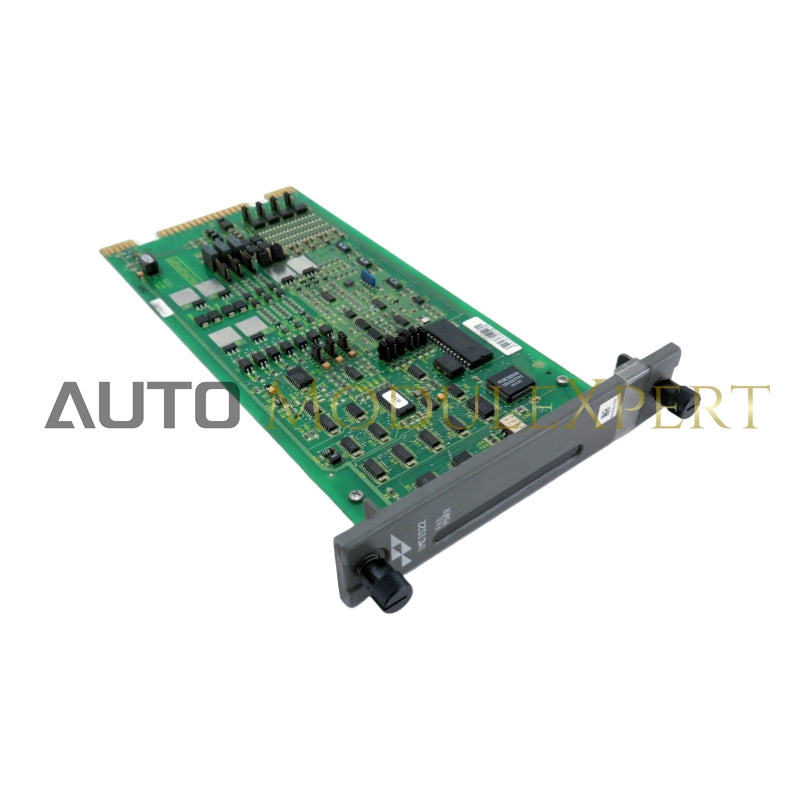

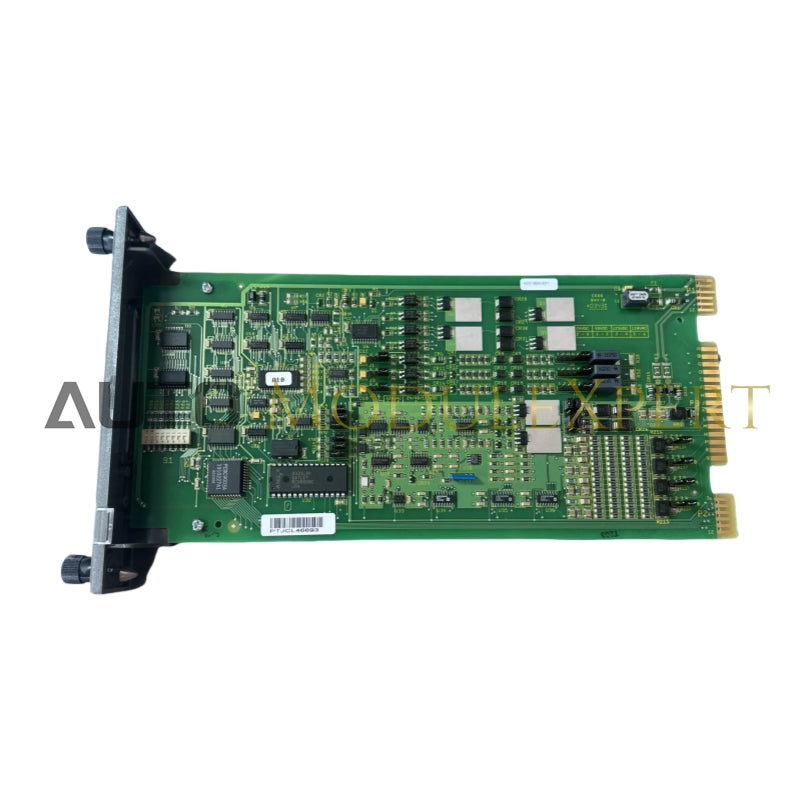

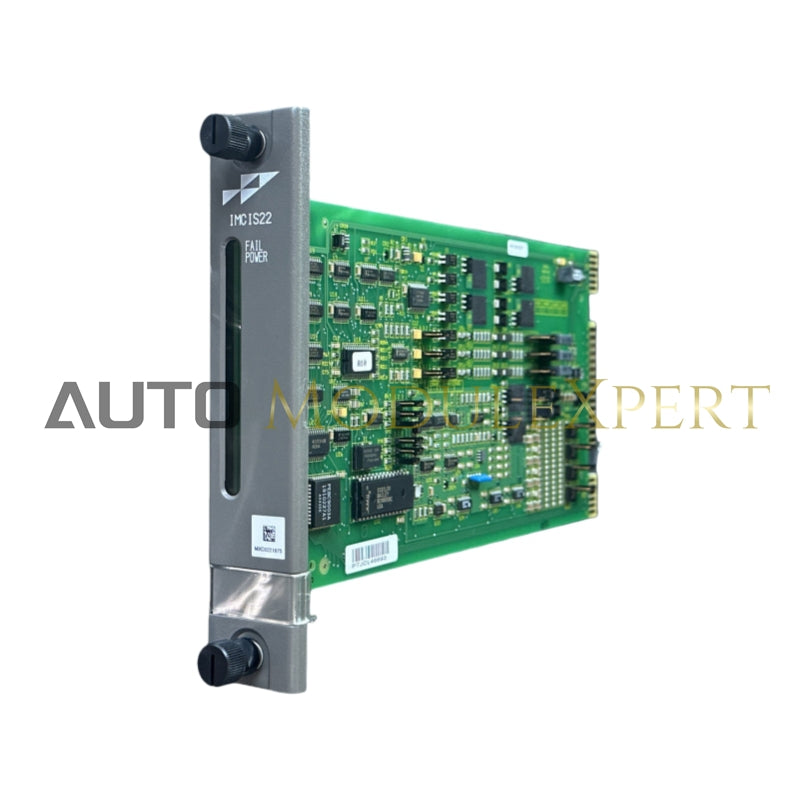

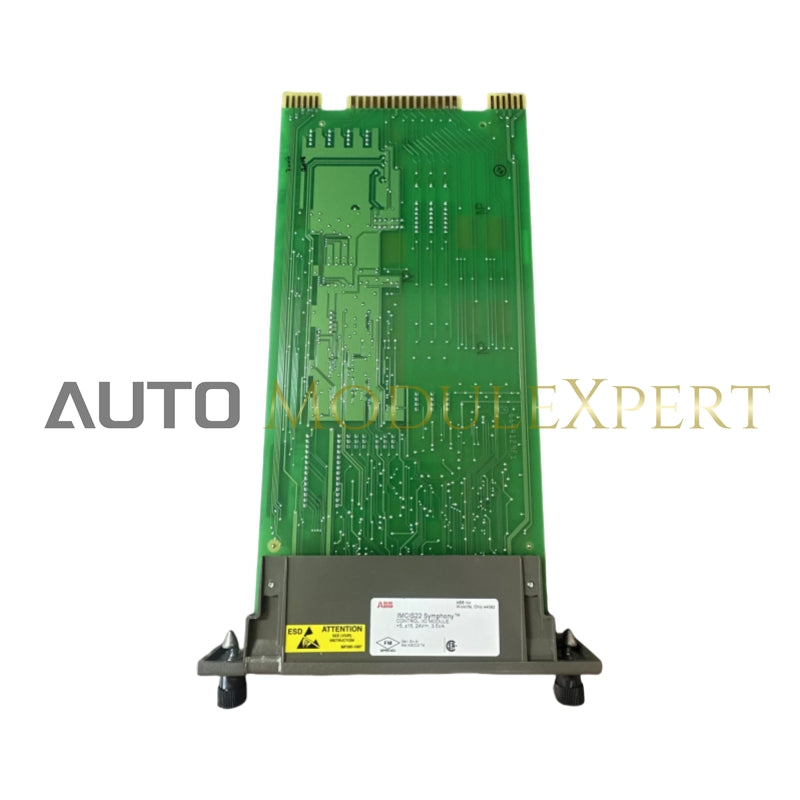

The IMCIS22 Control I/O and IMQRS22 Quick Response I/O modules are part of the Symphony Enterprise Management and Control System, designed for Harmony racks. These modules handle the integration of four analog and three digital process signals from the field into the system for processing and monitoring. Additionally, they provide four digital and two analog outputs for controlling processes.Specifications
Power Requirements
-
Operating Voltage:
- 5 VDC (±5%)
- +15 VDC (-2.5%, +5%)
- -15 VDC (-5%, +2.5%)
- +24 VDC (±10%) (supplied via P3 connector from termination unit)
-
Overvoltage Category:
- Category II (per IEC 61010-1)
- Category I for circuits above 150 V
- Category II for circuits below 150 V
Digital Inputs/Outputs
-
Digital Inputs:
- 3, optically isolated
-
Digital Outputs:
- 4, open collector, optically isolated
- Off output voltage: 24 VDC (±10%) or 48 VDC (±10%)
- On output voltage: 1.5 VDC maximum
- Off output current: 10 µA maximum
-
On output current:
- 250 mA maximum at 24 VDC
- 125 mA maximum at 48 VDC
Analog Inputs/Outputs
-
Analog Inputs:
- 4, 1-5 VDC (differential/single-ended) or 4-20 mA
- Termination unit configured: 1 powered or unpowered current (4-20 mA)
- Single-ended or differential voltage (1-5 VDC)
- Input impedance: >1 MΩ
- Common mode voltage: ±10 VDC
-
IMCIS22:
- Normal mode rejection: >76 dB at 50/60 Hz
- Common mode rejection: 90 dB from DC to 60 Hz
- Response time per channel (100% step change): 2.4 sec to 95% of final value
-
IMQRS22:
- Normal mode rejection: 37 dB at 50/60 Hz
- Common mode rejection: 53 dB from DC to 60 Hz
- Response time per channel (100% step change): 0.27 sec to 95% of final value
-
A/D Resolution:
- 12 bits for analog inputs
-
Analog Outputs:
- 2, 4-20 mA or 1-5 VDC
-
Output load:
- Current load: 600 Ω / 600 mH (maximum)
- Voltage load: >1 kΩ
- D/A resolution: 10 bits for analog outputs
- Current limiting: 50 mA (nominal)
- Short circuit protection
Accuracy and Repeatability
-
Analog Accuracy at 25°C (77°F), standard condition:
- Terminal-based linearity: ±0.03% of full scale range
- Repeatability: ±0.03% of full scale range
- Deadband: ±0.03% of full scale range
- Accuracy: ±0.1% of full scale range
-
Output at 25°C (77°F), standard condition:
- Terminal-based linearity: ±0.1% of full scale range
- Repeatability: ±0.05% of full scale range
-
Accuracy:
- Voltage mode: ±0.15% of full scale range
- Current mode: ±0.25% of full scale range
-
Temperature Effect (0°C to 70°C / 32°F to 158°F):
- ±0.002% of full scale range per °C
-
Input Cross Talk Rejection (Channel-to-Channel):
- 50 dB (minimum) at 25°C (77°F)
- -78 dB (typical) at 25°C (77°F)
Mounting and Environmental
-
Mounting:
- Occupies one slot in a standard module mounting unit
-
Environmental:
-
Ambient Temperature (per IEC-68-2-1, 2,14):
- Internal cabinet rating: 0°C to 70°C (32°F to 158°F)
-
Relative Humidity (per IEC 68-2-3):
- 5% to 95% up to 55°C (131°F) (non-condensing)
- 5% to 45% at 70°C (158°F) (non-condensing)
-
Pollution Degree:
- Degree 1
-
Atmospheric Pressure:
- Sea level to 3 km (1.86 mi)
-
Air Quality (per ISA S71.04 Class LA, LB, LC - Level 1):
- Non-corrosive
-
Ambient Temperature (per IEC-68-2-1, 2,14):
