Overview

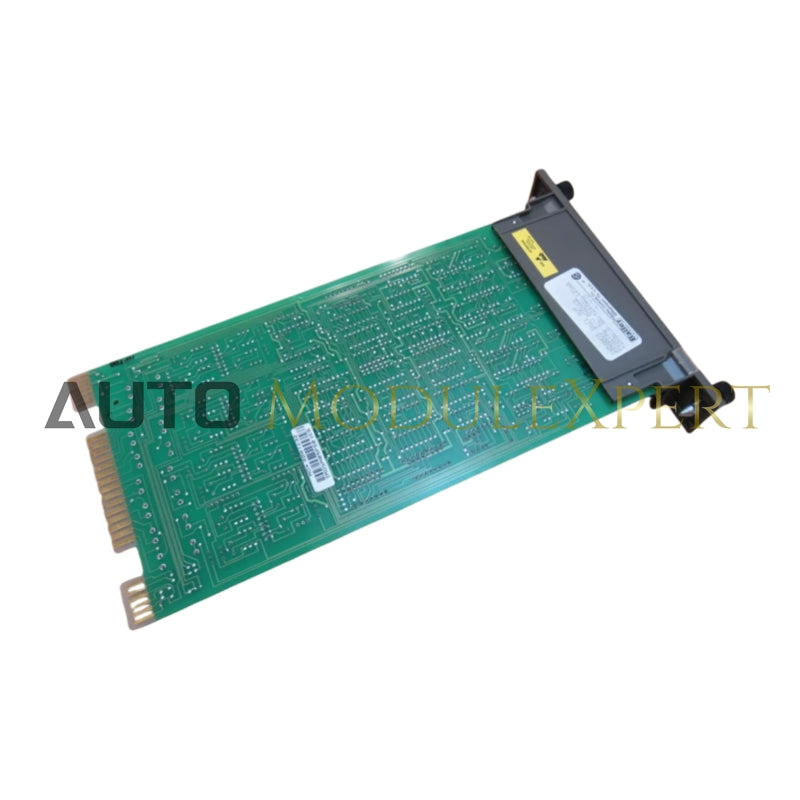

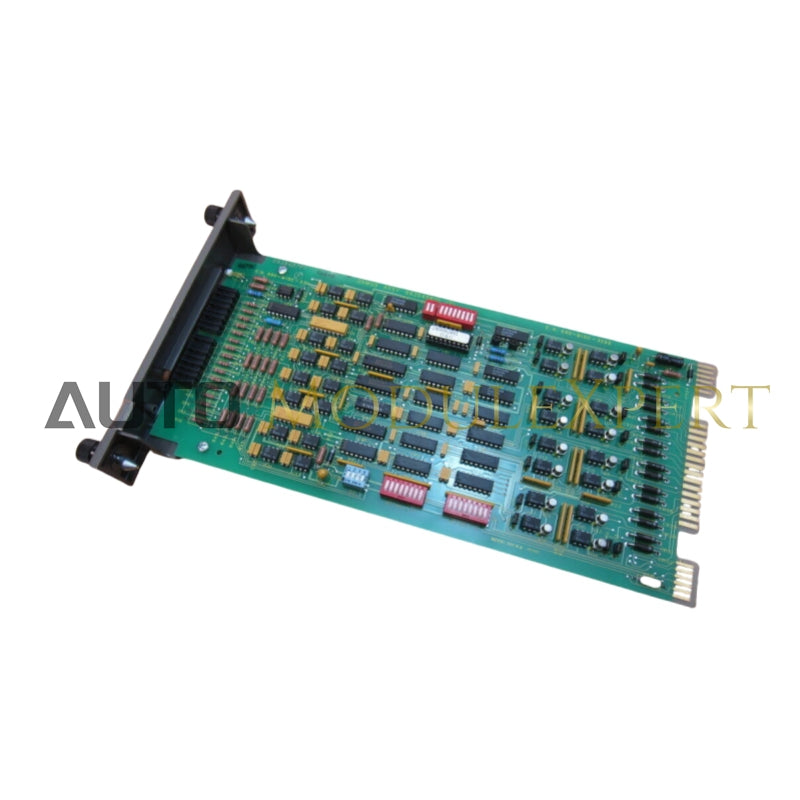

The Digital Slave Module (IMDSM05) serves as an interface for up to sixteen digital I/O field signals within the Infi 90 Process Management System. It enables master modules to effectively monitor and control various processes by handling digital inputs and outputs.Specifications
Power Supply:
- ± 5 VDC Logic Supply ± 5%
- ± 24 VDC I/O Supply: 21.6 VDC to 27.0 VDC
Current Consumption:
- 5 VDC: 757 mA typical
- 5 VDC: 867 mA maximum
Dissipation:
- 4.6 Watts (logic)
- 5.0 Watts (I/O)
Inputs:
-
24 V Logic:
- High Level Input Voltage: 4.0 Volts minimum
- Low Level Input Voltage: 16.5 Volts maximum
- Low Level Input Current: -11.8 mA maximum
Outputs:
-
24 V Logic:
- Low Level Output Voltage: 2.0 V maximum
- High Level Output Current: 120 mA
- Sink Current: 10 V typical (sink current = 120 mA)
- Maximum Leakage Current: 100 µA maximum
Propagation Delay Times:
-
Input to Output:
- Low to High: 50 µsec. typical
- High to Low: 25 µsec. typical
-
Output:
- Low to High: 25 µsec. typical
- High to Low: 100 µsec. typical
Isolation Voltage:
- 150 V RMS Channel to Channel
- 150 V RMS Channel to Logic
Surge Withstand:
- Meets IEEE Capability Standard 472-1974 requirements for input and output channels.
Maximum Wire Sizes:
- 12 AWG from field wiring to NTDI01
Environmental Specifications:
- Ambient Temperature: 0°C to 70°C (32°F to 158°F)
-
Relative Humidity:
- 0% to 95% up to 55°C (131°F) (non-condensing)
- 0% to 45% at 70°C (158°F) (non-condensing)
- Atmospheric Pressure: Sea level to 3 km (1.86 miles)
- Air Quality: Noncorrosive
Mounting:
- Uses 1 slot in Infi 90 Module Mounting Unit.
Certification:
- CSA certified for use as process control equipment in an ordinary (non-hazardous) location.
