Overview

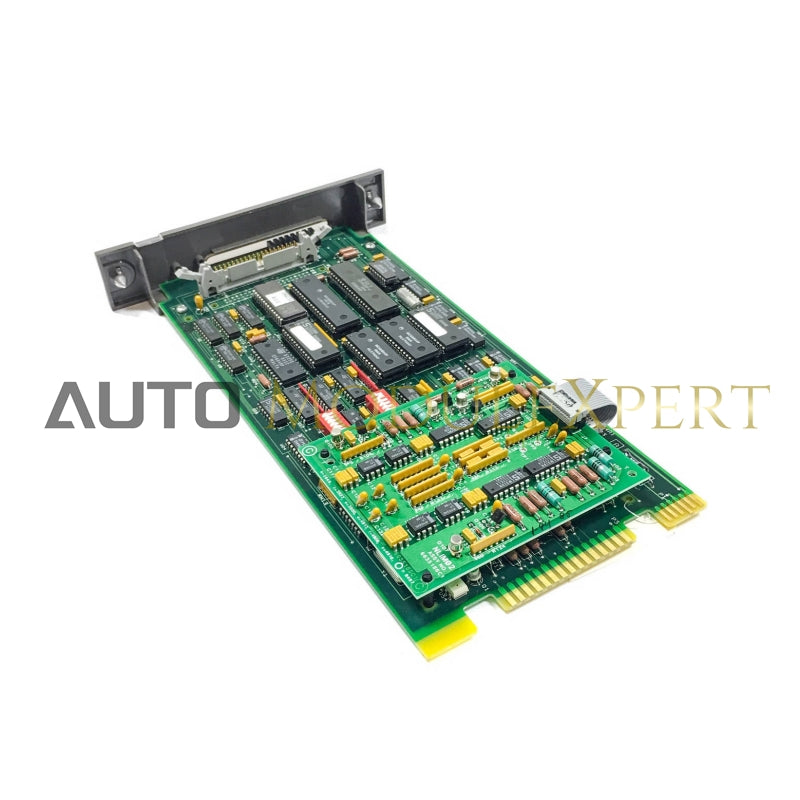

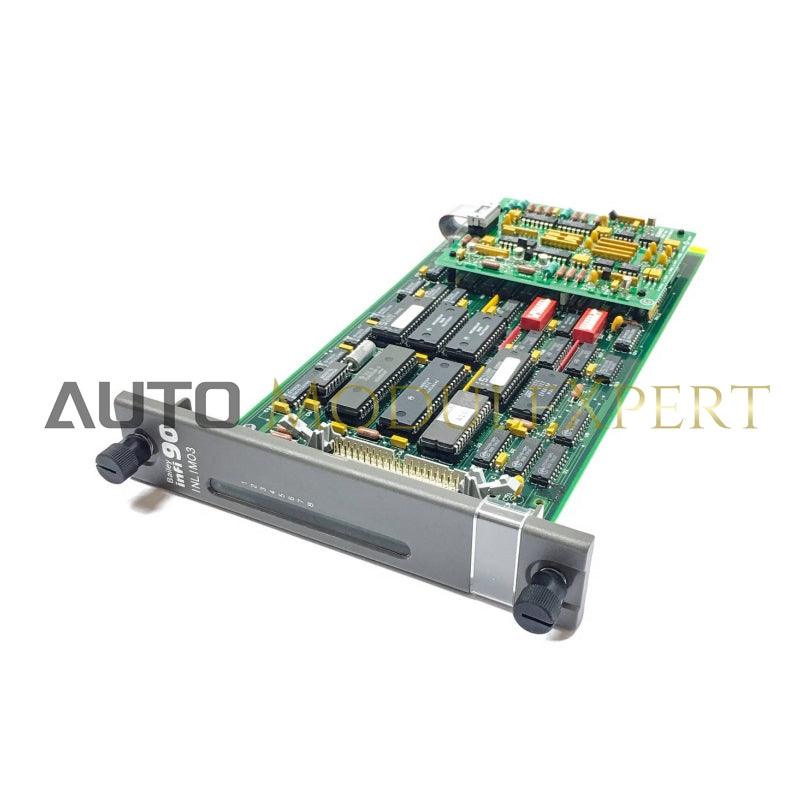

The Loop and Bus Interface Modules (LIM/BIM) provide the principal communication interface between INFI 90 Process Control Units (PCU) and Plant Loop. Key features include:
- Plant Loop: A high-speed (500 kbaud) serial communication highway shared by all INFI 90 modules.
- Node Capacity: Supports up to 63 nodes in any combination on the loop.
- Compatibility: INLIM03 and INBIM02 are upward compatible with Network 90 NLIM02 and NBIM02.
Specifications
Memory
- LIM: 2 kbytes RAM, 4 kbytes ROM
- BIM: 32 kbytes RAM, 16 kbytes ROM
Power Requirements
-
LIM:
- +5 VDC @ 2.0 amps; 10 watts nominal
- ±15 VDC @ 80 mA; 1.2 watts nominal
-
BIM:
- +5 VDC @ 1.0 amps; 5 watts nominal
- +15 VDC @ 150 mA; 2.25 watts nominal
- -15 VDC @ 120 mA; 1.80 watts nominal
System Capability
- Maximum of 63 nodes per system.
- Supports any combination of PCU, OIS, or NIU nodes.
Communication
- Rate: 500 kbaud
- Maximum throughput: 800 messages/second
- Synchronization time: 100 milliseconds maximum
Cable Specifications
- Plant Loop (node-to-node): 2000 meters (6561 feet) maximum
- Loop Interface (LIM-to-TPL/IPL): 61 meters (200 feet) maximum
Certification
- CSA Certified: For use as process control equipment in ordinary (non-hazardous) environments.
Environmental Specifications
-
Ambient Temperature:
- Operating range: 0°C to 70°C (32°F to 158°F)
-
Relative Humidity:
- Up to 55°C (131°F): 0% to 95% (non-condensing)
- Up to 70°C (158°F): 0% to 45% (non-condensing)
- Atmospheric Pressure: Sea level to 3 km (1.86 miles)
