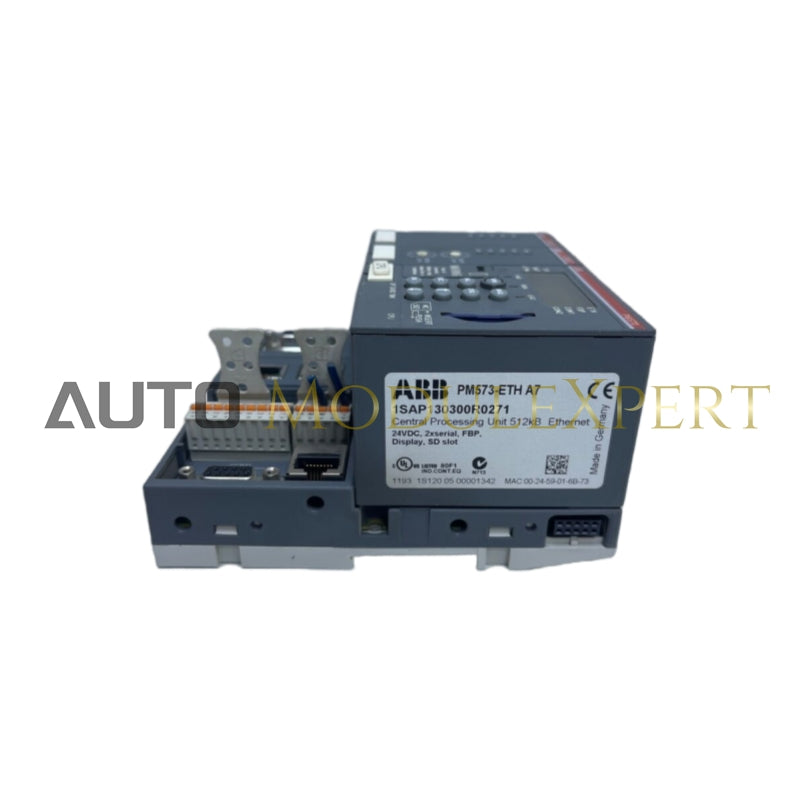

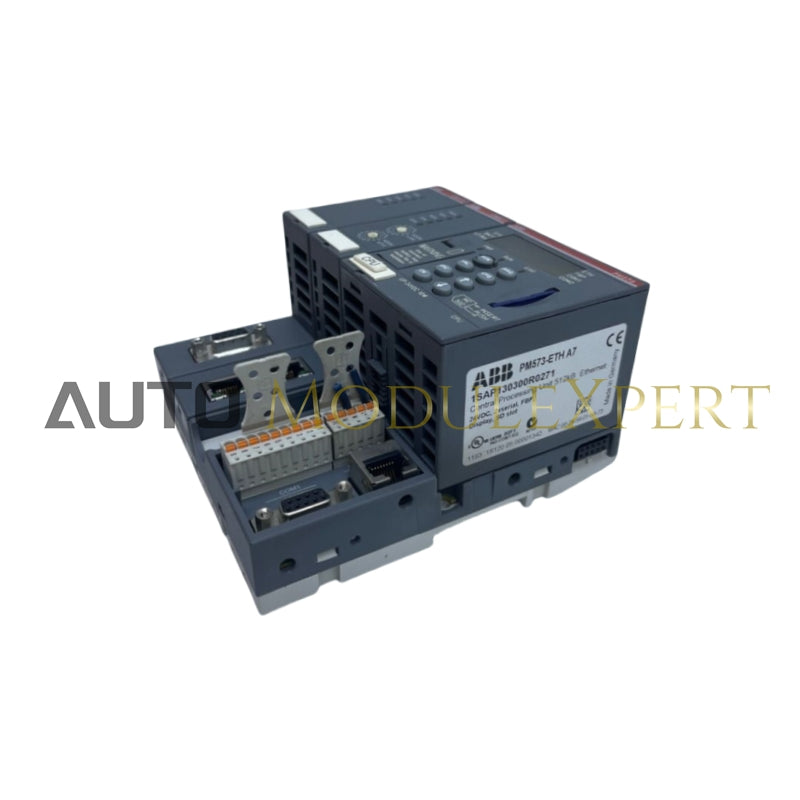

General Information
- Extended Product Type: PM573-ETH
- Product ID: 1SAP130300R0271
- ABB Type Designation: PM573-ETH
- EAN: 4016779712378
- Catalog Description: PM573-ETH: AC500, Programmable Logic Controller, 512kB
- Long Description: PM573-ETH: AC500 Programmable Logic Controller, 512kB, 24V DC, Ethernet, 2x RS232/485, FBP SD-Card Slot, LCD Display
Additional Information
- ABB Type Designation: PM573-ETH
-
Certificates:
- ABS Certificate: 1SAA960002-0106
- BV Certificate: 1SAA960003-0204
- CSA Certificate: 1SAA960000-1712
- DNV Certificate: 1SAA960002-0306
- GL Certificate: 1SAA960004-0409
- GOST Certificate: 1SAA962000-2703
- LR Certificate: 1SAA960002-0506
- RINA Certificate: 1SAA960003-0807
- RMRS Certificate: 1SAA960001-0706
-
Ambient Air Temperature:
- Operation: 0 ... +60 °C
- Storage: -40 ... +70 °C
-
Country of Origin:
- Germany (DE), United States (US), China (CN), Finland (FI)
- Customs Tariff Number: 85389091
- Degree of Protection: IP20
Communication & Interface
-
Communication:
- Serial and Ethernet interfaces for communication and programming
- Communication Interface: Serial/FBP/Ethernet
-
Communication Speed:
- Logic: 0.05 - 0.06 ms per 1000 instructions
- Word: 0.05 - 0.09 ms per 1000 instructions
- Floating-point: 0.5 - 0.70 ms per 1000 instructions
- Fieldbus Interface Type: Onboard Ethernet TCP/IP
- Serial Port 1 Type: RS232 / RS485 configurable for Programming, Modbus Master/Slave, ASCII, CS31 Master
Memory & Display
-
Memory:
- User Data Memory Size: 512 kB
- User Program Memory Size: 512 kB
- User Data Memory Type: Flash EPROM
- User Program Memory Type: Flash EPROM, Non-volatile RAM, SD Card
-
Display:
- Type: LCD
- Number of Display Lines: 1
- Number of Function Keys: 8
- Number of LEDs: 3
I/O Options
-
I/O Capacity:
- Maximum Number of Analog I/Os: 160 AI, 160 AO (local max. 10 extension modules)
- Maximum Number of Digital I/Os: 320 DI, 240 DO/DC (local max. 10 extension modules)
Mechanical Specifications
-
Mounting:
- Position: Horizontal; vertical possible with derating
- On DIN Rail: TH35-15 (35 x 15 mm) per IEC 60715
-
Dimensions:
- Product Depth: 72 mm
- Product Height: 76 mm
- Product Length: 62 mm
- Product Width: 67.5 mm
- Net Weight: 0.15 kg
Electrical Specifications
- Power Supply: 24 V DC
- Primary Voltage: 24 V DC
- Secondary Current: 0.2 A
- Maximum Operating Altitude: 2000 m
Environmental & Compliance
-
Certificates:
- Declaration of Conformity - C-Tick: 1SAA960000-3302
- Declaration of Conformity - CE: 1SAD938504-0161
- Declaration of Conformity - KCC: 1SAA960001-4801
- RoHS Status: Complies with EU Directive 2002/95/EC
- Environmental Information: 1SAA960007-2406
Software & Documentation
- Programming Software: Automation Builder
- Data Sheet, Technical Information: 2CDC125002B0207
- Instructions and Manuals: 2CDC125080M0202
