General Information
- Extended Product Type: TU508-ETH
- Product ID: 1SAP214000R0001
- ABB Type Designation: TU508-ETH
- EAN: 4016779649612

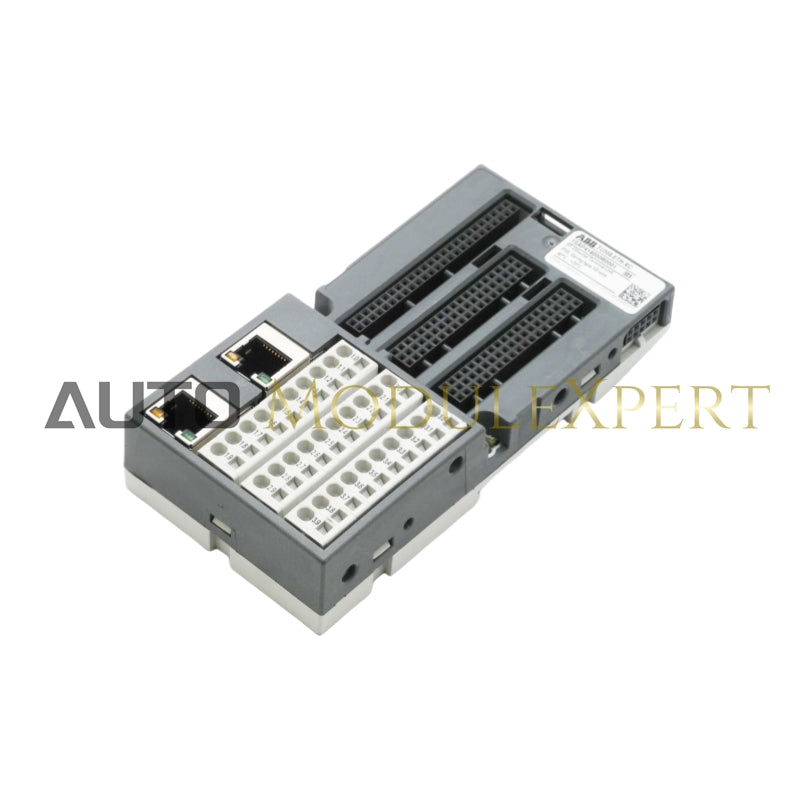

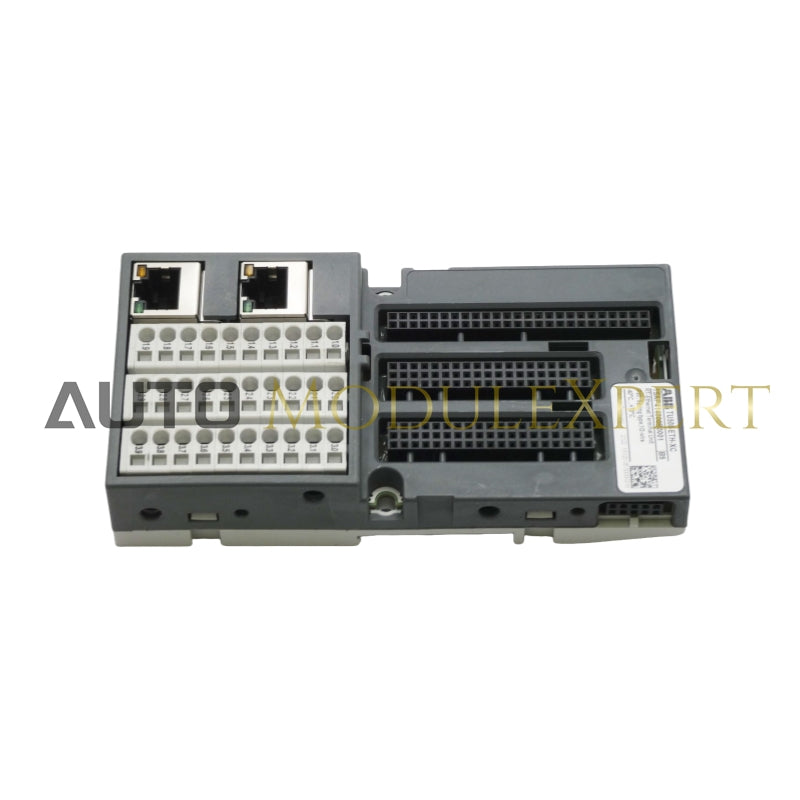

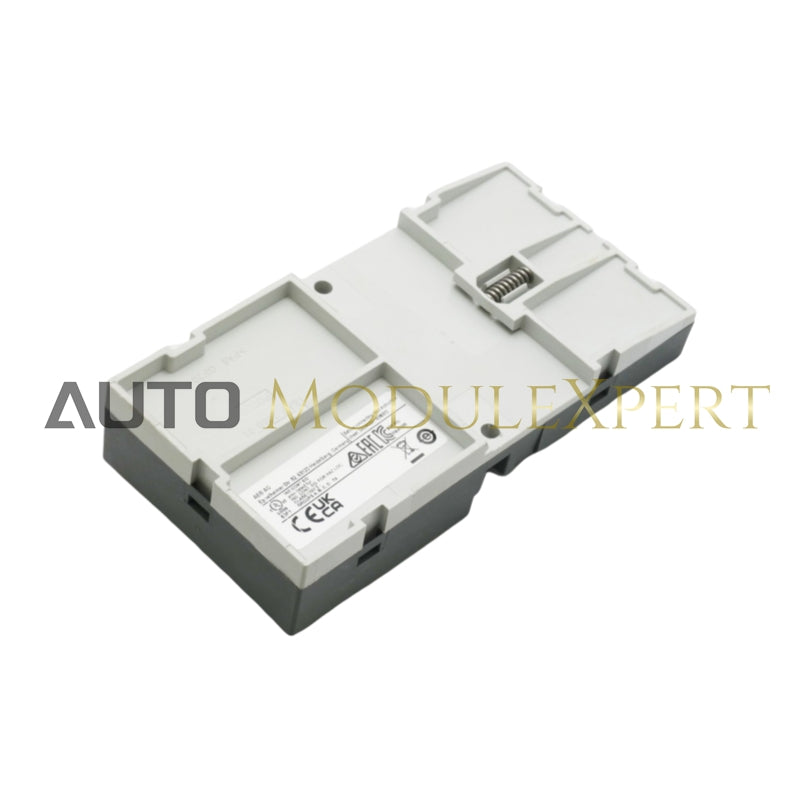

- Catalog Description: Interface terminal unit for Ethernet protocols, with spring terminals (TU508-ETH)
- Long Description: TU508-ETH: S500 Interface terminal unit for Ethernet protocols, spring terminals, 2 RJ45 connectors
Ordering Information
- CN8 Code: 85389091
- Invoice Description: Interface terminal unit for Ethernet protocols, with spring terminals (TU508-ETH)
- Made to Order: No
- Minimum Order Quantity: 1 piece
- Order Multiple: 1 piece
- Selling Unit of Measure: Piece
Dimensions
- Product Net Weight: 0.168 kg
- Product Net Depth/Length: 28 mm
- Product Net Height: 135 mm
- Product Net Width: 67.5 mm
- Gross Weight: 0.2 kg
-
Package Level 1 Dimensions:
- Depth/Length: 147 mm
- Height: 40 mm
- Width: 78 mm
- Units: 1 carton
Technical Specifications
- Function: For Ethernet protocols, with spring terminals
- Degree of Protection: IP20
- Supply Voltage: 24 V DC
-
Ambient Air Temperature:
- Operation: 0 ... +60 °C
- Storage: -40 ... +70 °C
Additional Information
- Product Main Type: TU508
- Product Name: Distributed Automation I/Os
Classifications
- eClass: 27-24-22-92
- ETIM 8: EC000810 - PLC mounting rack
- UNSPSC: 32151703
Environmental
- SCIP: f1c51aad-1de0-4120-827a-874c3b22f529 (Germany - DE)
- WEEE B2C/B2B: Business To Business
- WEEE Category: 5. Small Equipment (No external dimension more than 50 cm)
