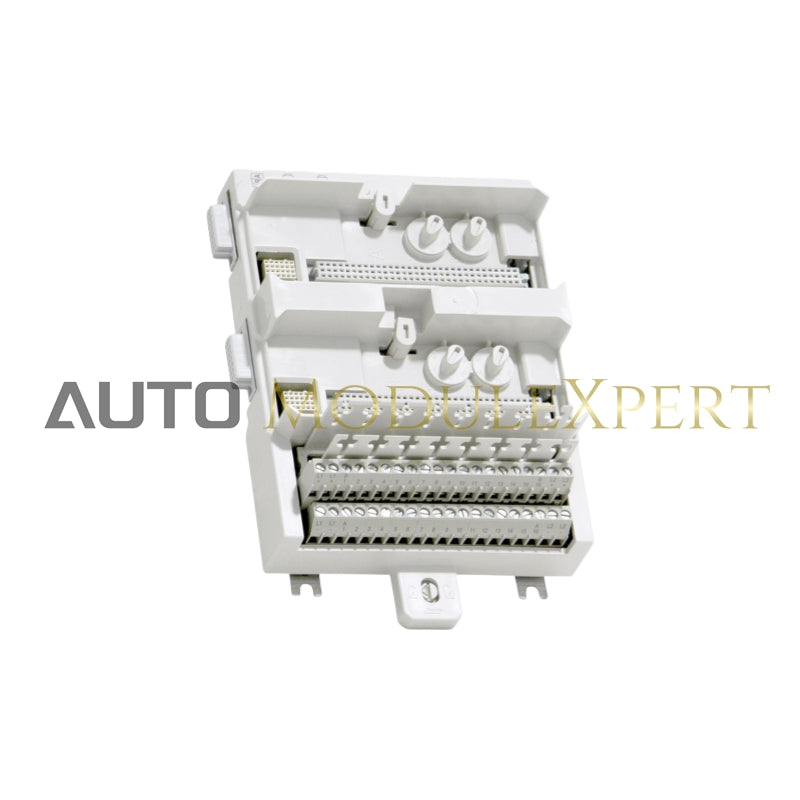

General Info
- Article Number: 3BSE021447R1
- Type: Redundant
- Connection: Terminal block
- Channels: 8
- Voltage: 50 V
- Mounting: Vertical
- Mounting Detail: 55 ºC (131 ºF)
- Use with I/O: AI845, AI880, AI880A, and DP840
-
Process Connections: 40 up to 8 I/O channels (2 terminals per channel)
- 4 Process power
- 20 Process power (0 V)
- Single/Redundant I/O: Redundant
Detailed Data
- Maximum Current per I/O Channel: 2 A
- Maximum Current Process Connection: 5 A
-
Acceptable Wire Sizes:
- Solid: 0.2 - 4 mm²
- Stranded: 0.2 - 2.5 mm², 24 - 12 AWG
- Recommended Torque: 0.5 - 0.6 Nm
- Stripping Length: 7 mm
- Dielectric Test Voltage: 500 V a.c.
Environment and Certification
- CE Mark: Yes
-
Electrical Safety:
- EN 61010-1, UL 61010-1
- EN 61010-2-201, UL 61010-2-201
-
Hazardous Location:
- C1 Div 2 cULus
- C1 Zone 2 cULus
- ATEX Zone 2
- Marine Certification: Not applicable
- Operating Temperature: 0 to +55 °C (+32 to +131 °F); approvals are issued for +5 to +55 °C
- Storage Temperature: -40 to +70 °C (-40 to +158 °F)
- Pollution Degree: Degree 2, IEC 60664-1
- Corrosion Protection: ISA-S71.04: G3
- Relative Humidity: 5 to 95%, non-condensing
- Max Ambient Temperature: 55 °C (131 °F)
- Protection Class: IP20 (IEC 60529)
- Mechanical Operating Conditions: IEC/EN 61131-2
- EMC: EN 61000-6-4, EN 61000-6-2
- Overvoltage Categories: IEC/EN 60664-1, EN 50178
- Equipment Class: Class I (earth protected) according to IEC 61140
- RoHS Compliance: EN 50581:2012
- WEEE Compliance: DIRECTIVE/2012/19/EU
Dimensions
-
Width:
- 131 mm (5.16”) including connector
- 124 mm (4.88”) edge to edge installed
- Depth: 64 mm (2.52”) including terminals
- Height: 186.5 mm (7.34”) including locking device
- Weight: 0.6 kg (1.3 lbs.)
