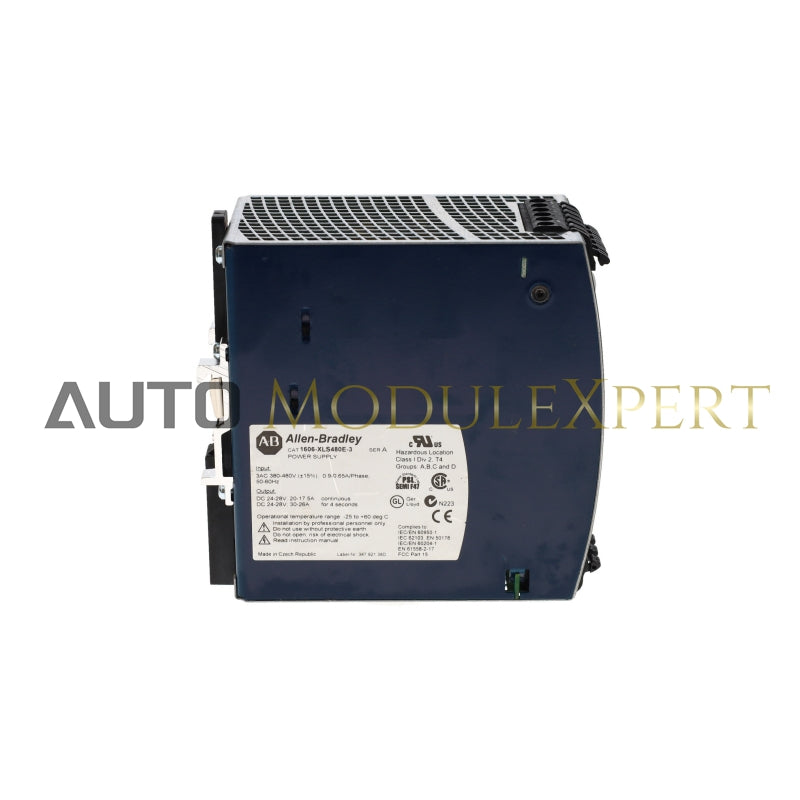

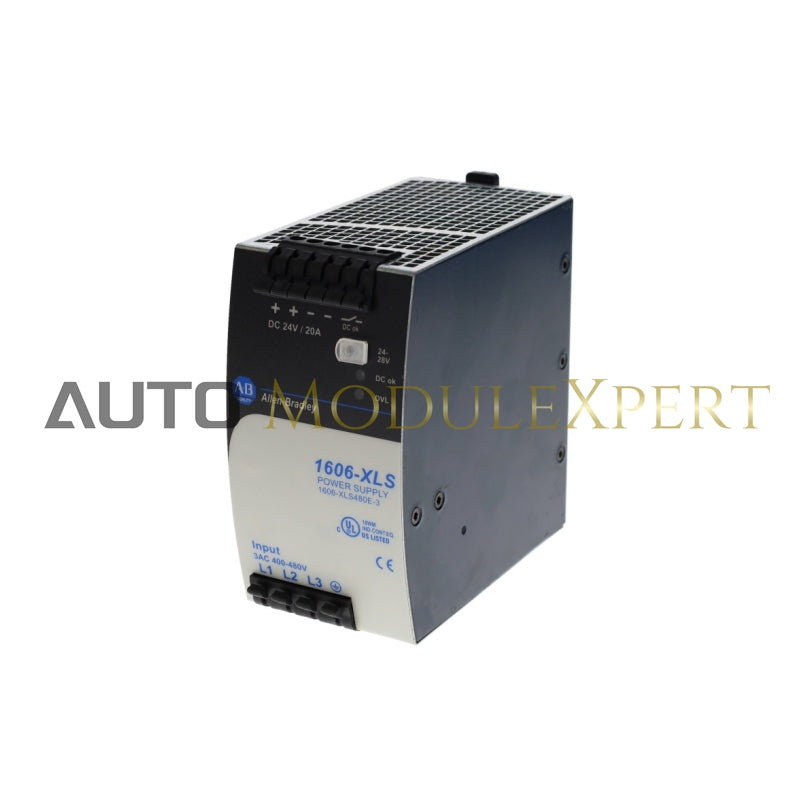

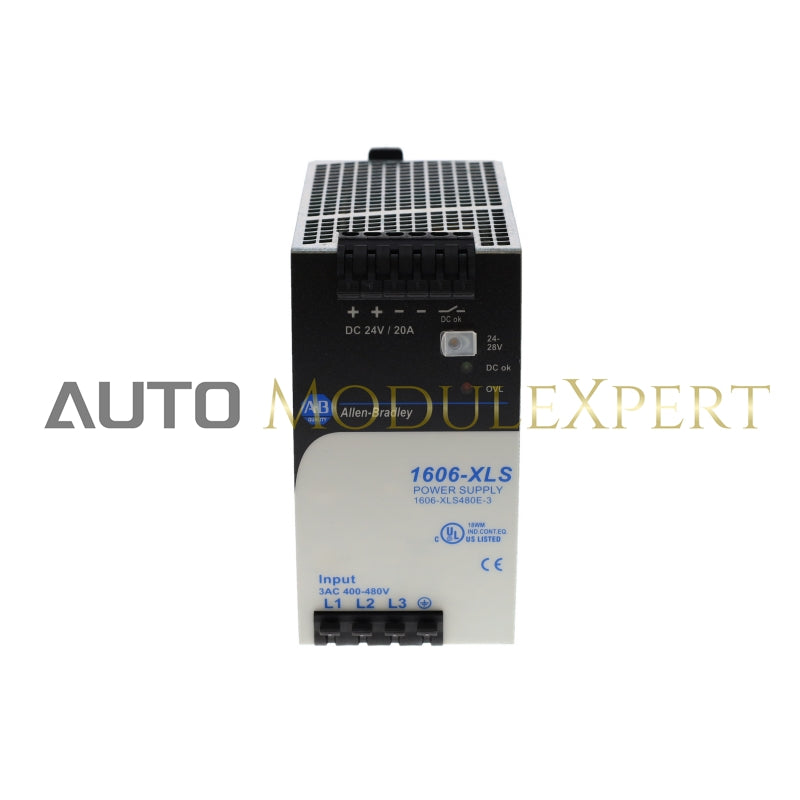

Power Supply Overview: HP 3-Phase 380-480VAC to 24-28VDC 480W 20A
- High Efficiency: Designed to minimize heat output, reducing operating costs.
- Redundancy Options: Optional redundancy modules provide backup power for critical applications.
- Compact Design: Space-saving footprint maximizes usable space in the panel.
Specifications
- Product Series: Bul. 1606-XLS
- Component Type: Power Distribution & Protection
- Input Type: Switched Mode Power Supply (SMPS)
Input Specifications:
- Nominal Input Frequency: 50 / 60 Hz
- Minimum Input Frequency: 47 Hz
- Maximum Input Frequency: 63 Hz
- Input Voltage (AC): 380 V AC (min) to 480 V AC (max)
- Nominal Current: 0.65 A
- Inrush Current (Max): 4 A
- Nominal Voltage (AC, L-L): 230 V AC
Output Specifications:
- Output Voltage (DC): 24 V DC (min) to 28 V DC (max)
-
Output Current (Rated): 20 A
- At 24 V DC: 20 A
- At 28 V DC: 17.5 A
- Rated Power Output (Pout, Real): 480 W
- Ripple Voltage (P-P, Max): 100 mVpp
- Hold-Up Time (Min): 19 ms
- MTBF (Mean Time Before Failure, Min): 690,000 hours
- Efficiency (Electrical, Min): 94.8%
Physical Characteristics:
- Mounting: DIN-35 Rail Mount
- IP Rating: IP20
-
Dimensions:
- Height: 124 mm
- Width: 65 mm
- Depth: 127 mm
- Weight: 0.87 kg
