Overview

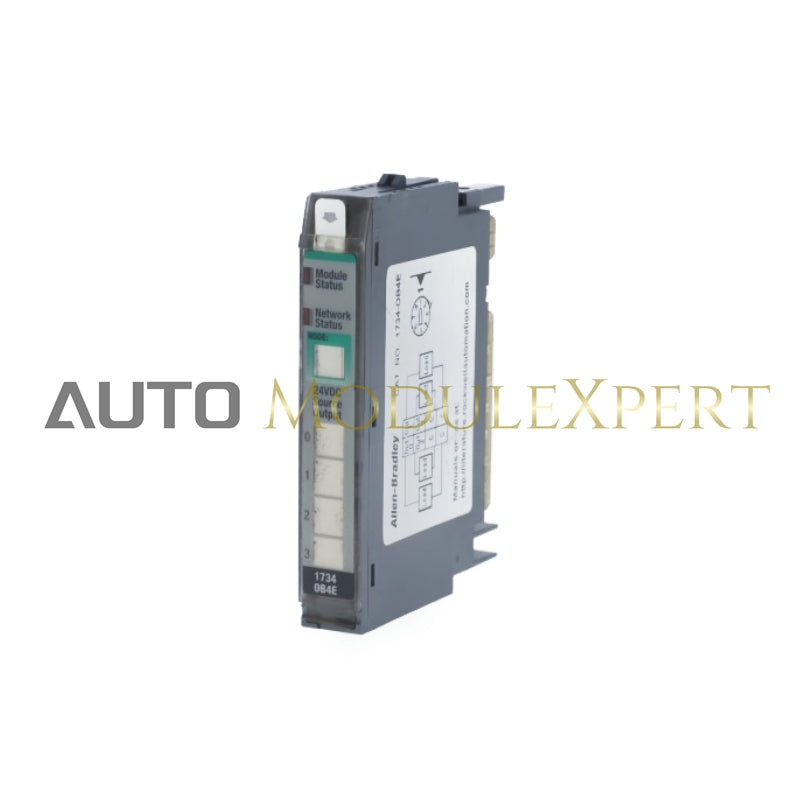

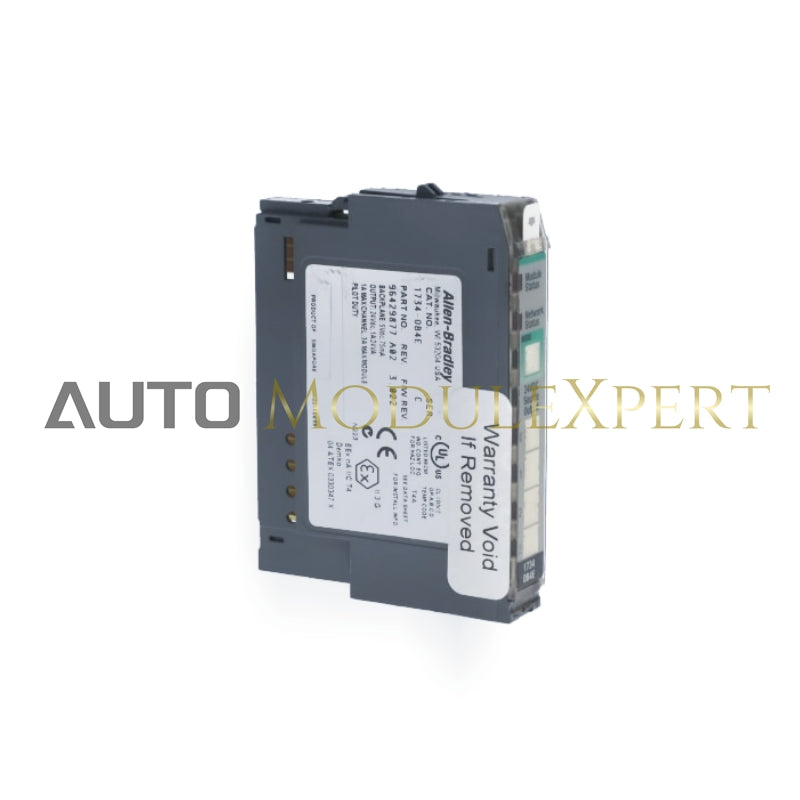

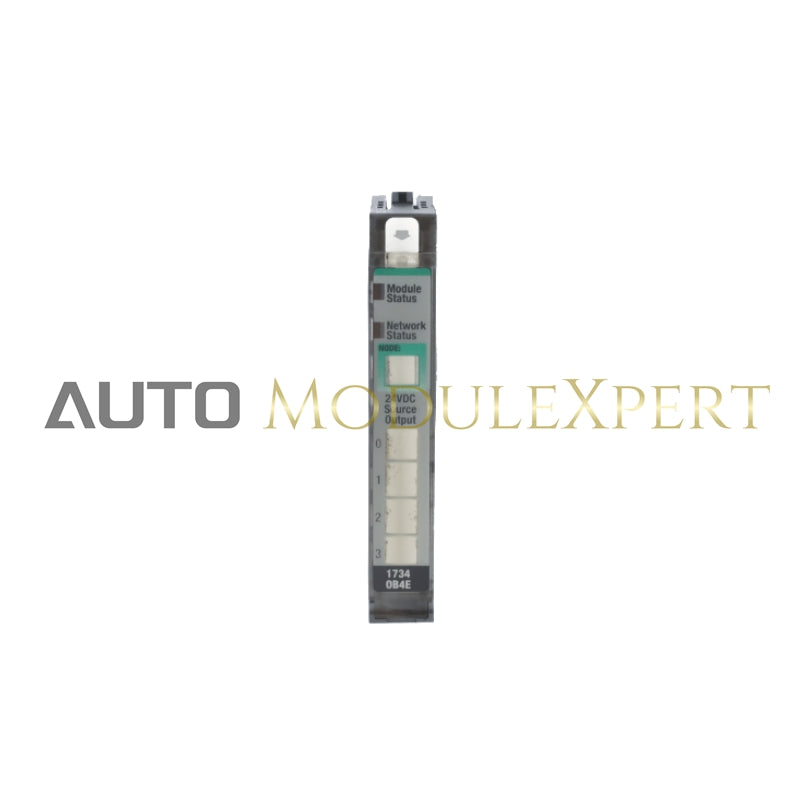

Point I/O 4 Channel Source Output Module, 24V DC, Electronically Protected
This module offers high flexibility and diagnostics, making it suitable for various industrial automation applications. Key features include:
- Supports input, output, and relay output modules.
- Compatible with a wide range of voltages.
- Provides point-level output fault states for short-circuit and wire-off diagnostics.
- Field-side diagnostics available on select modules.
- Offers a choice between direct-connect or rack-optimized communications.
- Includes POINT Guard I/O™ modules for safety applications.
- Configurable modules—each point can be individually set as a DC input or output.
- DeviceLogix™ technology available for local control and logic.
Specifications
- Product Series: Point I/O (Bulletin 1734)
- Component Type: Fieldbus I/O – Digital Output Module
- Number of Digital Outputs: 4
- Digital Output Type: 24V DC sourcing (NPN) type
- Digital Output Range: 10V to 28.8V DC
- Rated Current per Digital Output (Max): 1 A
- Rated Current per Module (Max): 3 A
- Power Supply: 24V DC
-
Operating Temperature:
- Maximum: +55 °C
- Minimum: -20 °C
-
Storage Temperature:
- Maximum: +85 °C
- Minimum: -40 °C
- Relative Humidity (Max): 95% RH
