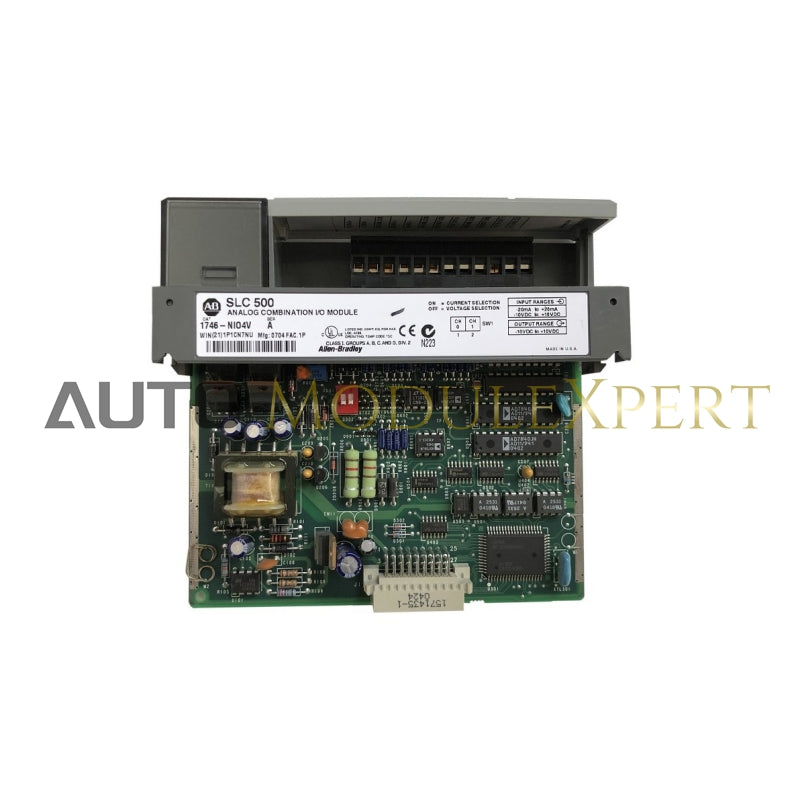

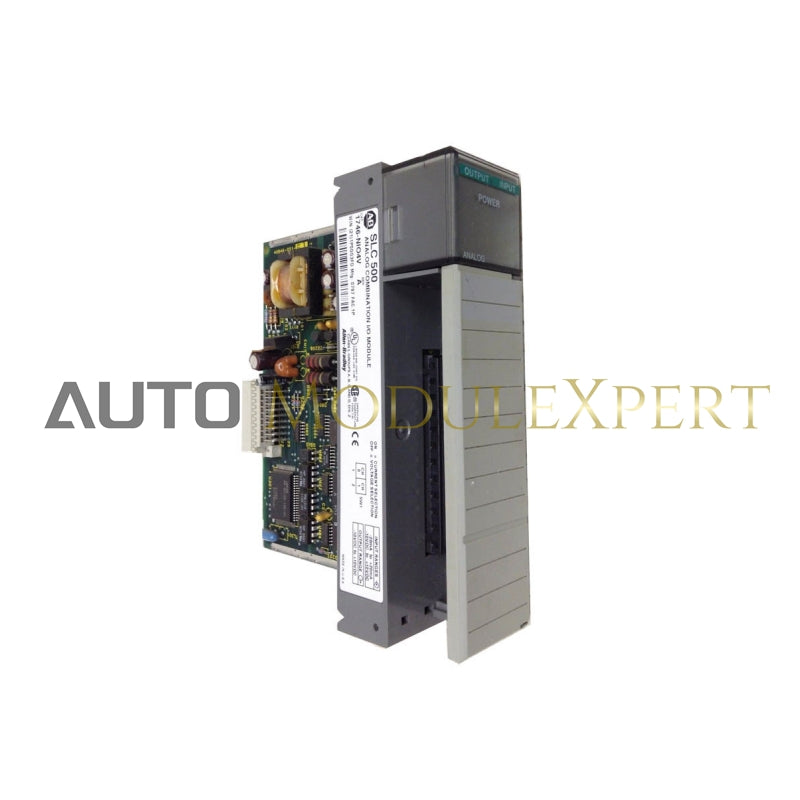

Overview
- Series: 1746 (SLC 500 I/O modules)
- Type: Analog Input Module
- Channels: 4 voltage input channels
- Input Range: Typically, 0-10V, ±10V, or 0-5V (depends on the model and configuration)
- Signal Processing: It converts the analog voltage signals to digital values that can be processed by the SLC 500 PLC.
- Application: Used in systems requiring voltage-based signal input, such as temperature, pressure, or level monitoring.
Specifications
- Input Type: 4 Analog Voltage Inputs
-
Input Range:
- 0-10V DC (typical for many applications)
- ±10V DC (for differential inputs)
- 0-5V DC (available in some models)
-
Input Impedance:
- 500kΩ (nominal) for voltage inputs
-
Resolution:
- 12-bit (gives a range of 0-4095 for input values)
- Channel Isolation: Each input channel is isolated from others to reduce cross-talk and provide reliable measurements.
- Conversion Time: Approximately 25 ms per channel (varies with application)
- Data Format: 16-bit word (one 16-bit word for each input channel)
-
Power Consumption:
- Typically 200mA at 5V DC (from the SLC 500 system)
-
Mounting:
- Standard for the SLC 500 I/O modules (DIN rail-mounted)
- Requires 1 slot in the chassis.
