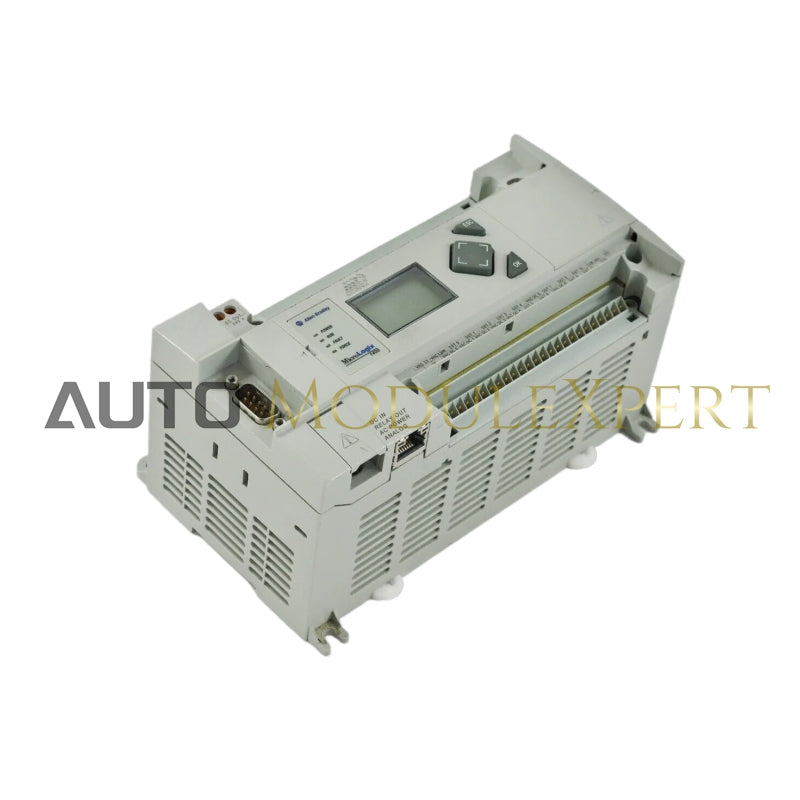

MicroLogix 1400 Programmable Controller Overview
The MicroLogix 1400 programmable controller integrates a variety of essential components for industrial automation, including:
- Power supply
- Input and output circuits
- Processor
- Isolated combination RS-232/RS-485 communication port
- Ethernet port
- Non-isolated RS-232 communication port
It supports up to 32 discrete I/O points (20 digital inputs and 12 discrete outputs) and 6 analog I/O points (4 analog inputs and 2 analog outputs). The models 1766-L32BWAA, 1766-L32AWAA, and 1766-L32BXBA specifically feature these 6 analog I/O points.
Specifications
-
Dimensions:
- Height: 90 mm (3.5 in.)
- Width: 180 mm (7.087 in.)
- Depth: 87 mm (3.43 in.)
-
Shipping Weight: 0.9 kg (2.0 lbs)
-
Number of I/O:
- Inputs: 24 (20 digital, 4 analog)
- Outputs: 14 (12 digital, 2 analog)
-
Power Supply:
- Voltage: 100…240V AC @ 47…63 Hz
- Inrush Current:
- 120V AC: 25 A for 8 ms
- 240V AC: 40 A for 4 ms
- Power Consumption: 120 VA
- 24V DC Sensor Power: 24V DC @ 250 mA (max 400 µF)
-
Input Circuit Type:
- Digital: 24V DC sink/source (standard and high-speed)
- Analog: 0…10V DC
-
Output Circuit Type: Relay
- Relay Life: 2 x 10^5 operations (minimum) at 2.5 A, 250V AC / 30V DC
-
Enclosure Type Rating: None (open-style)
-
Wire Size:
- Solid or Stranded Copper Wire: 0.25…2.5 mm² (22…14 AWG)
- Rated at 90 °C (194 °F) or greater
-
Wiring Categories:
- Signal Ports: Category 2
- Power Ports: Category 2
- Communications Ports: Category 3
-
Terminal Screw Torque: 0.79 N•m (7.0 lb•in)
-
Pilot Duty Rating: R300, C300
-
Expansion Bus:
- Supports up to 7 modules (1762)
- Max Power:
- 5V: 1500 mA (1300 mA for Series C)
- 24V: 1500 mA (1300 mA for Series C)
-
North American Temperature Code: T3C
