Overview

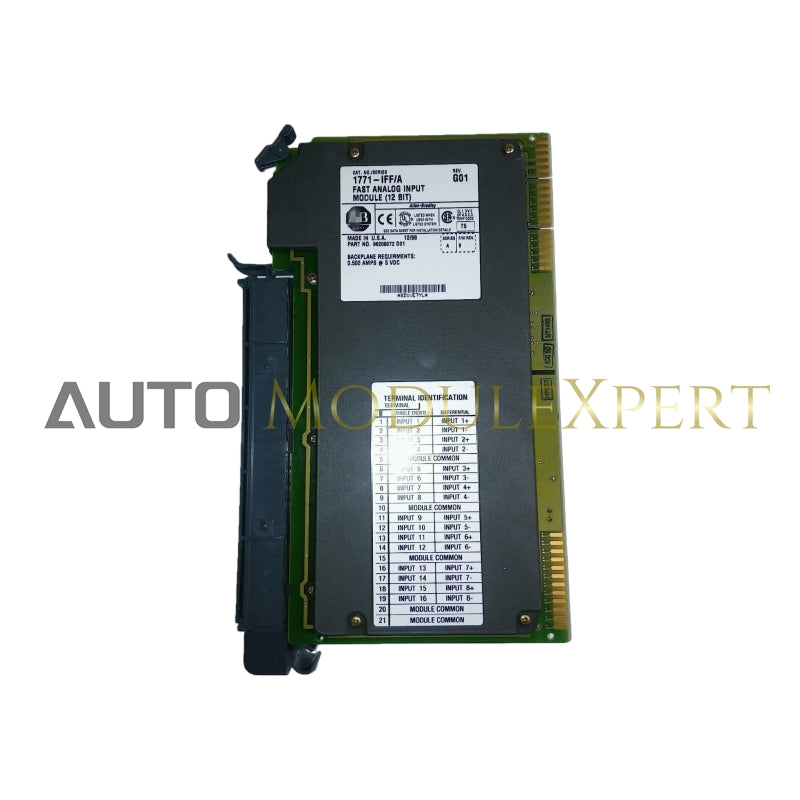

The 1771-IFF Series A module is compatible with any 1771 I/O chassis. It facilitates bidirectional communication between the analog module and the processor. The processor sends block-transfer output data to the module via the output image table and receives block-transfer input data from the module through the input image table. Additionally, the module needs allocated space in the data table to store both read and write block-transfer data. The use of the I/O image table plays a crucial role in determining module placement and addressing configuration.Specifications
Inputs per Module
- 16 single-ended
- 8 differential low level
Module Location
- 1771 I/O rack - 1 slot
Input Voltage Ranges (Nominal)
- +1 to +5V DC
- 0 to +5V DC
- -5 to +5V DC
- -10 to +10V DC
- 0 to +10V DC
Input Current Ranges (Nominal)
- +4 to +20mA
- 0 to +20mA
- -20 to +20mA
Resolution
- 12-bit binary
- 12 bits plus sign on bipolar ranges
Accuracy
- 0.1% of full scale range @ 25°C
Linearity
- ±1 LSB
Repeatability
- ±1 LSB
Isolation Voltage
- Meets or exceeds UL Standard 508 and CSA Standard C22.2 No. 142
Input Overvoltage Protection
- 35V (voltage mode)
- 8V (current mode)
Input Overcurrent Protection (Current Ranges)
- 30mA
Common Mode Voltage
- ±35 Volts
Input Impedance
- 10 Megohms for voltage ranges
- 250 ohms for current ranges
Common Mode Rejection
- 80 dB, DC-120Hz
Current Requirements
- 500mA @ +5V from I/O chassis backplane
Power Dissipation
- 2.5 Watts (maximum)
Thermal Dissipation
- 8.52 BTU/hr (maximum)
Unscaled BCD and Binary Output to Processor
- 0000 to +4095 for polar ranges (0 to 5V, +1 to +5V, 0 to +20mA, and +4 to +20mA)
- -4095 to +4095 for bipolar ranges (+5V, +10V, +20mA)
Engineering Units Sent to Processor
- +9999 with selectable scaling
Fastest Internal Scan Rate
- 8 channels in less than 2ms
- (Depends on number of oversamples, number of channels, and active features)
Environmental Conditions
- Operational Temperature: 0 to 60°C (32 to 140°F)
- Storage Temperature: -40 to 85°C (-40 to 185°F)
- Relative Humidity (Operating and Storage): 5 to 95% (without condensation)
Wiring
-
Conductors:
- 14 gauge (2mm²) stranded (max.)
- 3/64 inch (1.2mm) insulation (max.)
- Category 2
-
Keying:
- Between 10 and 12
- Between 24 and 26
-
Wiring Arm Catalog Number: 1771-WG
-
Field Wiring Arm Screw Torque: 7-9 inch-pounds
Installation Instructions: 1771-5.46
