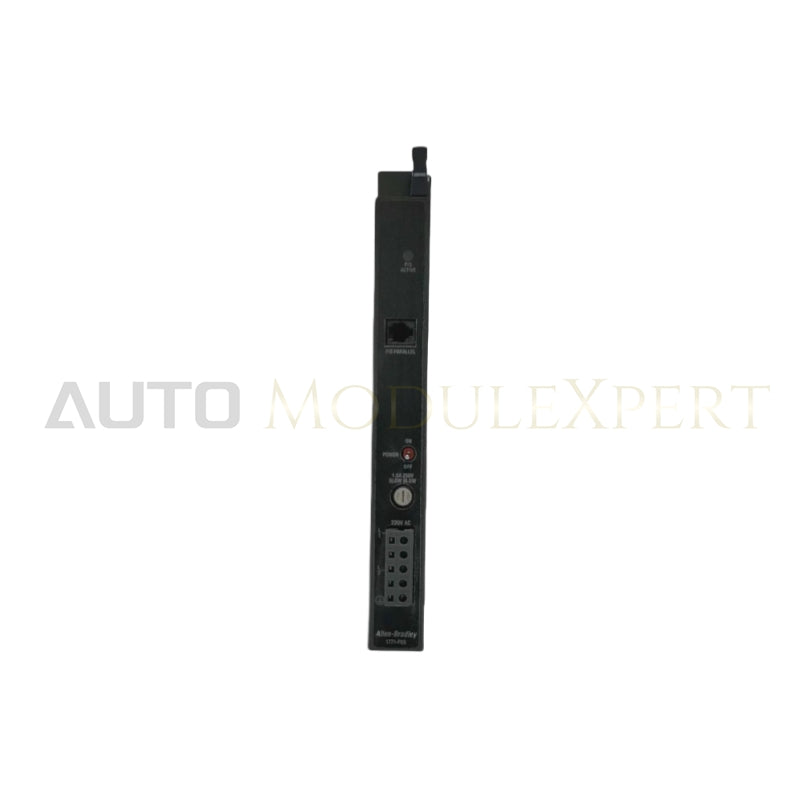

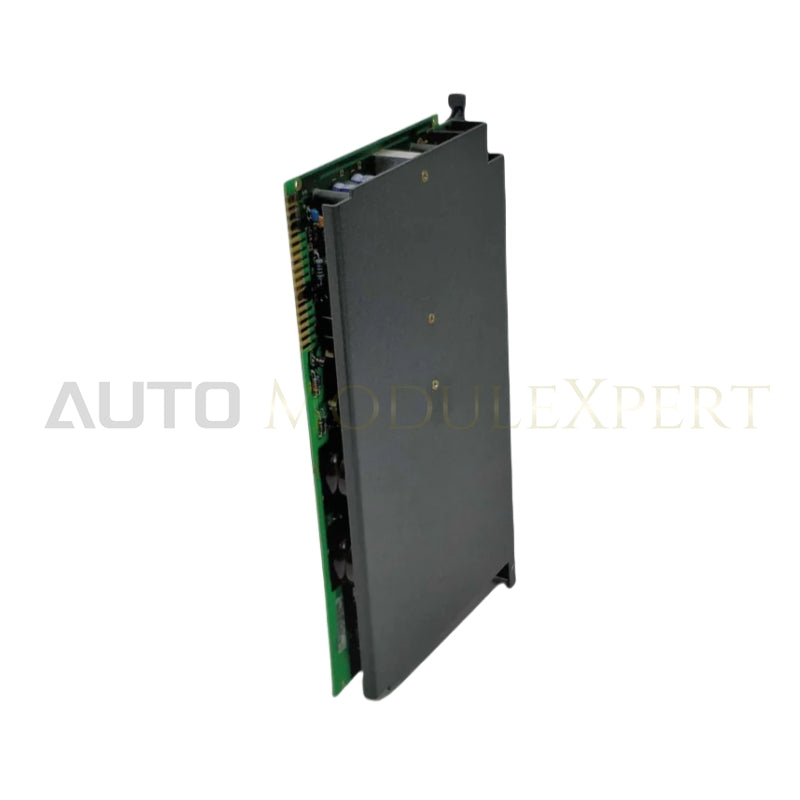

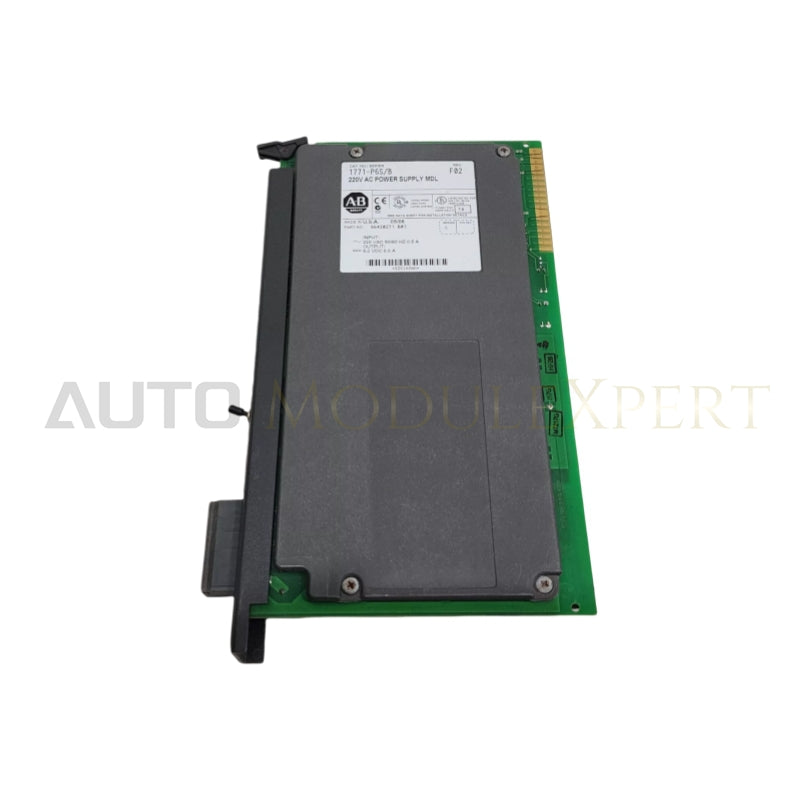

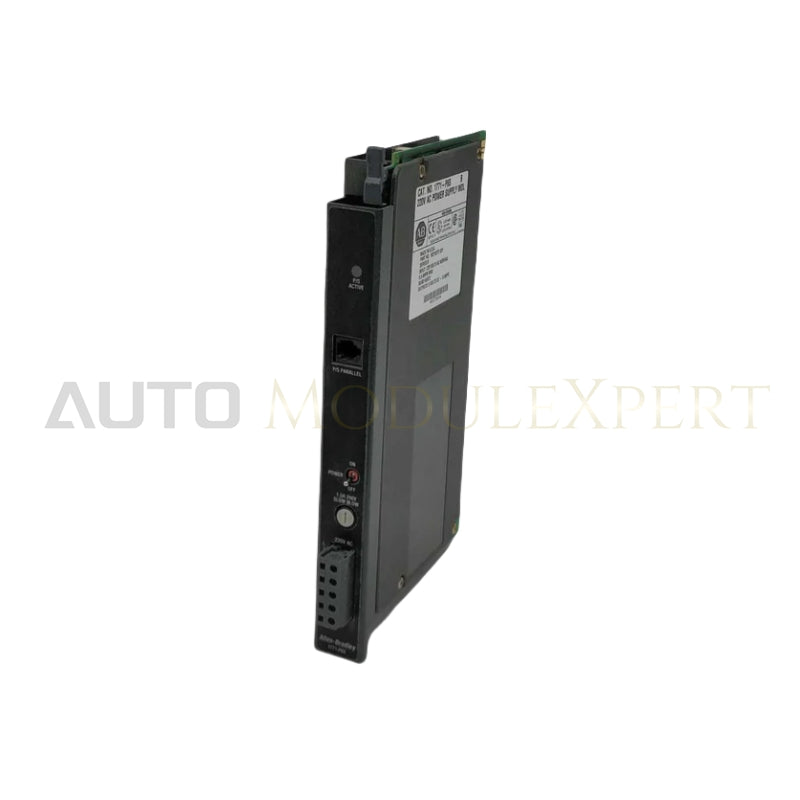

Power Supply, Slot (Single Slot), 8A, 220V AC
- Designed to fit entirely within the I/O chassis without occupying additional external space.
- Connects directly to the I/O chassis backplane for seamless integration.
- Equipped with output-power indicators to show if 5V DC is being supplied to the backplane.
- Supports parallel configuration (using 1771-CT cable) to deliver up to 16 A of current per chassis (1771-P4S, -P6S, -P4S1, -P6S1).
- Ensures single failure-proof chassis power up to 20 A per chassis in redundant configurations (1771-P4R, -P6R).
Specifications
- Input Voltage: 1771-P6S: 220V AC, 0.5A
- Input Range: 1771-P6S: 194-264V AC RMS
- Frequency: 47-63Hz
- Fuse: 250V, 1.5A; Bussman MDL 1.5, Littelfuse 31301.5, IEC 127 Type T (Blue)
- Output Voltage (Backplane): 5V DC
- Output Current (Maximum): 8A (see derating curve below)
- Power Dissipation: 16W
- Thermal Dissipation: 47.8 BTU/hr
- Adjacent Slot Power Dissipation: 10W maximum
- Branch Circuit Protection: 15A maximum (user supplied)
- Operational Temperature: 0 to 60°C (32 to 140°F)
- Storage Temperature: -25 to 80°C (-13 to 176°F)
- Relative Humidity: 5 to 95% non-condensing
- Shock (Operating): 30g peak acceleration
- Shock (Non-operating): 50g peak acceleration
- Vibration: Tested 2g @ 10-500Hz
- Isolation Voltage: Tested to withstand 1000V AC for 60s
