Specifications
Backplane Current-
1785-L20C15: 2.7A @ 5Vdc
-

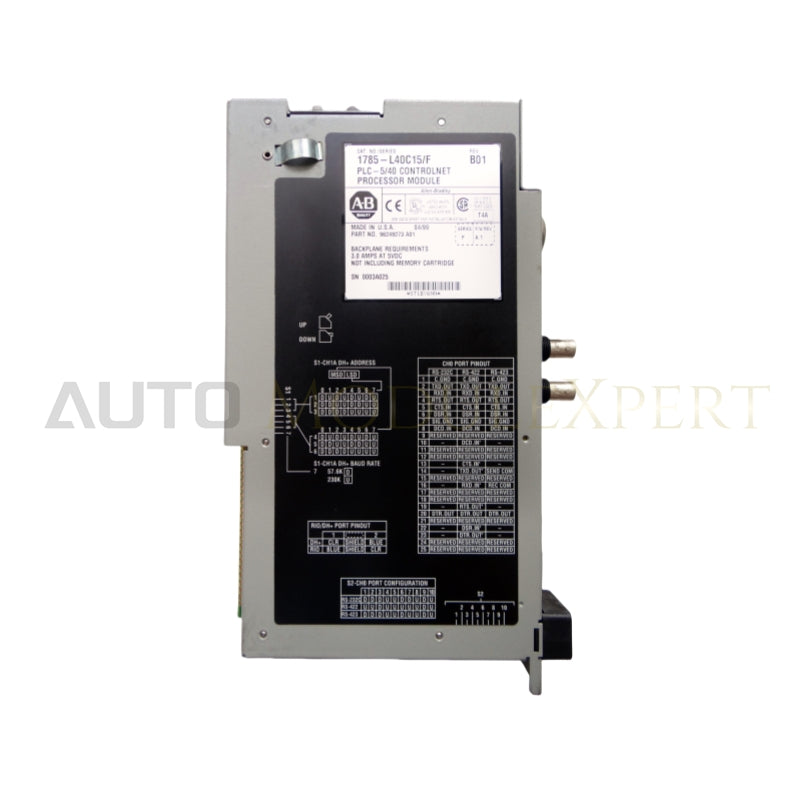

1785-L40C15, -L46C15, -L80C15: 3.3A @ 5Vdc
-
1785-L20C15: 54 BTU/hour
-
1785-L40C15, -L46C15, -L80C15: 59 BTU/hour
-
Standards:
-
IEC 60068-2-1 (Test Ad, Operating Cold)
-
IEC 60068-2-2 (Test Bd, Operating Dry Heat)
-
IEC 60068-2-14 (Test Nb, Operating Thermal Shock)
-
-
Range: 0-60°C (32–140°F)
-
Standards:
-
IEC 60068-2-1 (Test Ab, Unpackaged Non-operating Cold)
-
IEC 60068-2-2 (Test Bc, Unpackaged Non-operating Dry Heat)
-
IEC 60068-2-14 (Test Na, Unpackaged Non-operating Thermal Shock)
-
-
Range: –40 to 85°C (–40 to 185°F)
-
Standard: IEC 60068-2-30 (Test Db, Unpackaged Non-operating Damp Heat)
-
Range: 5–95% non-condensing
-
Standard: IEC 60068-2-6 (Test Fc, Operating)
-
Range: 2g @ 10–500Hz
-
Standard: IEC 60068-2-27:1987, Test Ea (Unpackaged shock, ES#002)
-
Operating: 30g
-
Non-operating: 50g
-
Standard: CISPR 11
-
Classification: Group 1, Class A
-
Standard: IEC 61000-4-2
-
Level: 4kV contact discharges
-
Standard: IEC 61000-4-3
-
Level:
-
10V/m, 3V/m Broadcast Bands
-
With 1kHz sine-wave, 80% AM from 30MHz to 1000MHz
-
-
Standard: IEC 61000-4-4
-
Level: +2kV at 5kHz on communication ports
-
Standard: IEC 61000-4-5
-
Level: +2kV line-earth (CM) on signal ports
-
Standard: IEC 61000-4-6
-
Level: 10Vrms with 1kHz sine-wave, 80% AM from 150kHz to 30MHz
-
Type: None (open style)
-
Maximum Variations at 60°C: ± 5 min per month
-
Typical Variations at 20°C: ± 20 s per month
-
Timing Accuracy: 1 program scan
-
1785-CHBM: ControlNet Hot Backup Cartridge (required for each processor used in a hot backup system)
-
1785-RC: Relay Cartridge
-
Type: Allen-Bradley 1770-XYC
-
1785-ME32
-
1785-ME64
-
1785-M100
-
Supported Bulletin Models: 1771 I/O, 1794 I/O, 1746 I/O, and 1791 I/O
-
Types: Including 8-, 16-, 32-point, and intelligent modules
