Overview

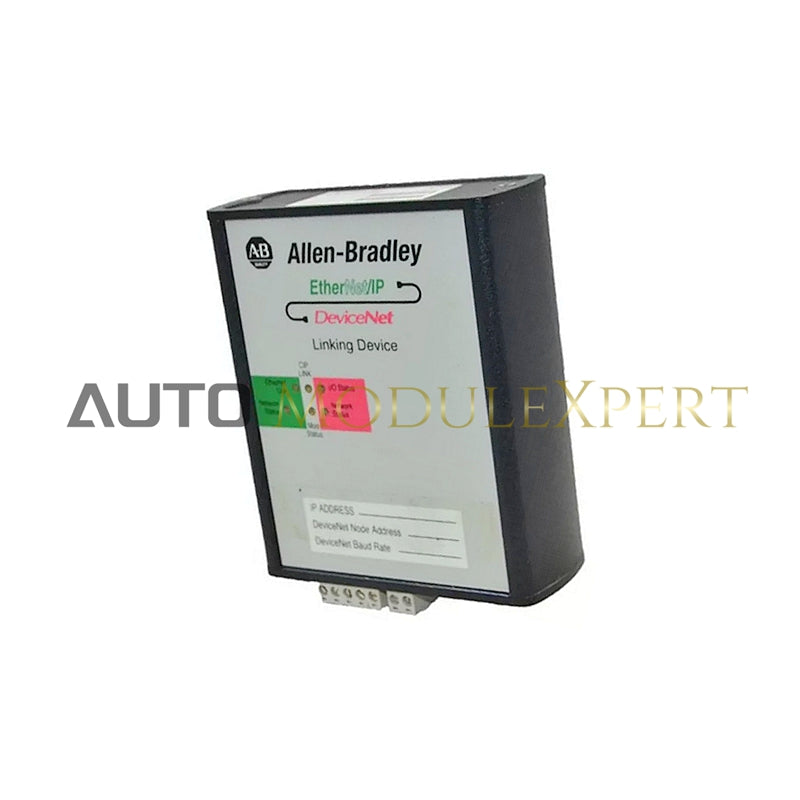

The Allen-Bradley 1788-EN2DN is an Ethernet-to-DeviceNet linking device designed to facilitate communication between Ethernet and DeviceNet networks.
Technical Specifications
- Enclosure Type Rating: None (open style)
-
Supply Power and Current Rating:
-
DeviceNet Network:
- Operating Voltage: 12…30V DC (24V DC nominal)
- Current: 100 mA at 24V DC, Class 2
-
Input Power:
- Operating Voltage: 12…30V DC (24V DC nominal)
- Current: 300 mA at 24V DC, Class 2
-
DeviceNet Network:
- Isolation Voltage: 50V (continuous), basic insulation type
- Torque: 0.5…0.8 N•m (5…7 lb•in)
-
Wire Size:
- DeviceNet Connections: See appropriate system-level installation manual
- Ethernet Network Connections: RJ45 connector according to IEC 60603-7, 2 or 4 pair Category 5e minimum cable according to TIA 568-B. 1 or Category 5 cable according to ISO/IEC 24702
- DC Power Connections: 0.2…3.3 mm² (24…12 AWG) solid or stranded copper wire rated at 75 °C (167 °F), or greater, 1.2 mm (3/64 in.) insulation max
-
Wiring Category:
- 2 - on power ports
- 2 - on communication ports
Environmental Specifications
- North American Temp Code: T4
- IEC Temp Code: T4
- Operating Temperature: 0…60 °C (32…140 °F)
- Surrounding Air Temperature, Max: 60 °C (140 °F)
- Non-operating Temperature: -40…85 °C (-40…185 °F)
- Relative Humidity: 5…95% non-condensing
Standards Compliance
- IEC 60068-2-1 (Test Ad, Operating Cold)
- IEC 60068-2-2 (Test Bd, Operating Dry Heat)
- IEC 60068-2-14 (Test Nb, Operating Thermal Shock)
- IEC 60068-2-1 (Test Ab, Unpackaged Non-operating Cold)
- IEC 60068-2-2 (Test Bb, Unpackaged Non-operating Dry Heat)
- IEC 60068-2-14 (Test Na, Unpackaged Non-operating Thermal Shock)
- IEC 60068-2-30 (Test Db, Unpackaged Damp Heat)
- IEC 60068-2-6 (Test Fc, Operating)
- IEC 60068-2-27 (Test Ea, Unpackaged Shock)
- IEC 61000-4-2 (ESD immunity)
- 6 kV contact discharges
- 8 kV air discharges
- IEC 61000-4-3 (Radiated RF immunity)
- 10V/m with 1 kHz sine-wave 80% AM from 80…2000 MHz
- 10V/m with 200 Hz 50% Pulse 100% AM at 900 MHz
- 10V/m with 200 Hz 50% Pulse 100% AM at 1890 MHz
- 1V/m with 1 kHz sine-wave 80% AM from 2000…2700 MHz
- IEC 61000-4-4 (EFT/B immunity)
- ±2 kV at 5 kHz on power ports
- ±2 kV at 5 kHz on communication ports
- IEC 61000-4-5 (Surge transient immunity)
- ±1 kV line-line (DM) and ±2 kV line-earth (CM) on power ports
- ±2 kV line-earth (CM) on communication ports
- IEC 61000-4-6 (Conducted RF immunity)
- 10V rms with 1 kHz sine-wave 80% AM from 150 kHz…80 MHz
