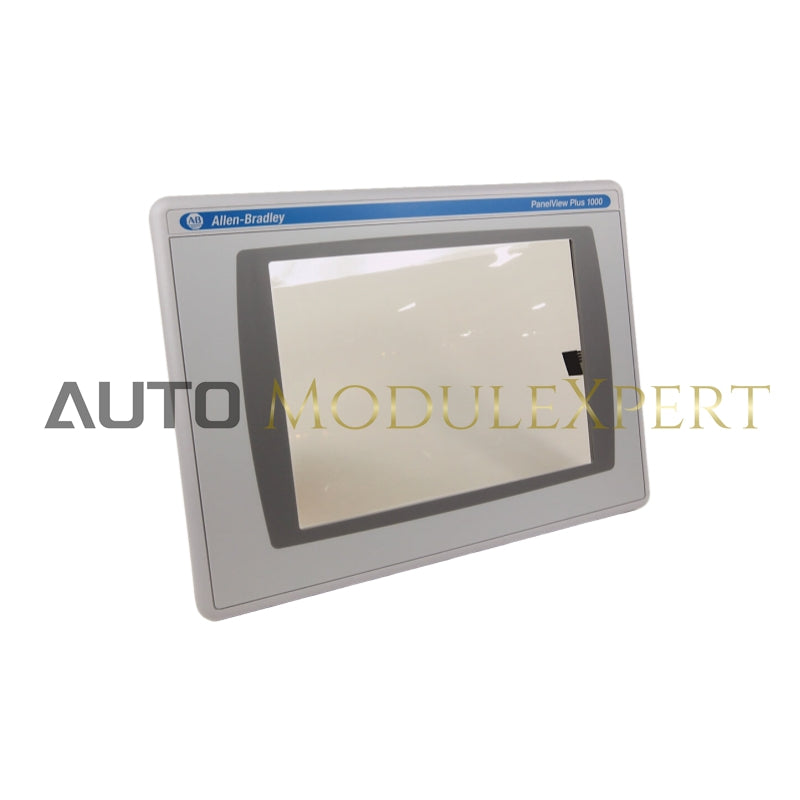

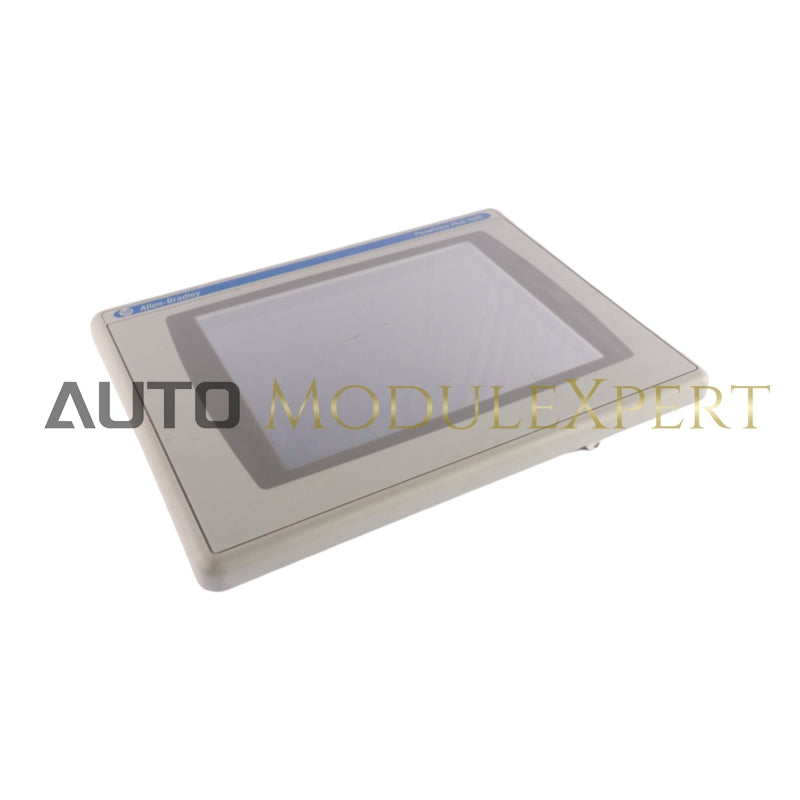

PanelView Plus 6 - 700…1500 Terminals
The PanelView Plus 6 - 700 to 1500 terminals are designed with modular components that offer flexibility in configuration, installation, and upgrades. These terminals are available either as factory-assembled units with a display and logic module or as separate components for field installation. Optional communication modules can also be ordered for additional network connectivity.
Specifications
Operator Input
- Keypad: Available with numeric, navigation, and function keys
- Touch: 8-wire analog resistive
- Key/Touch: Combination of keypad and touch interface
Display
- Type: Color active-matrix TFT
- Size: 10.4 in.
- Resolution: 640 x 480, 18-bit color graphics
- Display Area: 211 x 158 mm (8.3 x 6.2 in.)
- Luminance: 300 cd/m² (Nits)
-
Backlight:
- CCFL, 50,000 hours min at 25°C (77°F), field replaceable
- High-bright display module (1250) – backlight not replaceable
Touch Screen
- Type: 8-wire analog resistive
- Actuation: 1 million presses
- Operating Force: 10…110 g
Keypad
- Material: Stainless-steel membrane
- Actuation: 1 million presses
- Operating Force: 340 g
- Function Keys: 32 programmable function keys (F1–F16, K1–K16)
Battery (Real-Time Clock)
- Function: Timestamps critical data
- Accuracy: ±2 minutes per month
- Battery Life: Minimum 4 years at 25°C (77°F)
- Field-Replaceable Battery: Cat. no. 2711P-RY2032 or equivalent CR2032 coin-cell lithium battery
Memory
- RAM: 512 MB
- Nonvolatile Memory: 512 MB (approx. 79 MB available for user storage)
-
External Storage:
- Secure Digital (SD) card (Cat. No. 1784-SDx, 1784-SDHCx), supported by hot-swappable SD card slot
- USB Flash Drive, supported by two high-speed, hot-swappable USB 2.0 host ports
Operating System
- OS: Windows CE 6.0 (with or without extended features)
-
Software:
- FactoryTalk View Machine Edition (version 6.0 or later)
- FactoryTalk ViewPoint (version 1.2 or later)
Communication Ports
- Ethernet: 10/100 Mbps, Auto-MDI/MDI-X
- RS-232: Serial communication port
- USB: Two USB host ports
- Optional Communication Modules: Ethernet, DH+/DH-485, or ControlNet (scheduled or unscheduled)
Power Requirements
-
DC Input Voltage: 18–32V DC (24V DC nominal)
- Power Consumption (DC): 70 W max (2.9 A at 24V DC), 39 W typical (1.6 A at 24V DC)
- Recommended External Power Supply: Cat. No. 1606-XLE120E (SELV or PELV power supply)
-
AC Input Voltage: 100–240V AC, 50–60 Hz
- Power Consumption (AC): 160 VA max, 65 VA typical
Weight and Dimensions
-
Keypad Version:
- Weight: 2.8 kg (6.2 lb)
- Dimensions (HxWxD): 248 x 399 x 55 mm (9.77 x 15.72 x 2.18 in.)
-
Touch Version:
- Weight: 2.5 kg (5.6 lb)
- Dimensions (HxWxD): 248 x 329 x 55 mm (9.77 x 12.97 x 2.18 in.)
Cutout Dimensions
- Keypad Version: 224 x 375 mm (8.8 x 14.75 in.)
- Touch Version: 224 x 305 mm (8.8 x 12.0 in.)
