Overview

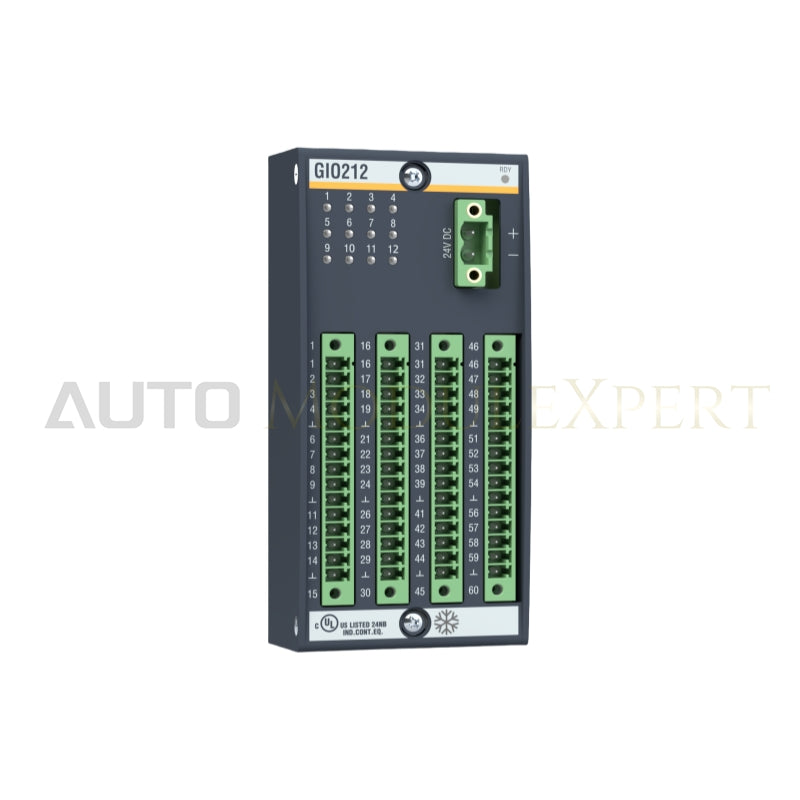

The GIO212 Universal Input/Output Module is a versatile device designed to measure and output a wide range of signals. Each channel can be configured as either an analog or digital input or output. It supports standard signal types such as current (0/4 to 20 mA) and voltage (±10 V), making it compatible with various sensors and actuators. The module features a 16-bit resolution, allowing for precise measurements even for signals that do not fully utilize the entire measuring range, such as 0 to 5 V.
Temperature measurement is increasingly critical in many processes, and the GIO212 accommodates this by supporting Pt100/Pt1000 sensors in 2-, 3-, and 4-wire configurations, as well as all standard thermocouples. Additionally, the module's channels can function as digital inputs, which can be configured as interrupt inputs or 32-bit digital counters. For pulse length or period measurements, values can be buffered in a FIFO with a capacity of 1022 values.
Specifications
- Channels: 12
- Inputs and Outputs: Analog and Digital Inputs/Outputs
-
Modes per Channel:
- Analog Voltage Input: ±10 V to ±10 mV
- Analog Current Input: 0(4) to 20 mA
- Temperature Sensor: Pt elements (2-, 3-, 4-wire); Thermocouples (Type J, K, T, N, E, R, S, B)
- Analog Voltage Output: ±10 V
- Analog Current Output: 0(4) to 20 mA
- Digital Input: 24 V
- Digital 32-bit Counter: A and A/B operation
- Digital Output: 100 mA; Low-Side, High-Side, Push-Pull
- Digital Output (PWM/Frequency Modulation): 16-bit
-
Resolution:
- Input: 16-bit with filter
- Output: 14-bit
- Filter Adjustable Range: 4 kHz to 0.5 Hz per channel
- Digital Status Display: For analog channels
- Digital Inputs Compliance: IEC 61131 Type 1, 2, 3
- Digital Outputs: Up to 10 kHz
-
Protection:
- Overload, Short Circuit, and External Voltage-Proof
- Measuring Range Monitoring: Freely adjustable (±105 %)
- Error Messages: Overload, Overtemperature, and Undervoltage of the Supply
- Galvanic Isolation: 500 V from the system
