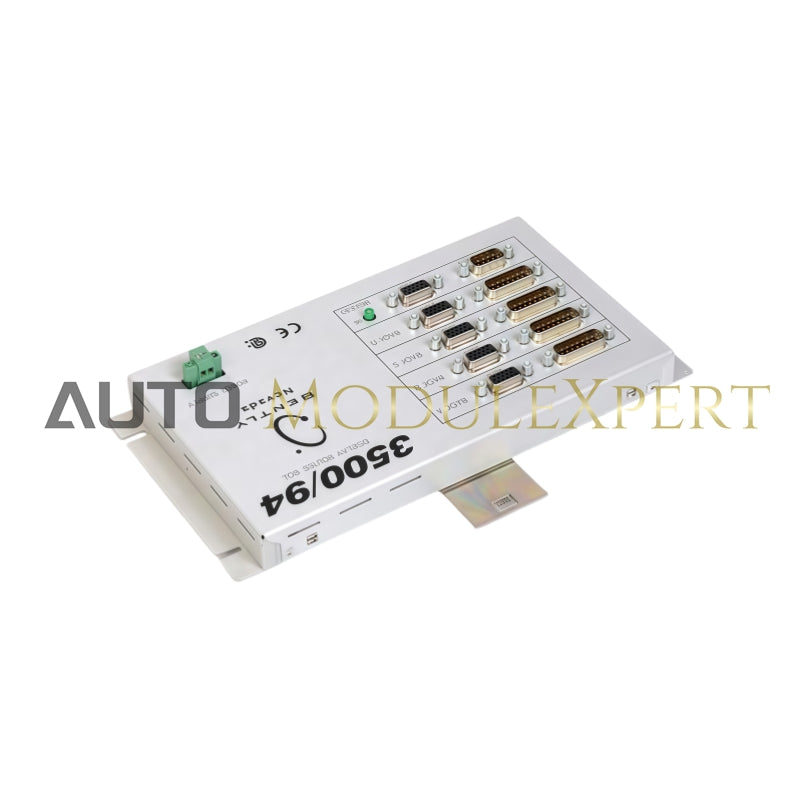

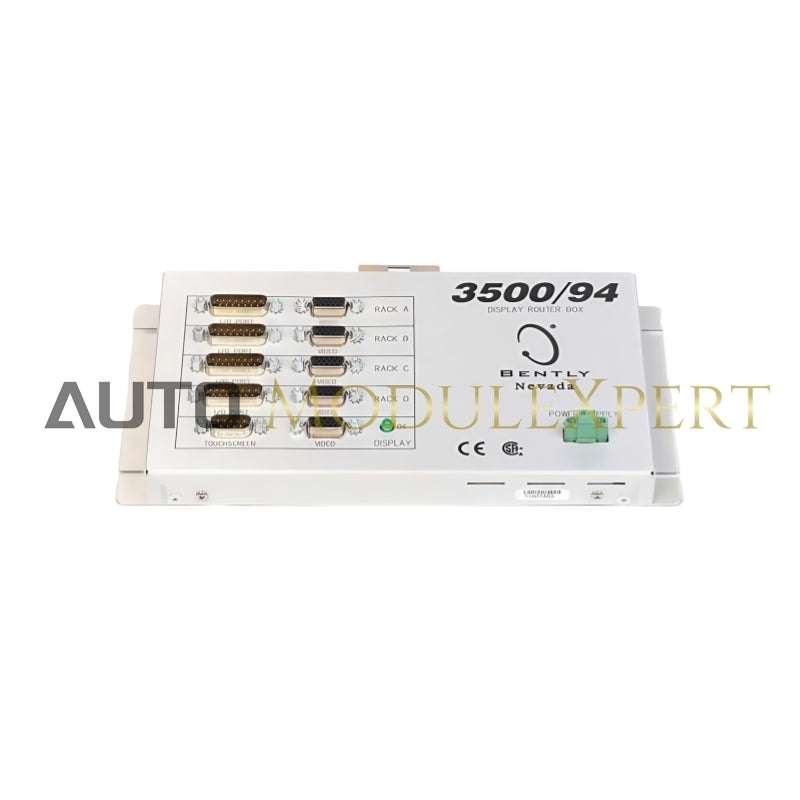

Overview
The 3500/94M VGA Module is designed to display all the relevant information from the 3500 Machinery Protection System, including:
- System Event List
- Alarm Event List
- Module and Channel Data
- Alarm and OK Status
- Nine Custom Display Options
Custom Screens
The 3500/94M VGA Module offers nine custom screens that can be configured using the 3500 Rack Configuration Software. By default:
- One screen shows all 1X-filtered vibration measurements using a bar graph.
- Another screen displays proximity transducer gap values.
Users can organize custom screens into machine train groups and also arrange system data across different pages on each custom screen.
System Components
The 3500/94M VGA Module includes the following components:
- 3500/94M VGA Module
- I/O Module
- 10" or 15" VGA Touch Screen Display
You can connect the VGA display monitor using standard cables (up to 6 meters or 20 feet) from the 3500 rack. Alternatively, a Keyboard Video Monitor (KVM) Extender can be used to extend the distance to 10 km (6.2 miles).
Specifications
Inputs:
- Power Consumption: 4.6 watts maximum
- High-Speed Network: For monitoring status, data, and values
- RS232 Port: For I/O and touch controller data
Outputs:
- OK LED: Indicates proper operation of the module
- TX/RX LED: Indicates communication between other system modules
- VGA Port: Sends analog red, green, blue, and sync signals to the display
- Front Port: Provides 24 Vdc power out, VGA signal out, and receives touch commands in
Environmental Limits
- Operating Temperature: -20°C to 65°C (-22°F to 149°F)
- Storage Temperature: -40°C to 85°C (-40°F to 185°F)
- Humidity: 95%, non-condensing
