Overview
The 1900/65A General Purpose Equipment Monitor is designed for continuous monitoring and protection of equipment across various applications and industries. Its affordability makes it an excellent choice for general-purpose machines and processes that benefit from ongoing oversight.Inputs:
The monitor features four transducer inputs and four temperature inputs. Each transducer input can be configured to accommodate 2- or 3-wire accelerometers, velocity sensors, or proximity sensors. The temperature inputs support Type E, J, K, and T thermocouples, as well as 2- or 3-wire RTDs.Outputs:
The 1900/65A includes six relay outputs, four 4-20 mA recorder outputs, and a dedicated buffered output. Users can utilize the 1900 Configuration software to set relay contacts to open or close based on the OK, Alert, and Danger statuses of any channel or combination of channels. Additionally, the recorder outputs can be configured to provide data from any variable across any channel. The dedicated buffer output offers a signal for each transducer input.Specifications
Power Requirements
- Input Voltage Range: 18 to 36 Vdc
-
Operating Current:
- Typical: 0.35 A
- Maximum: 1.0 A
-
Operating Power:
- Typical: 8.5 W
- Maximum: 14 W
Physical
-
Monitor Module Dimensions:
- L x W x H: 196.9 mm x 149.4 mm x 74.4 mm (7.75 in x 5.88 in x 2.93 in)
- Monitor Module Weight: 0.77 kg (1.70 lb)
-

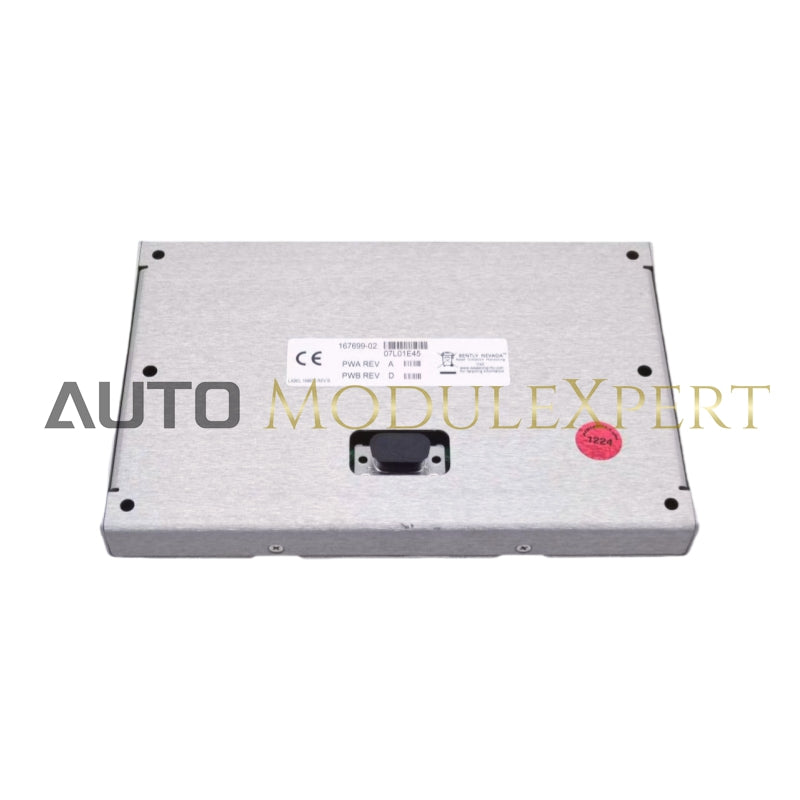

Display Module Dimensions:
- L x W x H: 196.9 mm x 149.4 mm x 32.8 mm (7.75 in x 5.88 in x 1.29 in)
- Display Module Weight: 0.40 kg (0.89 lb)
Mounting Options
- DIN Rail Option: 35 mm DIN rail
- Bulkhead Option: Bulkhead mounting plate
-
Weatherproof Enclosure Option:
- NEMA 4X/IP66 Fiberglass Housing with window
- Dimensions: 300.2 mm x 249.4 mm x 209.8 mm (11.82 in x 9.82 in x 8.26 in)
Temperature
- Operating Temperature: -20 to +70 ºC (-4 to +158 ºF)
- Storage Temperature: -30 to +90 ºC (-22 to +194 ºF)
Humidity
- Operating Humidity: 95% non-condensing, maximum
- Storage Humidity: 95% non-condensing, maximum
