Overview
- The 3300 XL probe and extension cable feature enhanced designs compared to earlier models.
- TipLoc Molding Method: A patented design that ensures a stronger bond between the probe tip and the probe body.
- CableLoc Design: Patented technology providing a pull strength of 330 N (75 lbf) for a more secure attachment between the probe cable and the probe tip.
- Optional FluidLoc Cable: This option prevents oil and other liquids from leaking through the cable’s interior.
Specifications
Probe Cable Specifications
-
Standard Cable:
- 75Ω triaxial cable with fluoroethylene propylene (FEP) insulation
- Available total probe lengths: 0.5, 1, 1.5, 2, 3, 5, or 9 meters
-
Extended Temperature Range Cable:
- 75Ω triaxial cable with perfluoroalkoxy (PFA) insulation
- Available total probe lengths: 0.5, 1, 1.5, 2, 5, or 9 meters
-
Armor (Optional for Both):
- Flexible AISI 302 or 304 stainless steel (SST) with FEP outer jacket
-
Tensile Strength (Maximum Rated):
- 330 N (75 lbf): Probe case to probe lead
- 270 N (60 lbf): Probe lead to extension cable connectors
Extension Cable Material
-
Standard Cable:
- 75Ω triaxial cable with fluoroethylene propylene (FEP) insulation
-
Extended Temperature Range Cable:
- 75Ω triaxial cable with perfluoroalkoxy (PFA) insulation
-
Minimum Cable Bend Radius:
- 25.4 mm (1.0 inch)
-
Weight:
- Standard Extension Cable: 34 g/m (0.4 oz/ft)
- Armored Extension Cable: 103 g/m (1.5 oz/ft)
Operating and Storage Temperature
-
Standard Cable:
- -52°C to +177°C (-62°F to +350°F)
-
Extended Temperature Range Cable:
- -52°C to +260°C (-62°F to +500°F)
Ordering Information

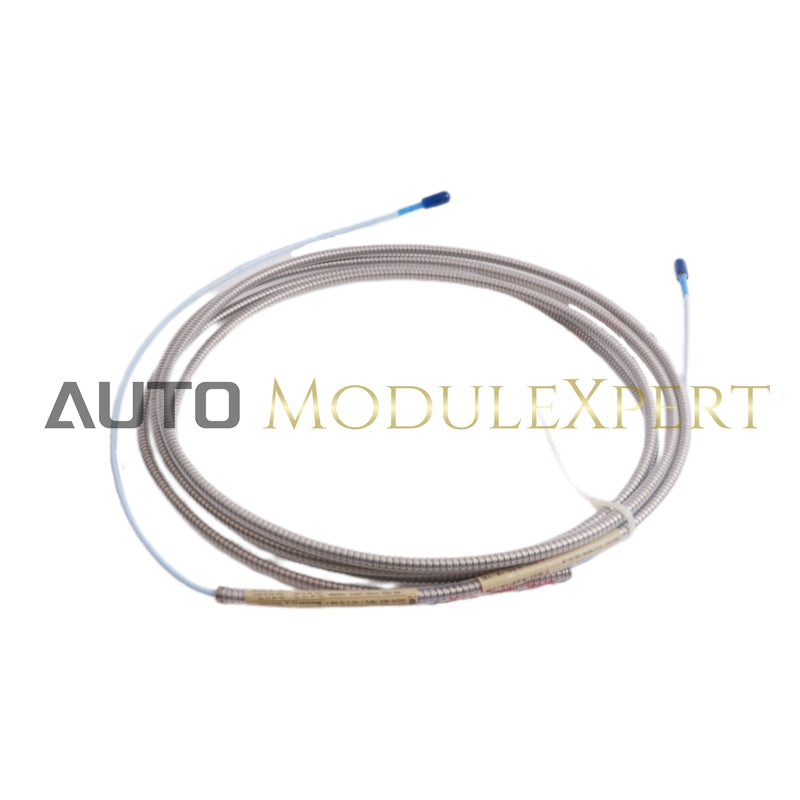

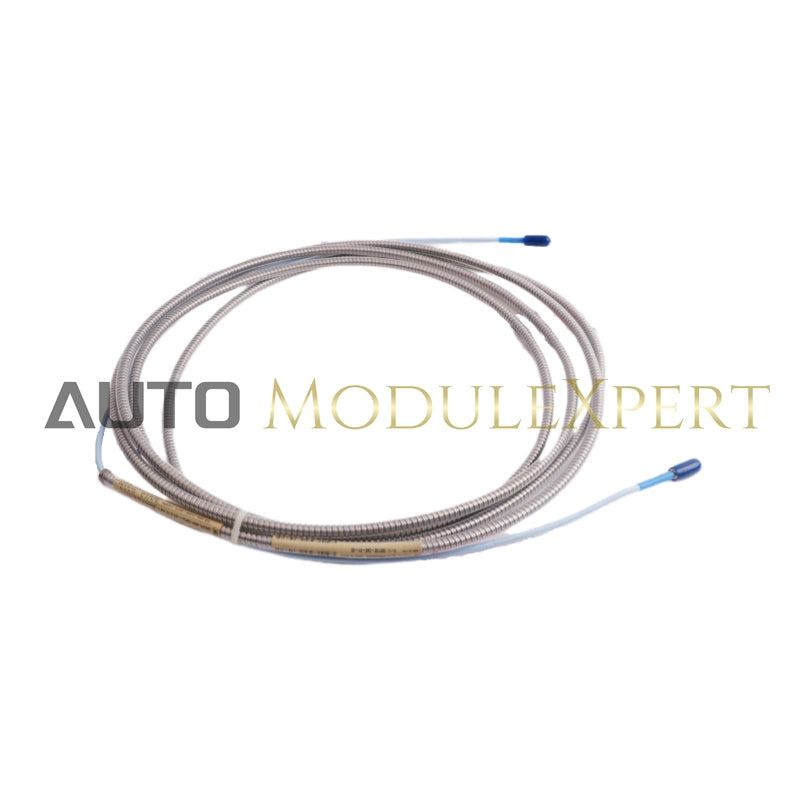

3300 XL Standard Extension Cable
- Model Number: 330130-AAA-BB-CC
A: Cable Length Option
- 030: 3.0 meters (9.8 feet)
- 035: 3.5 meters (13.1 feet)
- 040: 4.0 meters (11.5 feet)
- 045: 4.5 meters (14.8 feet)
- 060: 6.0 meters (19.7 feet)
- 070: 7.0 meters (22.9 feet)
- 075: 7.5 meters (24.6 feet)
- 080: 8.0 meters (26.2 feet)
- 085: 8.5 meters (27.9 feet)
B: Connector Protector and Cable Option
- 00: Standard cable
- 01: Armored cable
- 02: Standard cable with connector protector
- 03: Armored cable with connector protector
- 10: FluidLoc cable
- 11: Armored FluidLoc cable
- 12: FluidLoc cable with connector protector
- 13: Armored FluidLoc cable with connector protector
C: Agency Approval Option
- 00: Not required
- 05: CSA, ATEX, IECEx Approvals
