Overview
The 3300 XL probe and extension cable feature significant design improvements over previous models. Key innovations include:
- TipLoc Molding Method: A patented method that enhances the bond between the probe tip and the probe body, ensuring durability.
- CableLoc Design: The cable design uses a patented CableLoc feature, providing a pull strength of 330 N (75 lbf) to securely attach the probe cable to the probe tip.
- FluidLoc Option: An optional FluidLoc cable prevents liquids such as oil from leaking through the cable’s interior, ensuring that the cable maintains its integrity under challenging conditions.
Specifications
Standard Cable:
- Type: 75Ω triaxial, fluoroethylene propylene (FEP) insulated
- Available Lengths: 0.5, 1, 1.5, 2, 3, 5, or 9 meters
Extended Temperature Range Cable:
- Type: 75Ω triaxial, perfluoroalkoxy (PFA) insulated
- Available Lengths: 0.5, 1, 1.5, 2, 5, or 9 meters
Extension Cable Material:
- Standard Cable: 75Ω triaxial, FEP insulated
- Extended Temperature Range Cable: 75Ω triaxial, PFA insulated
Minimum Cable Bend Radius:
- 25.4 mm (1.0 in)
Length Options:
- System Length: 5 or 9 meters (including extension cable) or 1 meter (probe only)
Weight:
-
Total System Weight (Typical): 0.7 kg (1.5 lb)
- Probe: 323 g/m (11.4 oz)
- Extension Cable: 34 g/m (0.4 oz/ft)
- Armored Extension Cable: 103 g/m (1.5 oz/ft)
- Proximitor Sensor: 246 g (8.67 oz)
Ordering Information

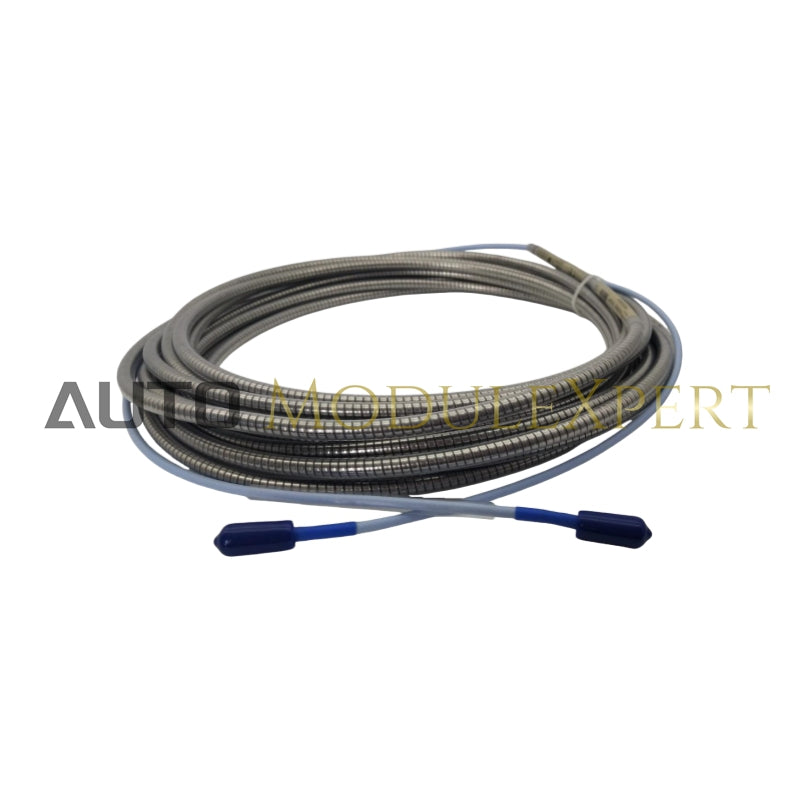

3300 XL Standard Extension Cable
Part Number: 330130-AAA-BB-CC
-
A: Cable Length Option
- 030: 3.0 meters (9.8 feet)
- 035: 3.5 meters (13.1 feet)
- 040: 4.0 meters (11.5 feet)
- 045: 4.5 meters (14.8 feet)
- 060: 6.0 meters (19.7 feet)
- 070: 7.0 meters (22.9 feet)
- 075: 7.5 meters (24.6 feet)
- 080: 8.0 meters (26.2 feet)
- 085: 8.5 meters (27.9 feet)
-
B: Connector Protector and Cable Option
- 00: Standard cable
- 01: Armored cable
- 02: Standard cable with connector protector
- 03: Armored cable with connector protector
- 10: FluidLoc cable
- 11: Armored FluidLoc cable
- 12: FluidLoc cable with connector protector
- 13: Armored FluidLoc cable with connector protector
-
C: Agency Approval Option
- 00: Not required
- 05: CSA, ATEX, IECEx Approvals
