Overview

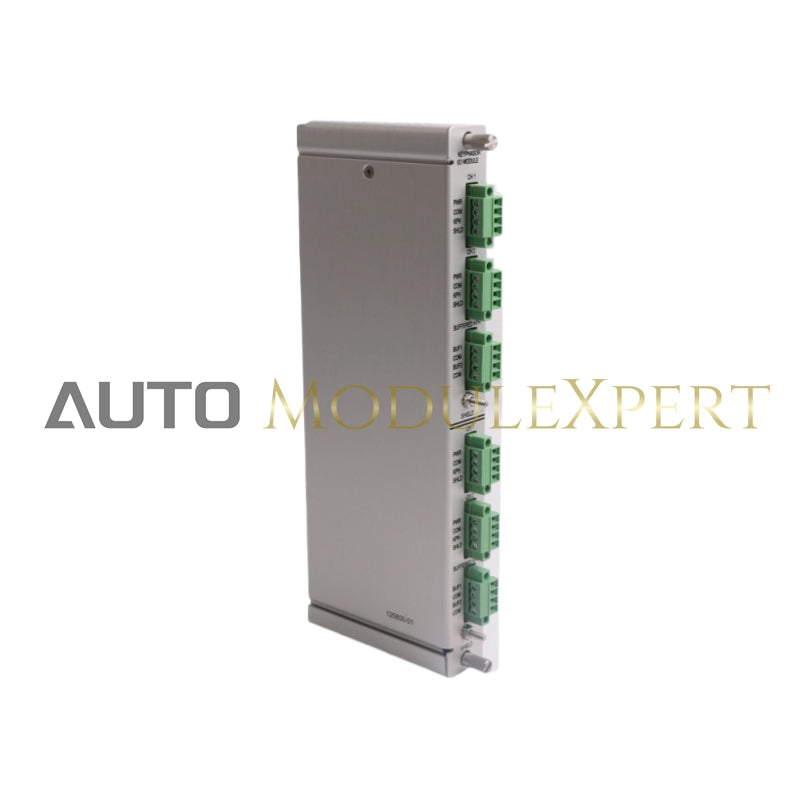

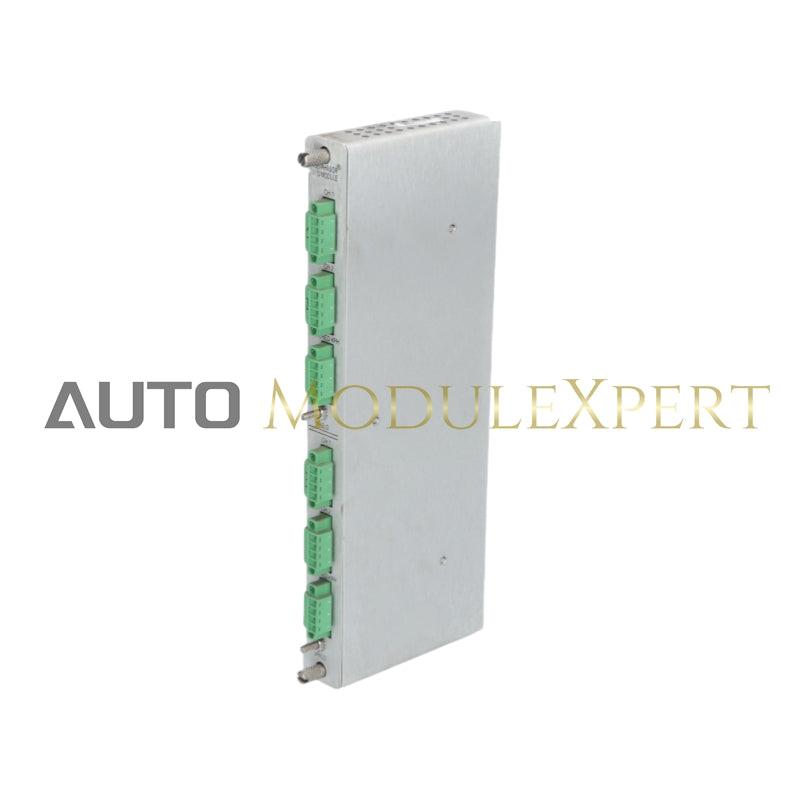

The 3500/25 Enhanced Keyphasor Module is a half-height, two-channel device designed to deliver Keyphasor signals to monitor modules within a 3500 rack. It processes input from proximity probes or magnetic pickups, converting these signals into digital Keyphasor outputs that indicate when the Keyphasor mark on the shaft aligns with the Keyphasor transducer. The 3500 Machinery Protection System supports up to four Keyphasor signals in a standard configuration and can accommodate up to eight signals in a paired setup.Specifications
-
Inputs
- Power Consumption: 3.2 Watts typical
- Input Impedance: 21.8 kΩ minimum
-
Outputs
- Output Impedance: 504 Ω maximum buffered output impedance
-
Keyphasor Transducer Power Supply
- Voltage: -24 Vdc
- Current: 40 mA maximum per channel
-
Operating Temperature
- Without Internal Barrier I/O Module: -30°C to +65°C (-22°F to +150°F)
- With Internal Barrier I/O Module: 0°C to +65°C (32°F to +150°F)
-
Storage Temperature: -40°C to +85°C (-40°F to +185°F)
-
Humidity: 95%, non-condensing
-
Dimensions:
- Height: 241.3 mm (9.50 in)
- Width: 24.4 mm (0.96 in)
- Depth: 103.1 mm (4.06 in)
-
Weight: 0.46 kg (1.01 lbs)
-
Rack Space Requirement: 1 full-height rear slot
