Overview

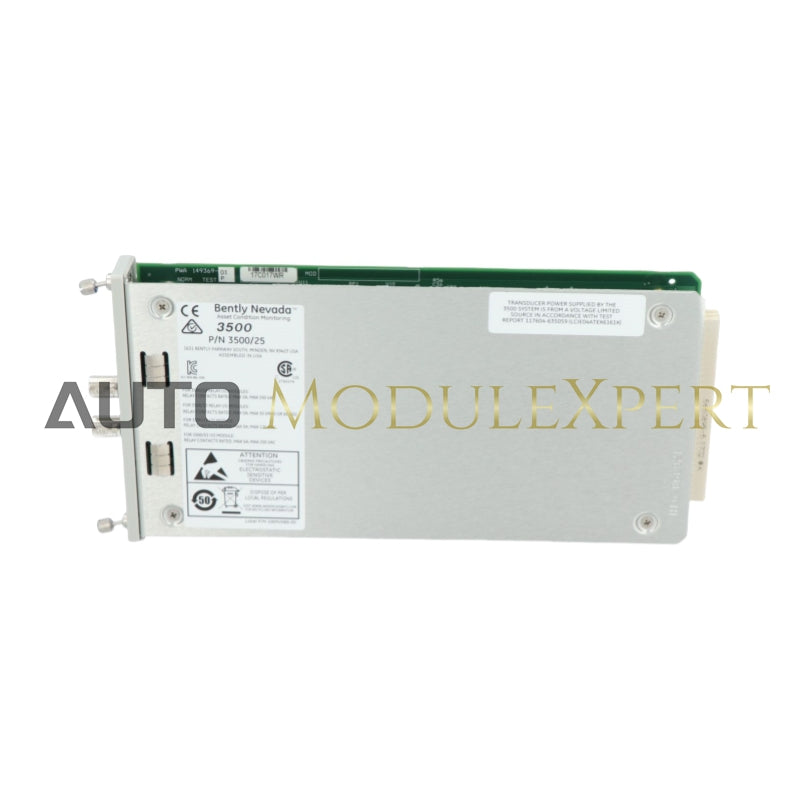

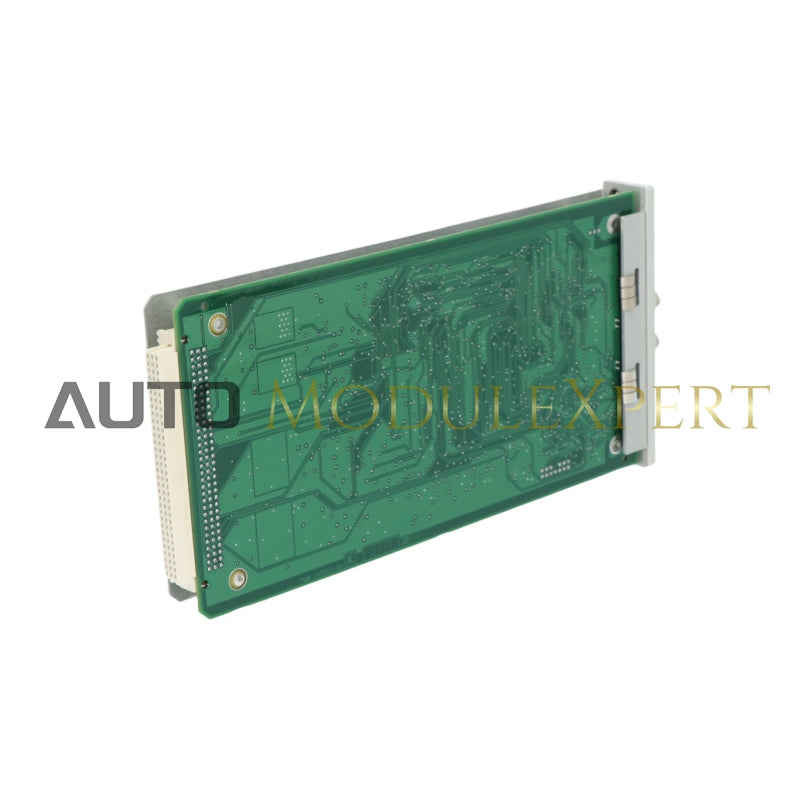

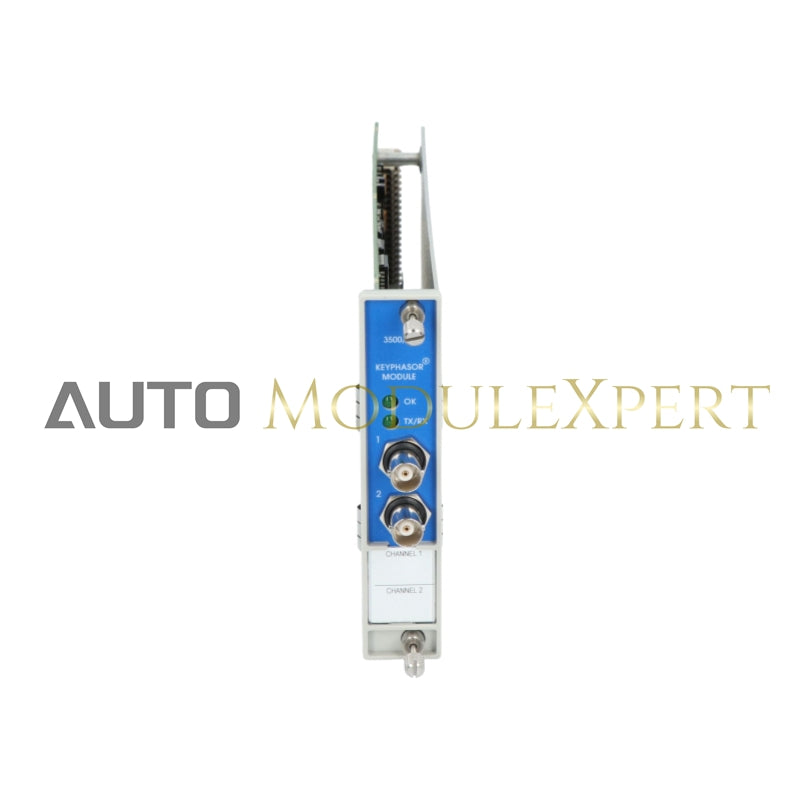

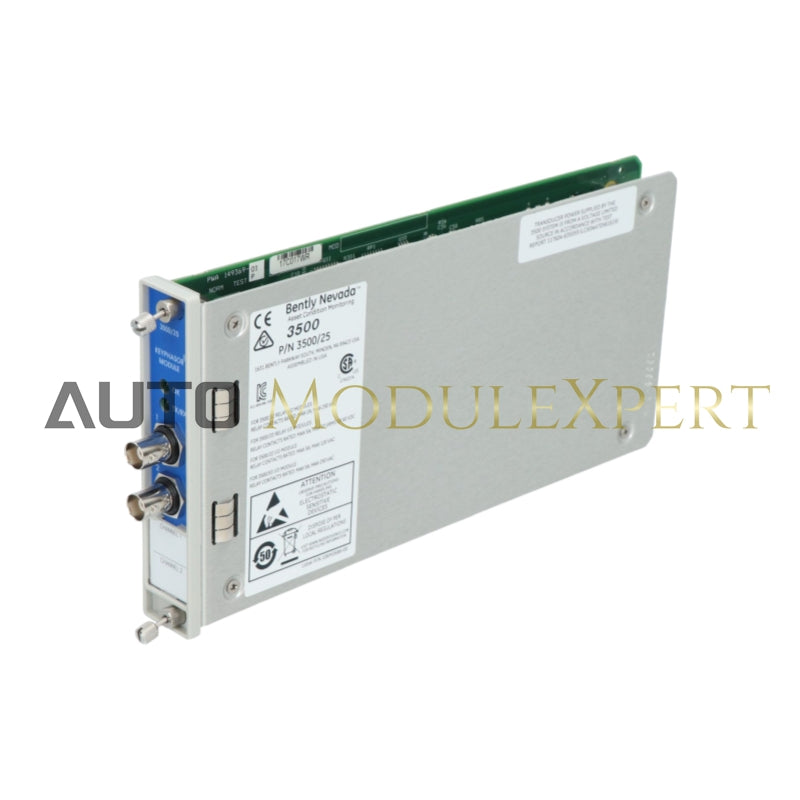

The 3500/25 Enhanced Keyphasor Module is a compact, two-channel module designed to deliver Keyphasor signals to the monitor modules within a 3500 rack. It processes input from proximity probes or magnetic pickups, converting these signals into digital Keyphasor signals that indicate when the Keyphasor mark on the shaft aligns with the transducer. In a standard configuration, the 3500 Machinery Protection System supports up to four Keyphasor signals, while a paired configuration allows for up to eight signals.Specifications
-
Operating Temperature:
- -30°C to +65°C (-22°F to +150°F) when used with Keyphasor I/O Module (not Internal Barrier version).
- 0°C to +65°C (32°F to +150°F) when used with Keyphasor Internal Barrier I/O Module (Internal Termination).
-
Storage Temperature:
- -40°C to +85°C (-40°F to +185°F)
-
Humidity:
- 95%, non-condensing
-
Dimensions:
- Height: 119.9 mm (4.72 in)
- Width: 24.4 mm (0.96 in)
- Depth: 256.5 mm (10.10 in)
-
Weight:
- 0.34 kg (0.76 lbs)
-
Rack Space Requirement:
- 1 half-height front slot
- Main modules require a special mounting adapter for installation in full-height slots.
- Can be placed in any of the 14 available slots.
- Each rack may have a maximum of two main modules: one in a top half-slot and one in a bottom half-slot.
