Overview

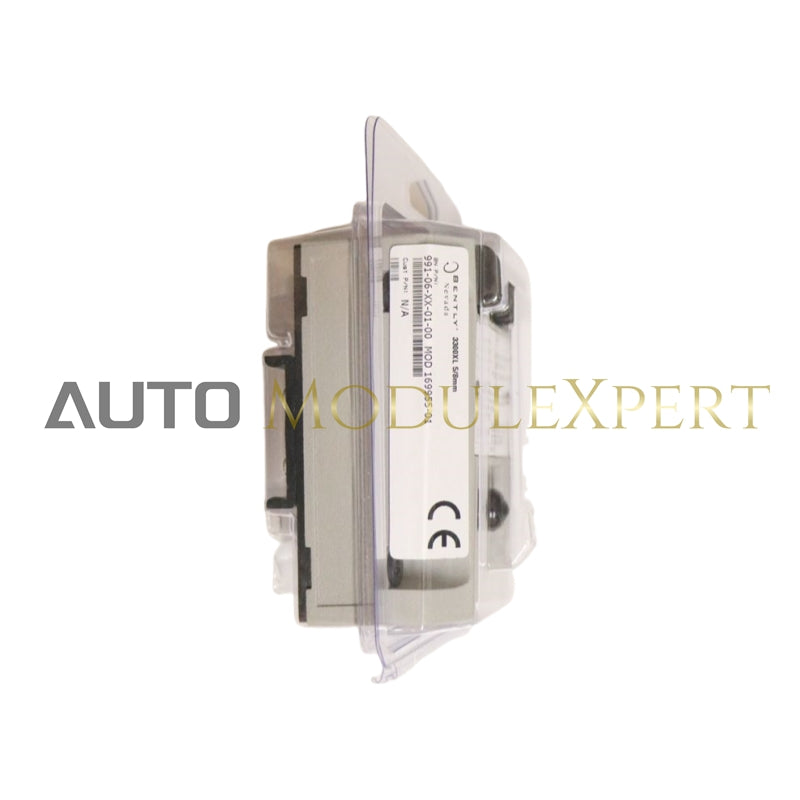

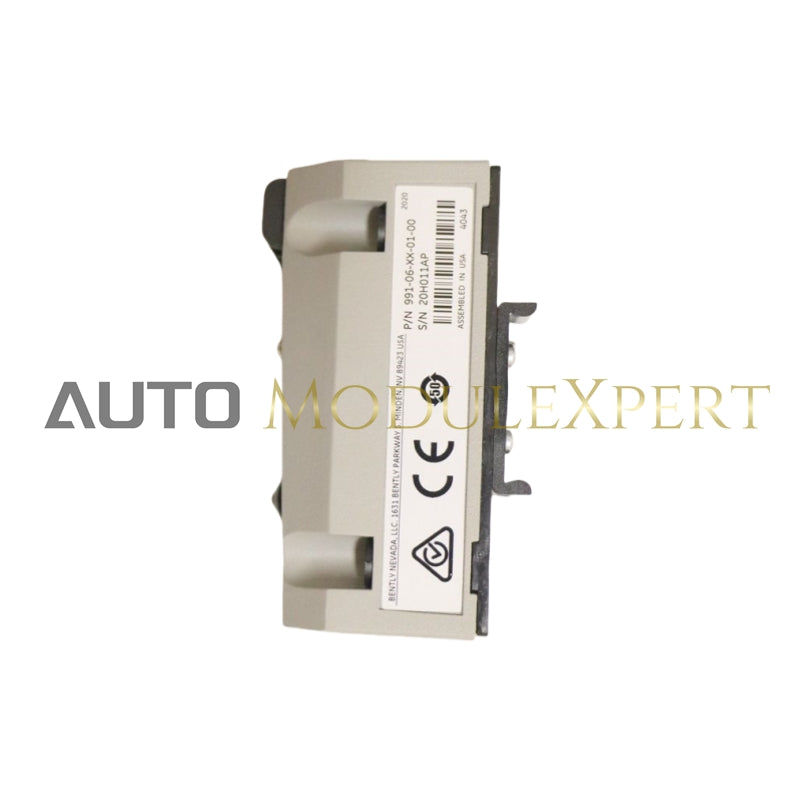

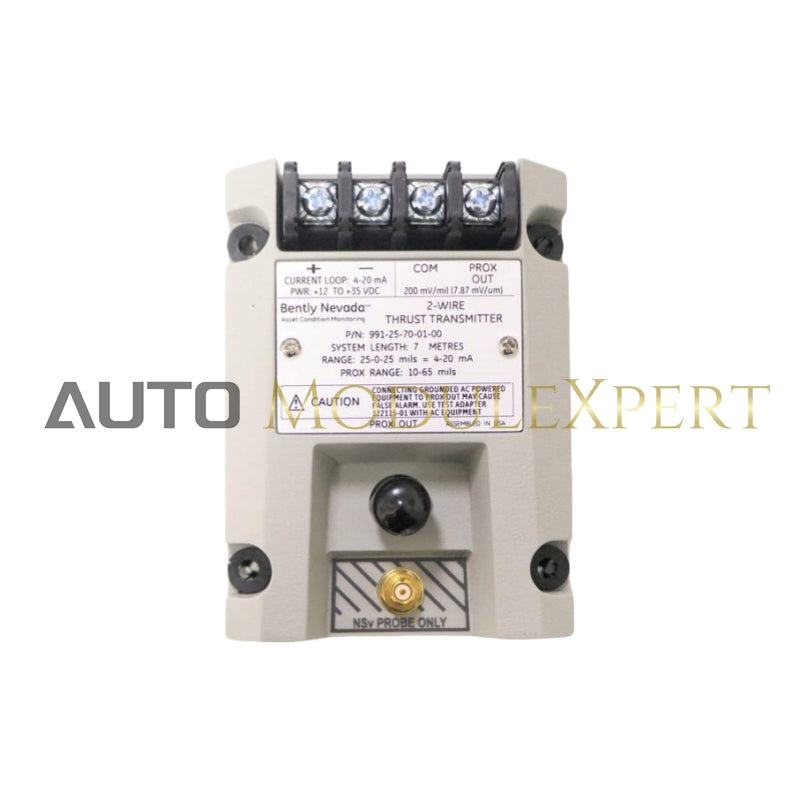

The 991 Thrust Transmitter is primarily designed for original equipment manufacturers (OEMs) of centrifugal air compressors, small pumps, motors, or fans, who require a straightforward 4 to 20 mA proportional axial displacement (thrust) signal to integrate into their machinery control systems. This 2-wire, loop-powered device works in conjunction with the 3300 NSv proximity probe and its corresponding extension cable, available in system lengths of 5 m and 7 m. The transmitter processes the input signal from the probe, converting it into engineering units that reflect the axial position of the shaft. It then outputs a 4 to 20 mA industry-standard signal, ready for the control system to handle machinery protection, alarming, and logic operations.Specifications
Environmental Limits-
Transmitter Temperature:
-
Operating Temperature: -35°C to +85°C (-31°F to +185°F)
-
Storage Temperature: -51°C to +100°C (-60°F to +212°F)
-
-
Probe Temperature:
-
Operating Temperature: -52°C to +177°C (-62°F to +351°F)
-
Storage Temperature: -52°C to +177°C (-62°F to +351°F)
-
-
Relative Humidity: 100% condensing, nonsubmerged, with protection of coaxial connectors
-
Transducer:
-
Tip Material: Polyphenylene sulfide (PPS)
-
Case Material: AISI 303 or 304 Stainless Steel (SST)
-
-
Probe Cable: 75Ω coaxial, fluoroethylene propylene (FEP) insulated
-
Cable Armor (Optional): Flexible AISI 302 SST with optional FEP outer jacket
-
Tensile Strength: 222 N (50 lbf) maximum, from probe case to probe lead
-
Transmitter Weight: 0.43 kg (0.9 lbm)
-
Total System Weight: 0.82 kg (1.8 lbm) typical
