Description

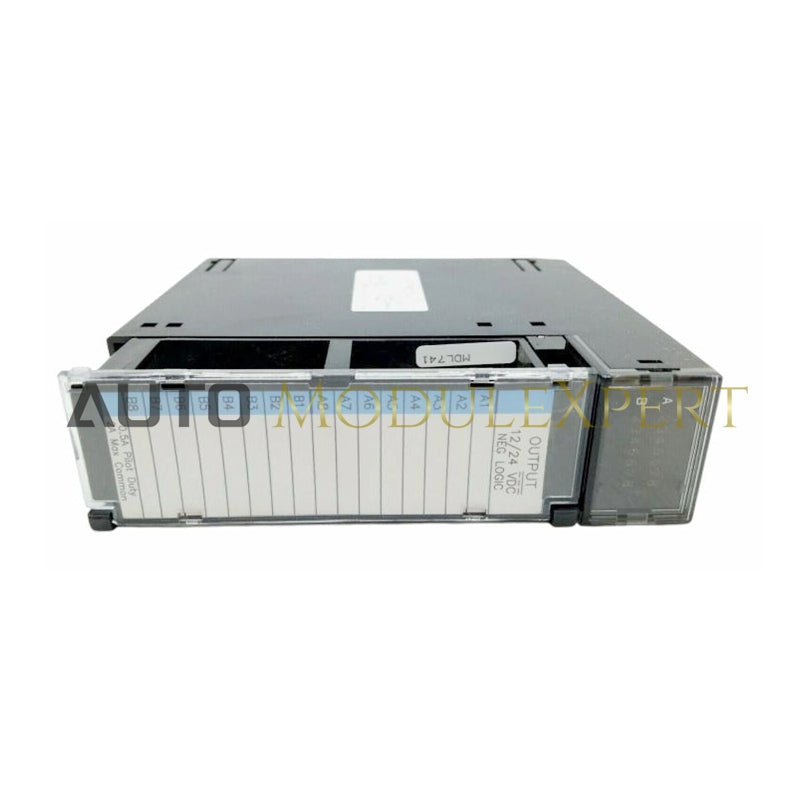

The IC693MDL741C Digital I/O Negative Logic Output Module by GE Fanuc provides 16 discrete outputs with negative logic compatibility for Series 90-30 PLC systems.
Specifications
-
Part Number: IC693MDL741C
-
Series: Series 90-30
-
Product Type: Digital I/O
-
Compatibility: GE Fanuc 90-30 PLCs
-
Output Points: 16
Electrical & Performance
-
Module Voltage Input: 5 Volts DC
-
Rated Voltage: 12/24 Volts DC
-
Output Voltage Range: 12-24 VDC (+20%, -15%)
-
Nominal Output Voltage: 12/24 VDC
-
Peak Output Voltage Drop: 0.5 Volts
-
Output Current: 0.5 Amperes per point; 2 Amperes per common
-
Peak Module Current Draw: 110 mA (all outputs active)
Response Time
-
On Response Time (Max): 2 ms
-
Off Response Time (Max): 2 ms
Configuration
-
No. of Output Groups: 2
-
Channels per Group: 8
Isolation & Environmental
-
Isolation: 1500 Volts between field side and logic side; 500 Volts between groups
-
Operating Temperature: 0 to 60°C
