Overview

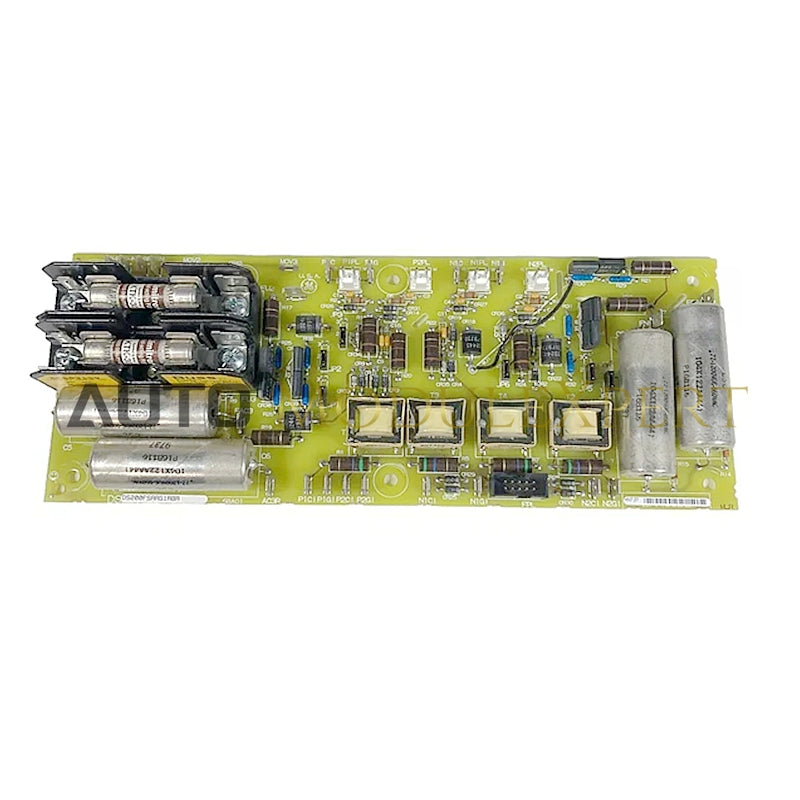

The DS200FSAAG1ABA is a Field Supply Gate Amplifier Board developed by General Electric as part of the Drive Control series. This board plays a crucial role in regulating field supplies and controlling silicon-controlled rectifiers (SCRs) within industrial drive systems. It ensures the proper functioning of machinery by amplifying control signals and providing flexibility with both NRP and NRX operational modes.
Key Features
- Silicon-Controlled Rectifier Control: Manages the operation of SCRs for precise phase control and field regulation.
- Versatile Functionality: Supports both NRP and NRX functions, enabling flexible use across various operational scenarios.
- Fuse Protection: Equipped with two 30-amp Limitron fast-acting fuses for enhanced protection against field and AC MOV issues.
- Diagnostic Capabilities: Integrated diagnostic features to monitor and ensure system health, aiding in quick issue resolution.
Technical Specifications
- Part Number: DS200FSAAG1ABA
- Manufacturer: General Electric
- Series: Drive Control
- Product Type: Field Supply Gate Amplifier Board
- Temperature Range: 0 to 60°C
- Terminal Connector: 10-pin FPL terminal connector
- Fuse Rating: 30 amps (Limitron fuses, KTK symbol)
- Field Regulation: Provides field supply regulation within drive systems
- Amplification: Advanced amplification for control signals to manage field supply voltages
Functional Capabilities
- Phase Control: Regulates four silicon-controlled rectifiers for accurate phase control.
- Field Supply Regulation: Maintains consistent field supply voltage for reliable operation of associated machinery.
- Operational Modes: Supports NRX mode functionality, with no capability for NRP mode.
- Amplification: Boosts control signals to manage voltages and ensure precise modulation.
Safety and Reliability
- Robust Construction: Designed with high-quality materials to ensure durability in demanding environments.
- Safety Features: Compliant with industry standards for protection against malfunctions, ensuring personnel and equipment safety.
- Diagnostic Features: Provides real-time system health diagnostics for proactive issue detection and resolution.
Environmental Conditions
- Operating Temperature Range: 0 to 60°C
Compatibility
- Drive Systems: Compatible with a wide range of drive systems for seamless integration.
- Fields Over 24A: Requires external fuses for fields exceeding 24A.
- Non-Reversing Plugging (NRP) Application: Can provide an NRX function if excessive field issues occur.
