Overview

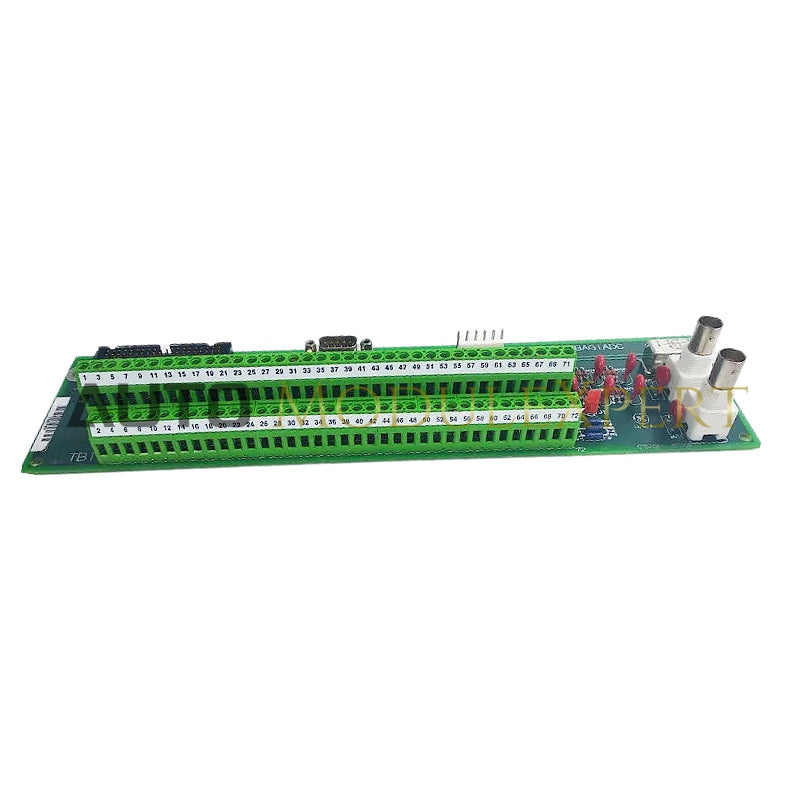

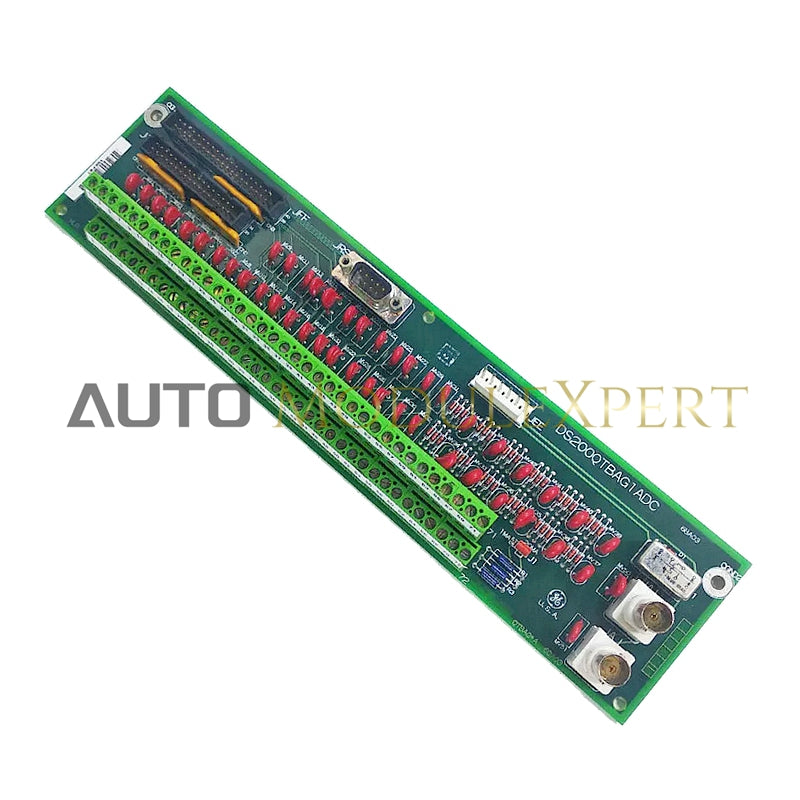

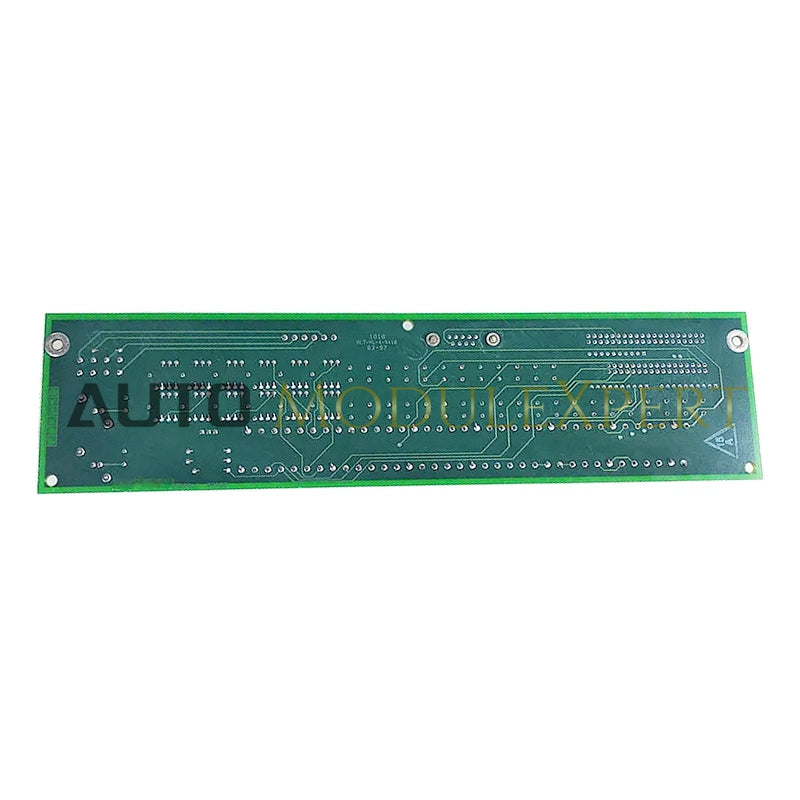

The DS200QTBAG1ADC is a Terminal Board designed by General Electric for the Mark V Series of turbine control systems, specifically for use with GE-compatible turbines.
Specifications
- Model: DS200QTBAG1ADC
- Part Type: Terminal Board
- Series: Mark V
- Functional Role: RST Termination Board
Hardware Features
- Terminal Blocks: 2 blocks for 72 signal wires each
-
Connectors:
- 1 x 40-pin connector (ID: JFF)
- 1 x serial connector
-
Inputs:
- 6 magnetic pulse rate inputs
- 8 servo value outputs
- 6 excitation sources for LVDTs
Configuration
- Jumper: J1 (Default position: 20mA)
- Signal Configuration: Core <R>, <S>, <T> in location 6
Functional Description
- Connection Point: Facilitates connection for various signals in the Mark V Speedtronic system, including fuel flow signals.
- Redundancy: Supports redundancy and helps monitor system health.
Additional Specifications
- Default Jumper Position: 20mA
- Signal Connections: Modifies input signal selection based on jumper settings
