Description

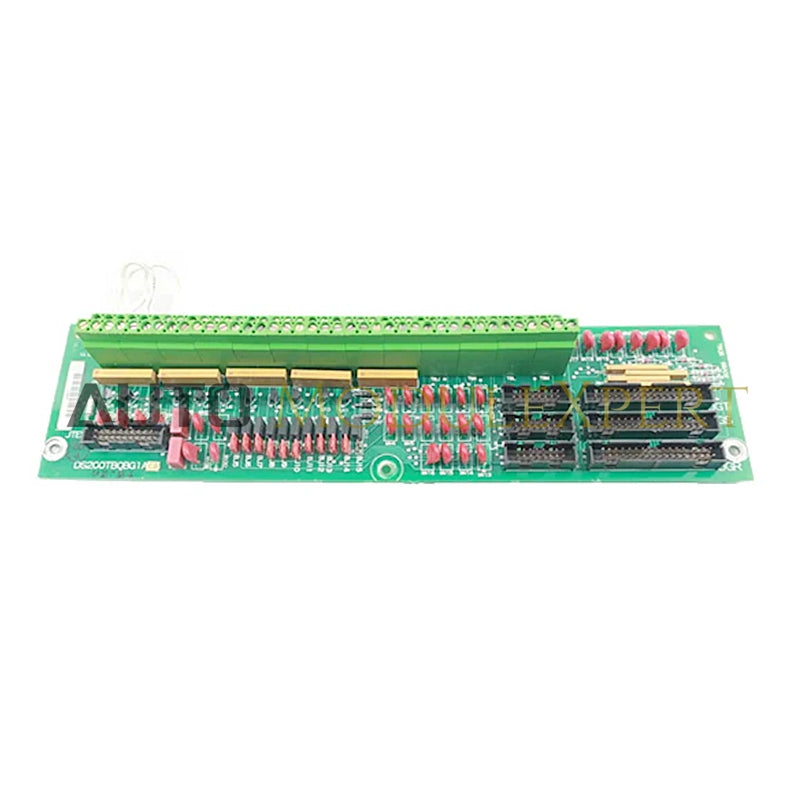

The DS200TBQBG1ACB is an Analog Termination Board designed for the GE Mark V Turbine Control System. It provides connections for signal wiring in turbine control and management systems for wind, gas, and steam turbines.
Specifications
- Part Number: DS200TBQBG1ACB
- Module Type: Analog Termination Board
- Series: Mark V
-
Terminals:
- 2 terminal blocks, each with 77 terminals for signal wiring
- 15 jumpers (BJ1-BJ15 labels) for configuration
- 3 34-pin connectors, 3 16-pin connectors
-
Connectors:
- JGQ TCQA Board Various Signals Connector
- JHR TCQC Board Pulse Rate and Detection Signals Connector
- JGS/T and JHS/T Connectors (vestigial)
-
Hardware:
- Copper signal wire connections
Installation Tips
- Tools Needed: Screwdriver
-
Procedure:
- Label signal wires with terminal IDs before removing from the original board
- Use terminal block IDs (e.g., TB1 66) for accurate wiring on the replacement board
- Insert copper wire into terminals and tighten screws to secure connections
