Overview

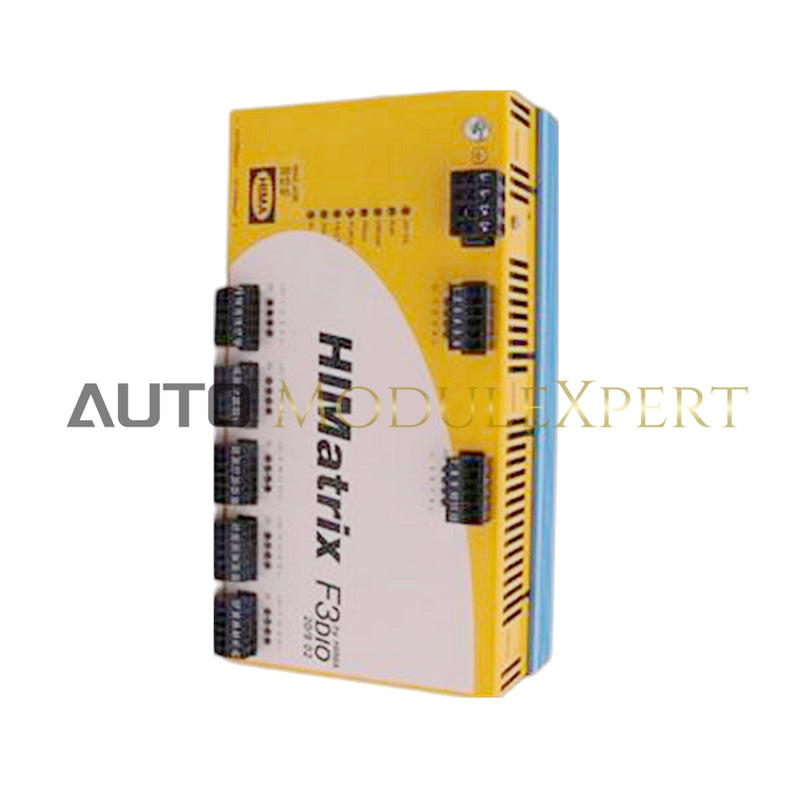

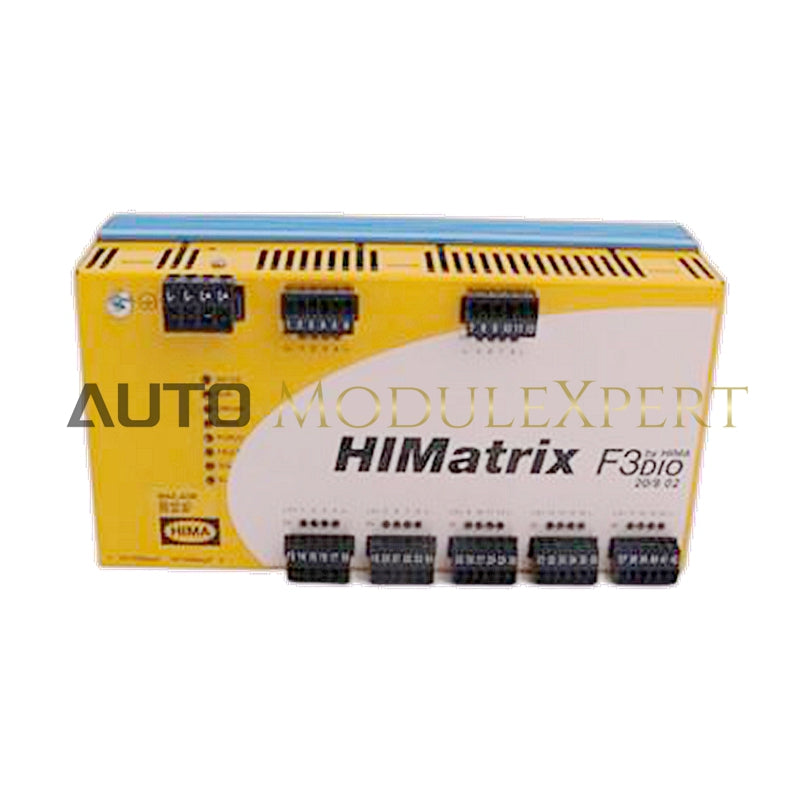

The F3 DIO 20/8 02 is a safety-related remote I/O system housed in a compact metal enclosure. It features 20 digital inputs and 8 digital outputs, designed for reliable performance in safety-critical applications.
Features
- Response Time: ≥ 10 ms
- Ethernet Interfaces: 2 x RJ-45, 10BASE-T/100BASE-Tx with integrated switch
- Operating Voltage: 24 VDC, -15...+20 %, rPP ≤ 15 % from a power supply unit with safe insulation in accordance with IEC 61131-2
- Current Input: Max. 8 A (with maximum load)
- Idle Current: Approx. 0.4 A at 24 V
- Fuse (External): 10 A time-lag (T)
- Operating Temperature: 0...+60 °C
- Storage Temperature: -40...+85 °C
- Type of Protection: IP20
-
Max. Dimensions:
- Width: 207 mm (with housing screws)
- Height: 114 mm (with fixing bolt)
- Depth: 66 mm (with earthing screw)
- Weight: Approx. 1 kg
Technical Specifications
Digital Inputs
- Number of Inputs: 20 (non-galvanically separated)
-
High Level:
- Voltage: 15...30 VDC
- Current Input: ≥ 2 mA at 15 V
-
Low Level:
- Voltage: Max. 5 VDC
- Current Input: Max. 1.5 mA (1 mA at 5 V)
- Switching Point: Typ. 7.5 V
- Supply: 5 x 20 V / 100 mA (at 24 V), short-circuit-proof
Digital Outputs
- Number of Outputs: 8 (non-galvanically separated)
- Output Voltage: ≥ L+ minus 2 V
-
Output Current:
- Channels 1, 2, 3, and 5, 6, 7: 0.5 A up to 60 °C
- Channels 4 and 8: Output current depends on ambient temperature:
- < 50 °C: 2 A
- 50…60 °C: 1 A
- Minimum Load: 2 mA for each channel
- Internal Voltage Drop: Max. 2 V at 2 A
- Leakage Current: Max. 1 mA at 2 V
- Behavior Upon Overload: The affected output is switched off and cyclically switched on again
- Total Output Current: Max. 7 A; upon overload, all outputs are switched off and cyclically switched on again
Certifications
- CE: EMC, ATEX Zone 2
- TÜV: IEC 61508 1-7:2000 up to SIL 3
- IEC 61511: 2004
- EN ISO 13849-1: 2008 up to Cat. 4 and PL e
- UL: Underwriters Laboratories Inc.
- ANSI/UL 508, NFPA 70 – Industrial Control Equipment
- CSA C22.2 No.142
- UL 1998: Software Programmable Components
- NFPA 79: Electrical Standard for Industrial Machinery
- IEC 61508
- FM Approvals: Class I, DIV 2, Groups A, B, C, and D
-
TÜV CENELEC Railway Applications:
- EN 50126: 1999 up to SIL 4
- EN 50128: 2001 up to SIL 4
- EN 50129: 2003 up to SIL 4
