Overview

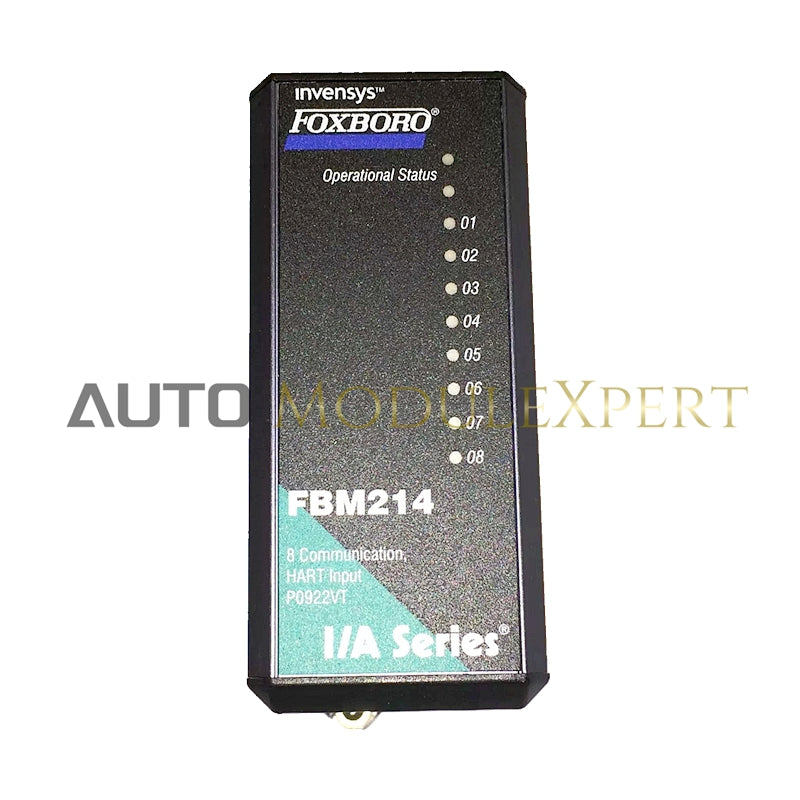

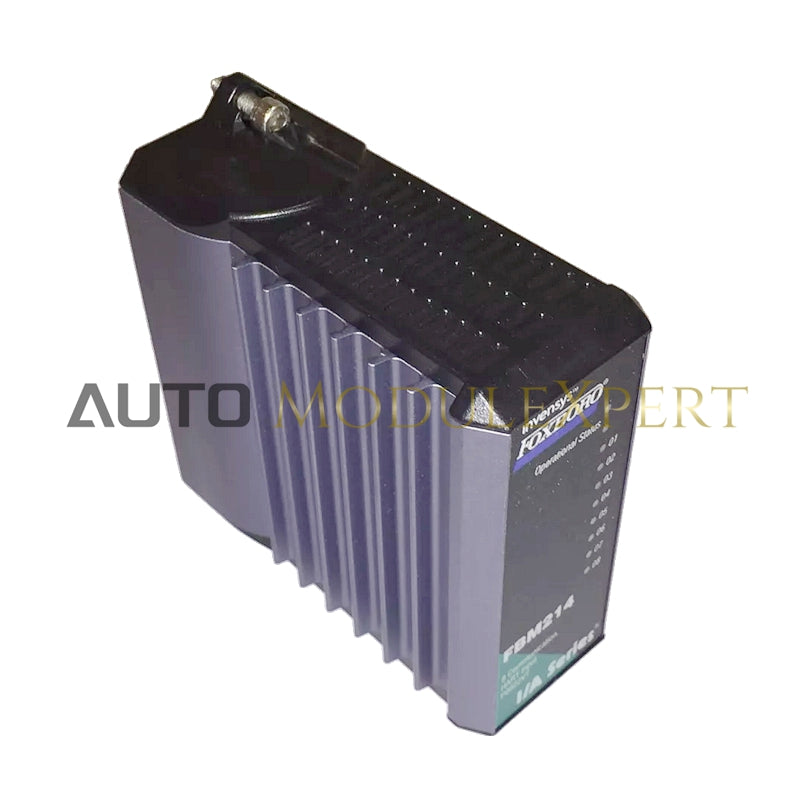

FBM214 is a HART Communication Input Interface Module designed to communicate with field devices in industrial systems.
Specifications
- Field Device Channels: 8 group-isolated channels
- Protocol: HART v6
- Communication: Point-to-point, master/slave, 1200 baud, half-duplex
- Error Checking: Parity and CRC check byte
- Speed: 2 messages per second
- Max Distance: 3030 m (10000 ft)
- Input Resistance: 280 Ω minimum
- Accuracy: ±0.03% of full scale
- Resolution: 15 bits
- Update Rate: 100 ms
Environmental Conditions
- Operating Temp: -20 to +70°C (-4 to +158°F)
- Storage Temp: -40 to +70°C (-40 to +158°F)
- Humidity: 5 to 95% (non-condensing)
- Altitude: Up to 3,000 m (10,000 ft) operating, up to 12,000 m (40,000 ft) storage
Power and Requirements
- Input Voltage: 24 V DC ±5%
- Power Consumption: 7 W (max)
- Heat Dissipation: 4 W (max)
Physical Characteristics
- Module Weight: 284 g (10 oz)
-
Termination Assembly Weight:
- Compression: 181 g (0.40 lb)
- Ring Lug: 249 g (0.55 lb)
-
Dimensions:
- Height: 102 mm (4 in)
- Width: 45 mm (1.75 in)
- Depth: 104 mm (4.11 in)
