Overview

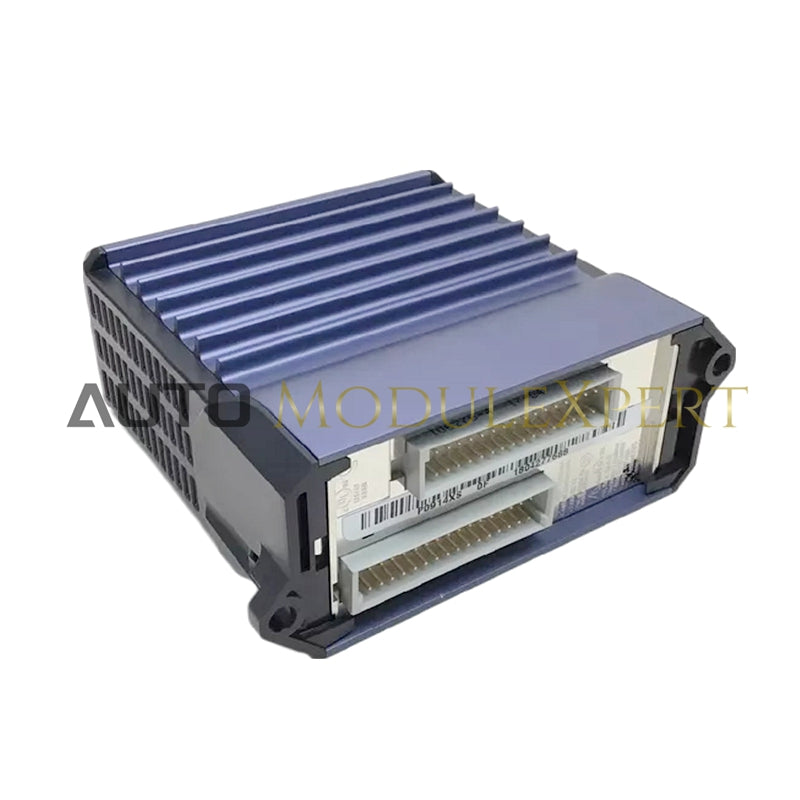

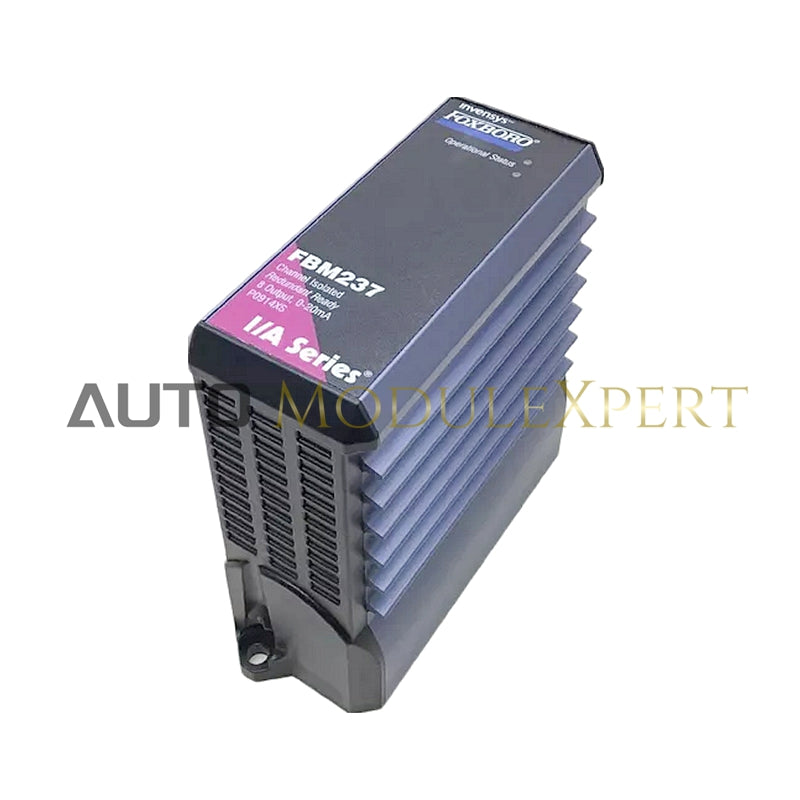

Foxboro FBM237 P0914XS is an output module with eight 20 mA DC analog output channels, each isolated and independent, designed for precise signal output with HART® compatibility.
Specifications
- Output Channels: 8 independent, isolated 20 mA DC analog channels
-
Accuracy: ±0.05% of Span (between 0.1 mA and 20 mA)
- Temperature Coefficient: ±50 ppm/°C
- Output Load: 750 Ω maximum
- Delay: 30 ms maximum
- Output Range: 0 to 20.4 mA DC
- Resolution: 13 bits
- Cabling Distance: Varies based on compliance voltage, wire gauge, and voltage drop
- HART® Compatibility: Compatible with HART High Impedance Device
- Power Protection: Galvanically isolated, current limited, voltage regulated
- Isolation: Galvanic isolation from all other channels and earth; withstands 600 V AC for 1 minute
Power
- Input Voltage Range (Redundant): 24 V DC ±5%, -10%
- Consumption: 7 W (maximum) at 24 V DC
- Heat Dissipation: 5 W (maximum) at 24 V DC
Environmental
-
Operating Temperature:
- Module: -20 to +70°C (-4 to +158°F)
- Termination Assembly (PVC): -20 to +50°C (-4 to +122°F)
- Termination Assembly (PA): -20 to +70°C (-4 to +158°F)
- Humidity: 5 to 95% (non-condensing)
- Altitude: -300 to +3000 m (-1000 to +10,000 ft)
- Storage Temperature: -40 to +70°C (-40 to +158°F)
- Storage Altitude: -300 to +12,000 m (-1000 to +40,000 ft)
- Contamination: Class G3 (Harsh) environments
- Vibration: 7.5 m/s² (5 to 500 Hz)
Physical
-
Weight:
- Module: 284 g (10 oz)
- Compression Termination Assembly: 181 g (0.40 lb)
- Ring Lug Termination Assembly: 249 g (0.55 lb)
-
Dimensions (Module):
- Height: 102 mm (4 in), 114 mm (4.5 in including mounting lugs)
- Width: 45 mm (1.75 in)
- Depth: 104 mm (4.11 in)
Part Numbers
- FBM237 Module: P0914XS
Cables
- Length: Up to 30 m (98 ft)
- Materials: Polyurethane or Low Smoke Zero Halogen (LSZH)
- Cable Type: Type 1
- Connection: 25-pin male D-subminiature
Construction
- Termination Assembly Material: Polypropylene (PVC), Polyamide (PA), PVC ring lug
- Terminal Blocks: Outputs - 3 tiers, 8 positions
- Output Bypass Jacks: 8 (P0917QZ)
