Overview

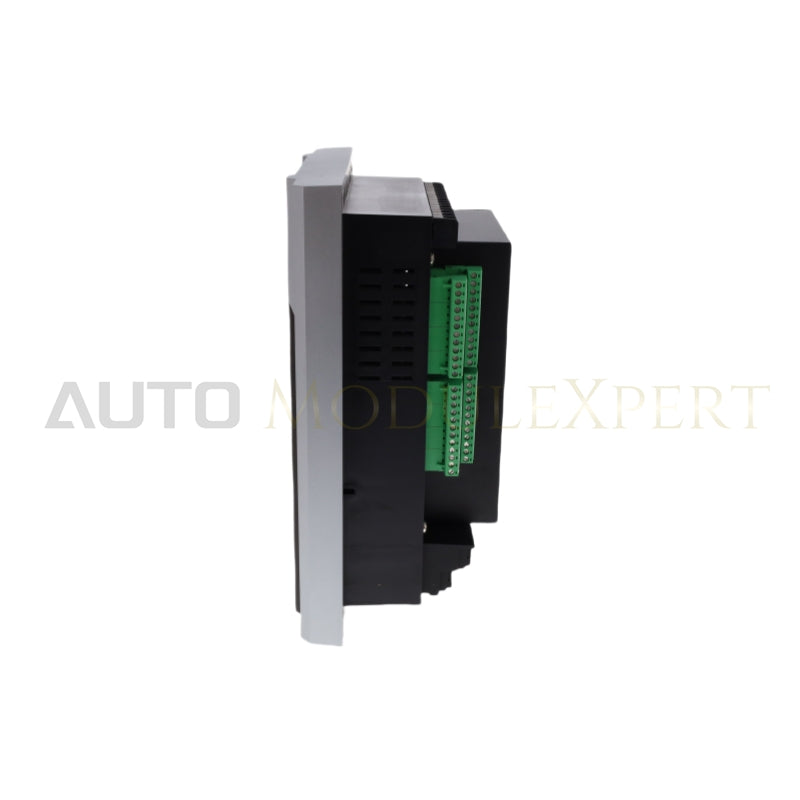

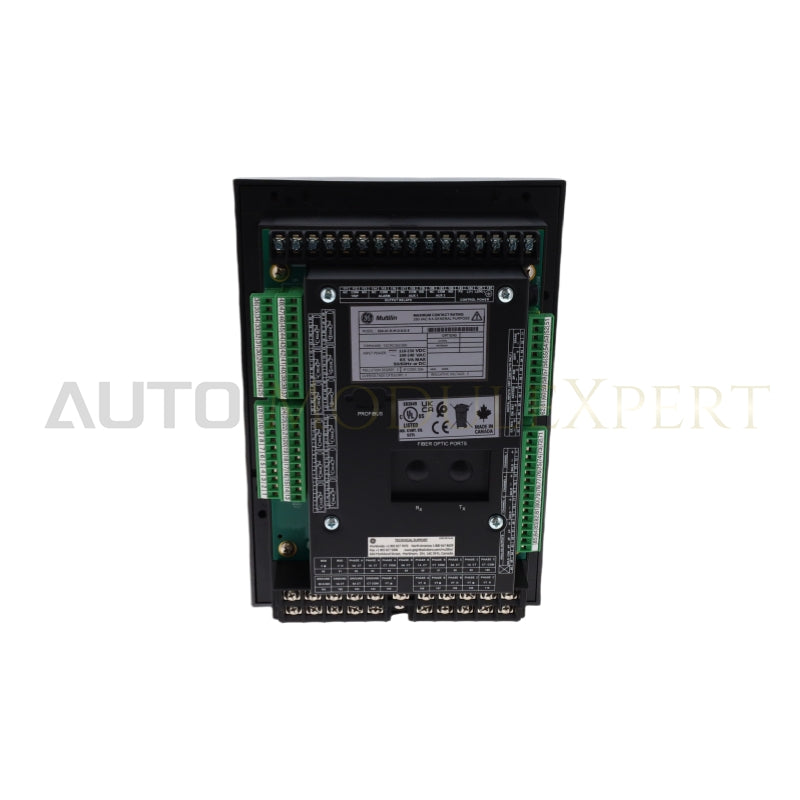

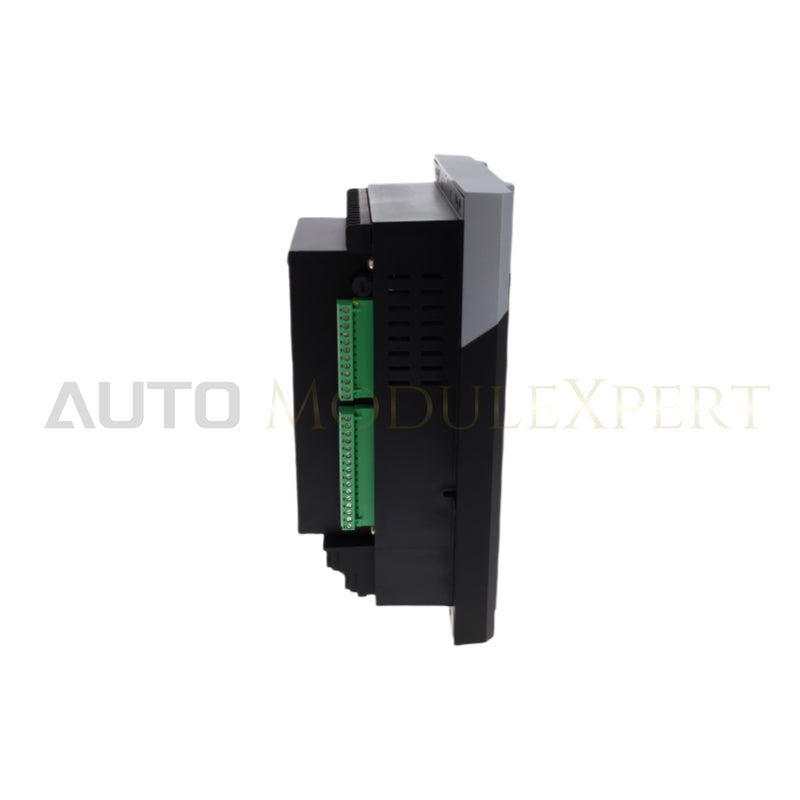

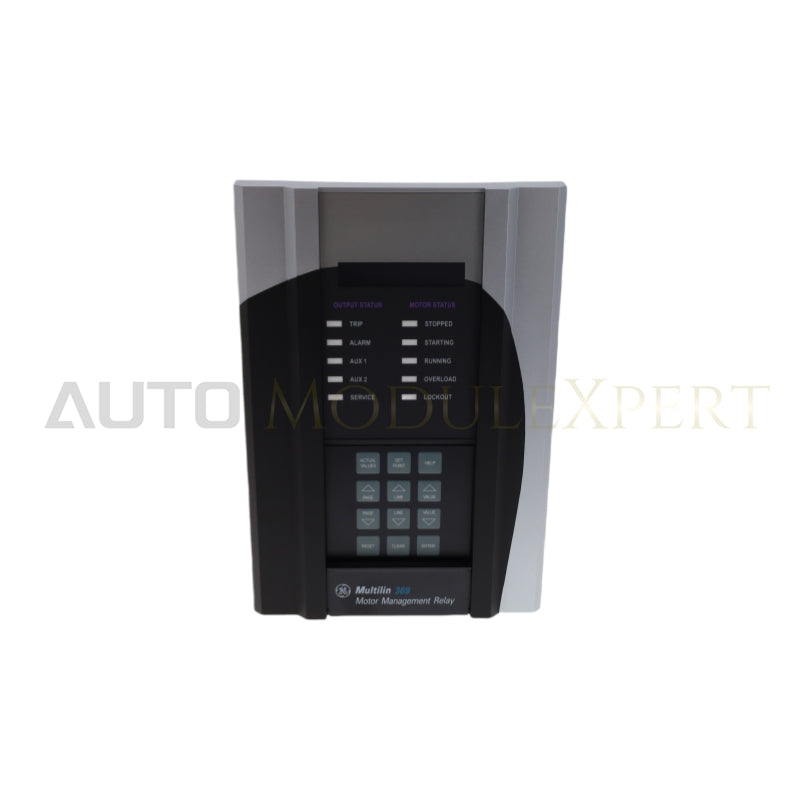

The 369 Motor Management Relay is an advanced digital relay designed to protect and monitor three-phase motors and their related mechanical systems. One of its standout features is the ability to "learn" specific motor parameters and adapt to individual applications. By analyzing values like motor inrush current, cooling rates, and acceleration time, the 369 Relay enhances its protective functions, offering tailored and efficient motor protection.Specifications
CONTROL POWER-
LO Range:
- DC: 20 to 60 V DC
- AC: 20 to 48 V AC at 50/60 Hz
-
HI Range:
- DC: 50 to 300 V DC
- AC: 60 to 265 V AC at 50/60 Hz
-
Power:
- Nominal: 20 VA
- Maximum: 65 VA
-
Holdup:
- Non-failsafe trip: 200 ms
- Failsafe trip: 100 ms
- Type: T 3.15 A H 250 V (5 × 20 mm)
- Specifications: Timelag high breaking capacity
- CT Input (Rated): 1 A and 5 A secondary
- CT Primary: 1 to 5000 A
-
Range:
- For 50/60 Hz nominal frequency: 0.05 to 20 × CT primary amps
- For variable frequency: 0.1 to 20 × CT primary amps
- Full Scale: 20 × CT primary amps or 65535 A maximum
- Frequency: 20 to 100 Hz
- Conversion: True RMS, 1.04 ms/sample
-
Accuracy:
-
At ≤ 2 × CT:
- ±0.5% of 2 × CT for 50/60 Hz nominal frequency
- ±1.0% of 2 × CT for variable frequency (for sinusoidal waveforms)
-
At > 2 × CT:
- ±1.0% of 20 × CT for 50/60 Hz nominal frequency
- ±3.0% of 12 × CT or less for variable frequency (for sinusoidal waveforms)
-
At ≤ 2 × CT:
- Inputs: 6 optically isolated
- Input Type: Dry Contact (< 800 Ω)
- Function: Programmable
- CT Input (Rated): 1 A/5 A secondary and 50:0.025
- CT Primary: 1 to 5000 A (1 A/5 A)
-
Range:
- 0.1 to 1.0 × CT primary (1 A/5 A)
- 0.05 to 25.0 A (50:0.025)
-
Full Scale:
- 1.0 × CT primary (1 A/5 A)
- 25 A (50:0.025)
- Frequency: 20 to 100 Hz
- Conversion: True RMS 1.04 ms/sample
-
Accuracy at 50/60 Hz:
- For 1 A/5 A: ±1.0% of full scale (1 A/5 A)
- For 50:0.025: ±0.07 A at <1 A, ±0.20 A at <25 A
-
Accuracy at Variable Frequency:
-
For 1 A Tap:
- ±1.5% for 40 to 100 Hz
- ±2.5% for 20 to 39 Hz
-
For 5 A Tap:
- ±2% for 40 to 100 Hz
- ±3% for 20 to 39 Hz
-
For 50:0.025:
- ±0.2 A at <1 A
- ±0.6 A at <25 A
-
For 1 A Tap:
- VT Ratio: 1.00 to 240.00:1 in steps of 0.01
- VT Secondary: 240 V AC (full scale)
- Range: 0.05 to 1.00 × full scale
- Frequency: 20 to 100 Hz
- Conversion: True RMS 1.04 ms/sample
-
Accuracy:
- ±2.5% of full scale for ≤ 200 V at 20 to 39 Hz
- ±1% of full scale for 12 to 240 V at > 40 Hz
- Burden: >200 kΩ
- Max. Continuous: 280 V AC
- Frequency: 1 to 120 Hz
- Dynamic BSD Range: 20 mV to 480 V RMS
- Accuracy: ±0.02 Hz
- Burden: >200 kΩ
- Wire Type: 3 wire
- Sensor Type: 100 Ω platinum (DIN 43760), 100 Ω nickel, 120 Ω nickel, 10 Ω copper
- RTD Sensing Current: 3 mA
- Range: –40 to 200°C or –40 to 392°F
- Accuracy: ±2°C or ±4°F
- Lead Resistance: 25 Ω max. per lead for Pt and Ni type; 3 Ω max. per lead for Cu type
- Isolation: 36 Vpk
- Operating Range: –40°C to +60°C
- Storage Range: –40°C to +80°C
-
T-Code Rating: T4A (for MOD 502 only)
-
Note: For 369 units with the Profibus, Modbus/TCP, or DeviceNet option:
- Operating Range: +5°C to +60°C
- Storage Range: +5°C to +80°C
-
Note: For 369 units with the Profibus, Modbus/TCP, or DeviceNet option:
- Specification: Up to 95% non-condensing
- Protection: IP50
