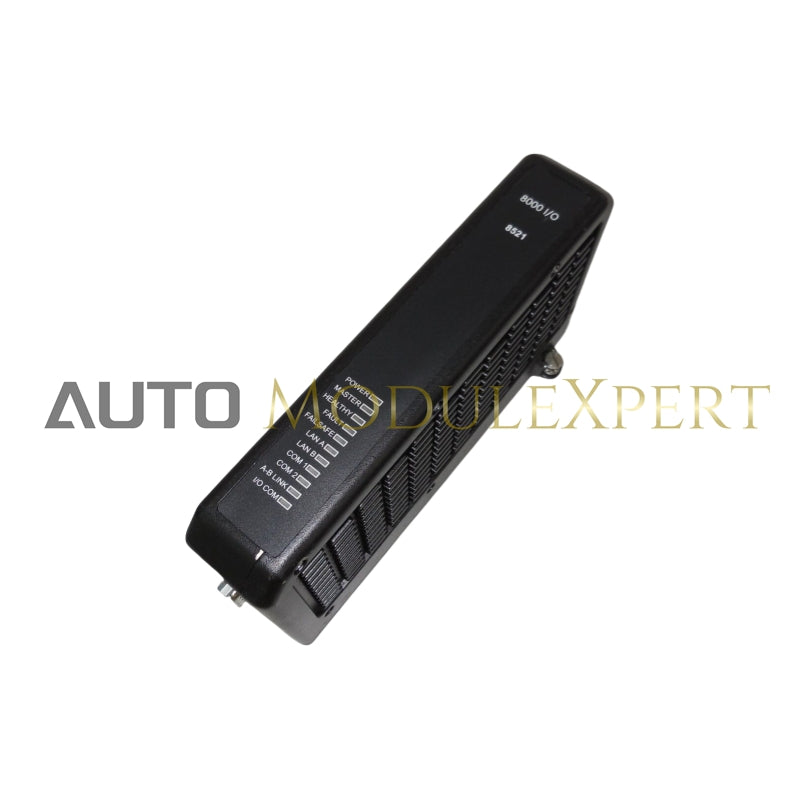

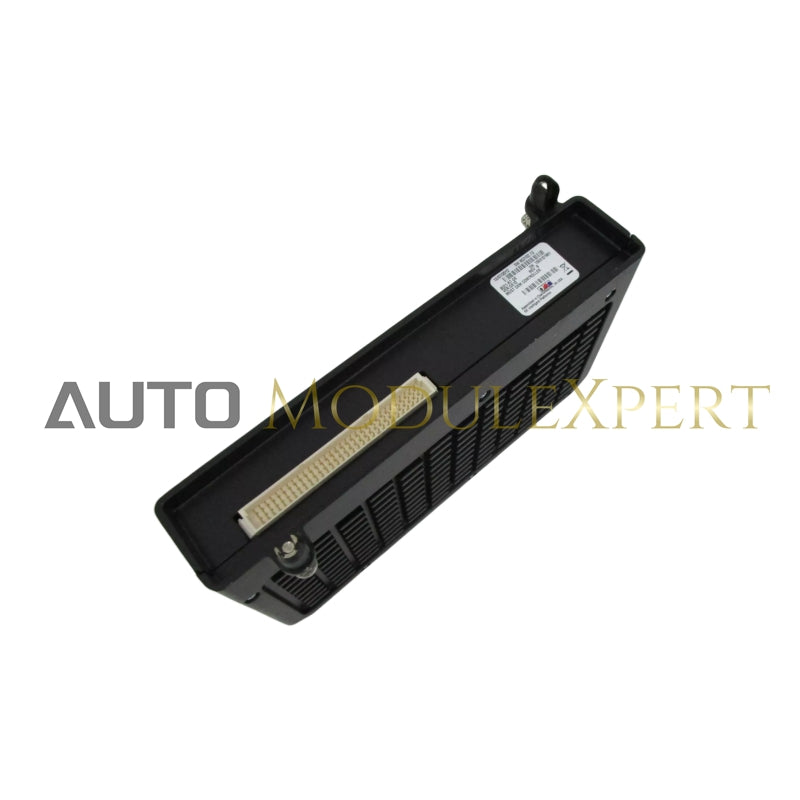

PAC8000 RTU Controller Overview
The PAC8000 RTU Controller is part of the versatile PAC8000 family, which includes various controllers such as the Process Controller (DCS-style), Logic Controller (PLC-style), and a Hybrid Controller that combines both. It also offers a SIL 2 SafetyNet Controller and an RTU Controller that supports DNP3 communication. Below are the key specifications and features of the RTU Controller.
Key Features:
-
Lifecycle Status: Active
-
Programming Languages:
-
IEC 61131 languages:
- Ladder Diagram (LD)
- Structured Text (ST)
- Instruction List (IL)
- Sequential Function Chart (SFC)
- Function Block Diagram (FBD)
- Flow Chart
-
IEC 61131 languages:
-
LAN Communication Protocol: DNP3
-
Controller Capacity:
-
Controllers per LAN:
- 24 nodes with simplex controllers
- 12 nodes with redundant controllers
- For larger systems, contact GE.
- Modules per Controller: 64
-
Controllers per LAN:
Connectivity:
-
LAN Connections:

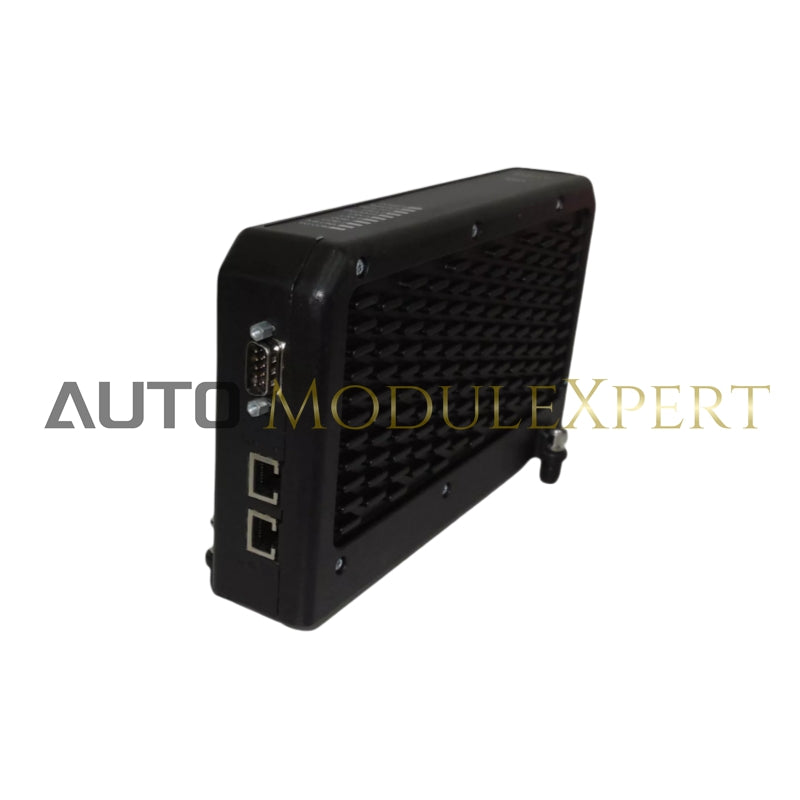

- 2 RJ45 connectors per controller
-
LAN Transmission Medium:
- 100Base TX or 10BaseT Ethernet
-
LAN Transmission Speed:
- 10 – 100 Mb/s
-
LAN Isolation:
- 1500 V dielectric withstand
Serial Connections:
- Type: One male 9-pin D-type connector on each controller
(Second female connector available on the carrier) - Transmission Medium: RS485 (half-duplex)
- Transmission Speed: 1.2 – 115 kb/s
Power Specifications:
-
Controller Power:
- Direct connection: 12 VDC (10.9 – 12.6 V), 0.4 A typical, 0.5 A max
-
System Power Consumption:
- 15 mA (max)
Physical Specifications:
- Dimensions (W x H x D): 232 x 69 x 138 mm
- Weight: 1.35 kg
