Overview

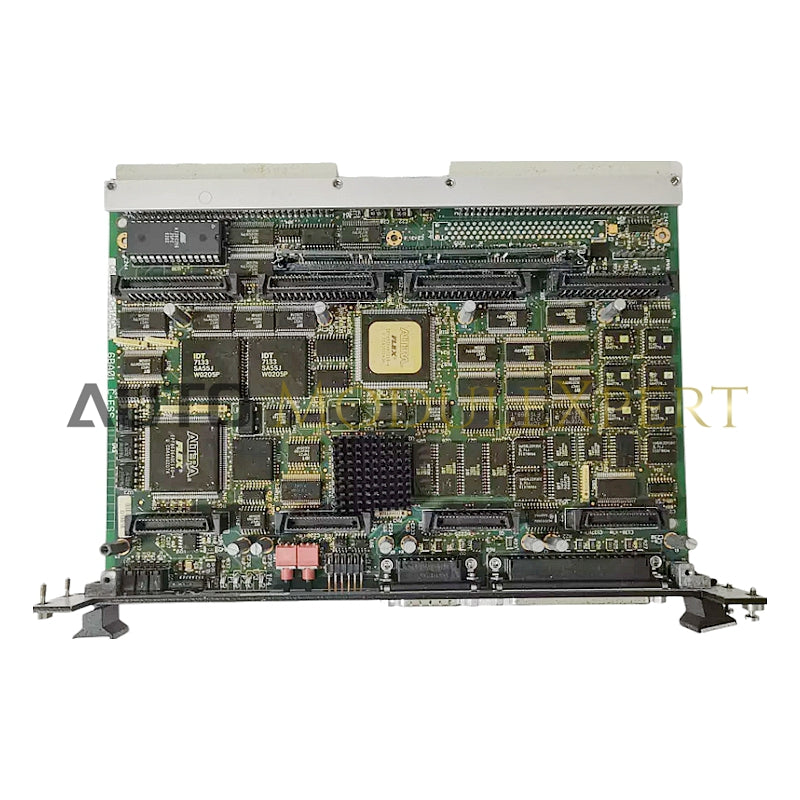

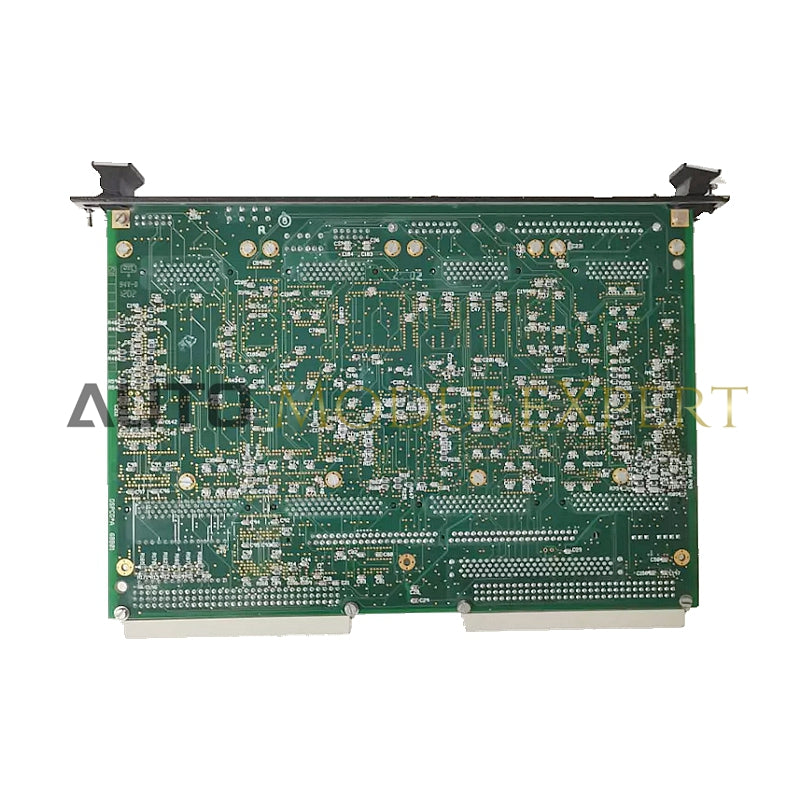

The DS200DSPCH1ADA is a Digital Signal Processor Control Board manufactured by General Electric as part of the Mark V Series, used in GE Speedtronic Control Systems. This high-performance processor board is designed for direct control of various applications, including uninterruptable power sources (UPS), active filters, and large multi-bridge power converters.
Features
- Power Requirements: +5 V DC, 6 A.
- Relay Channels: 12 channels.
- Trip Solenoid Rating: 125 V DC.
- Power Supply Voltage: 28 V DC with a voltage range of 18 - 32 V DC.
- Mounting Option: DIN-rail mounting.
- Operating Temperature: -30 to +65 degrees Celsius.
- Size: 15.9 cm high x 17.8 cm wide.
Functional Description
The DS200DSPCH1ADA serves as a master or slave device and includes its program memory and expandable local high-speed I/O for direct control signal interface without relying on the VME datapath. The board occupies one slot in a VME rack but requires two slots for one to four daughterboards.
Additional Features
- VME Bus Interface: Compatible with GE Fanuc 90/70 Programmable Logic Controllers (PLCs) and functions as an A24/D16 VME bus slave with an 8K dual-ported SRAM interface.
- Bus Master Functionality: Can initiate bus transfer cycles, including bus arbitration.
- Configurable Access: Uses a static random access memory (SRAM) based FPGA for bus access control.
- Memory Storage: Program and FPGA logic configuration data is stored in removable flash memory SIMM and EEPROM.
- Real-Time Code Updates: Facilitated through flash EPROM for downloading and updating applications.
